Battery Cell Voltage Current Tester Checker Charge Discharge Lithium Cell Grading Machine For Pouch Cell
Battery Cell Voltage Current Tester Checker Charge Discharge Lithium Cell Grading Machine For Pouch Cell
Specifications
Brand Name :
XWELL
Model Number :
XW-02
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Price :
USD3000-5000/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 PCS a month
Delivery Time :
5-20 days
Packaging Details :
Wooden box
Support battery :
AAA, AA
Applicable Industries :
Energy & Mining
Voltage Testing Range :
AC 220V ±5% 50HZ
Channels :
512
Current Range :
10A 20A 30A
Description

Battery Cell Voltage Current Tester Checker Charge Discharge Lithium Cell Grading Machine For Pouch Cell

Battery Pack Charging & Discharging Tester Machine
Lithium-ion battery charging and discharging test cabinet is a kind of equipment used to test Li-ion batteries. It can simulate various working states of lithium battery during charging and discharging, and also test and evaluate the electrical performance of the battery.

Product Advantage

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;

Structure Of Equipment

Model XW-02
Number Of Device Channels 256 channels
Overall Dimension Width 514.4mm× Depth 1684mm× Height 1840mm
Color Standard off-white or off-black (customizable)
Jig Form 65 Blue & white split clamp
Fixture Spacing 150mm Battery spacing
Support Battery Specifications Battery length: 0-180mm, width: 0-150mm, thickness: 8-15MM;
Battery tab center distance: 0-150mm
Working Power Supply Three-phase 5 wire system AC380V±10%,50HZ
Power Factor 0.99@ 220VAC, full load, grid THDu ≤2%
Current Harmonic <5%@ 220VAC, full load, grid THDu ≤2%
Power Consumption ≤15 KW
Work Environment Indoors, temperature is 10-30℃ under air convection.
Heat-Dissipating Method Air cooling

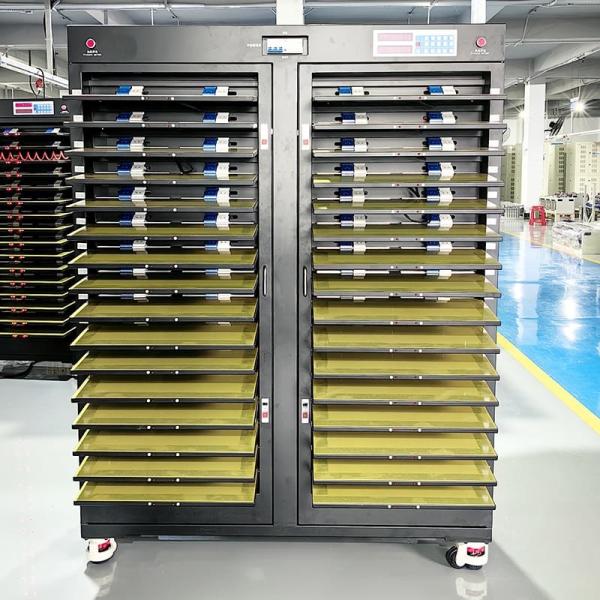

Piture:

Battery Cell Voltage Current Tester Checker Charge Discharge Lithium Cell Grading Machine For Pouch Cell
