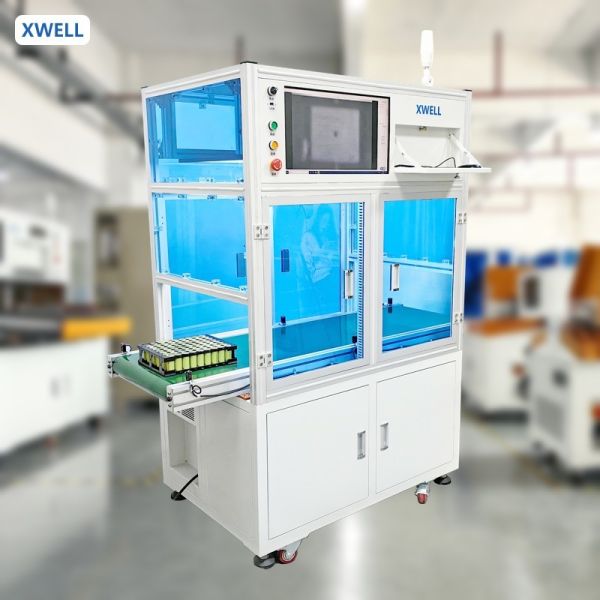

Battery Cell Testing Equipment CCD Tester
Battery Cell Testing Equipment CCD Tester
Specifications
Brand Name :
XWELL
Model Number :
XW-CCD
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Price :
USD3000-5000/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 PCS a month
Delivery Time :
5-20 days
Packaging Details :
Wooden box
Place of Origin: :
China
Warranty :
1 year
Test Speed :
0.1-500mm/min
Working Voltage :
AC 220V 50Hz~60Hz
Itinerary :
200mm
Control Method :
Computer Control
Voltage Range :
0-150V
Charge Current :
20A
Sustainable Load Power :
6KW
Data Output :
EXCEL,TXT
Test Temperature :
130C+2.0℃;( No-load test)
Minimum Air Pressure :
5.0KPa
Communication Means :
TCP/IP Protocol
Electric Axis Stroke :
≥450mm
Description

Battery Cell Testing Equipment CCD Tester

1. Function description

CCD Tester Battery Cells Positive And Negative Cylindrical Battery Pack Tester & Battery Pack Welding Testing Equipment

Main function:

For the cylindrical core, use the camera to collect the positive and negative electrode data, compare the

number of positive and negative poles with the sample, quickly compose the result (NG or OK), and mark

the NG position to confirm the positive and negative electrode before the battery pack enters the point

welding, to prevent the defects caused by the positive and negative electrode position error

2. Process flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging

Parameter

item value
Power supply AC220V/50Hz
Power 600W
Suitable for cell 14430, 14500, 18500, 18620, 21700, 26650...
Inspection size 400*300 mm, customizable
Inspection degree 360°
Inspection speed 1 s/pcs
Merchine Size L850*W80
