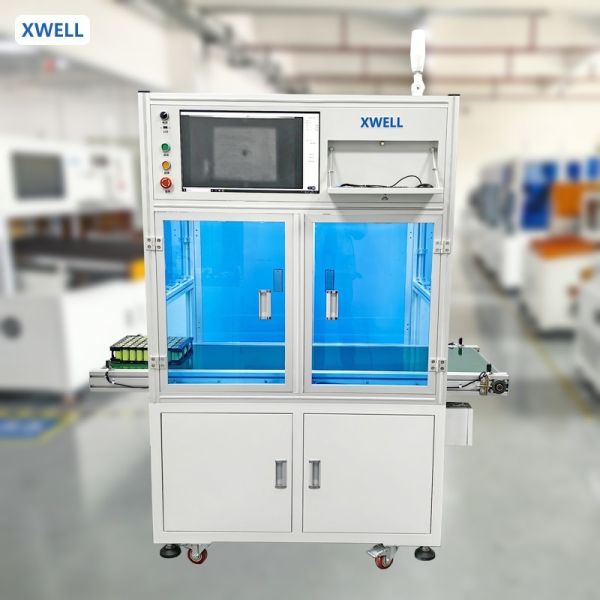

CCD Cell Polarity Inspection Machine For Battery Pack Inspection
CCD Cell Polarity Inspection Machine For Battery Pack Inspection
Specifications
Brand Name :
XWELL
Model Number :
XW-CCD
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Price :
USD3000-5000/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 PCS a month
Delivery Time :
5-20 days
Packaging Details :
Wooden box
Compliance :
CE Certified
Lead Time :
7days
Test Speed :
0.1-500mm/min
Working Voltage :
AC 220V 50Hz~60Hz
Itinerary :
200mm
Control Method :
Computer Control
Voltage Range :
0-150V
Charge Current :
20A
Sustainable Load Power :
6KW
Data Output :
EXCEL,TXT
Test Temperature :
130C+2.0℃;( No-load test)
Minimum Air Pressure :
5.0KPa
Communication Means :
TCP/IP Protocol
Electric Axis Stroke :
≥450mm
Description

CCD Cell Polarity Inspection Machine For Battery Pack Inspection

1. Function description

CCD visual inspection machine is actually a detection device that transmits the collected image signals to a dedicated image processing system through the CCD image sensor of a machine vision product, and converts the signals into digital signals based on the distribution of pixels and information such as brightness and color; the image system performs various operations on these signals, extracts the characteristics of the target, and then controls the action of the on-site equipment based on the judgment results.

CCD visual inspection equipment can replace the human eye for measurement and judgment, and is used for the production, assembly or packaging inspection of valuable equipment.

2. Process flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging

Parameter

item value
Power supply AC220V/50Hz
Power 600W
Suitable for cell 14430, 14500, 18500, 18620, 21700, 26650...
Inspection size 400*300 mm, customizable
Inspection degree 360°
Inspection speed 1 s/pcs
Merchine Size L850*W80

Details:

CCD Cell Polarity Inspection Machine For Battery Pack Inspection
