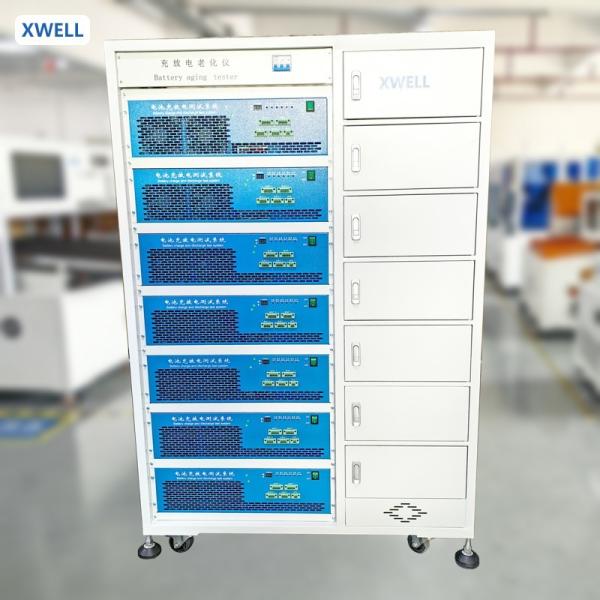

60V 10A Charge 10A Discharge Battery Pack Testing Machine
60V 10A Charge 10A Discharge Battery Pack Testing Machine
Specifications
Brand Name :
XWELL
Model Number :
BCDS70-05-10
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 2000/pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 pcs per month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Compliance :
CE Certified
Type :
Semi-Automatic
Power supply :
AC220V 50Hz
Charging Accuracy :
±(0.2% of reading +0.2% of range)
Discharge Range :
50-10000mA
Discharge Accuracy :
±(0.2% of reading +0.2% of range)
Constant Voltage Cut-off Current :
Minimum 50mA
Discharge Power :
≤700W
Inspection Time :
Real-time Collection<2S
Description

60V 10A Charge 10A Discharge Battery Pack Testing Machine

Functions

  • Battery pack cycle life test
  • Battery pack capacity test
  • Battery pack charge/discharge characteristics test
  • Battery pack temperature characteristics test

Advantages

1. Voltage and current accuracy ± (0.1%RD+0.1%FS), data recording time 5S/time, high stability.
2. The whole cabinet can hold 36 channels. Can be set for independent charging and discharging conditions after free grouping for each channel.
3. complete input and output, software and hardware protection, reverse connection protection, power failure renewal, short circuit protection, etc.
4. Channel start without inrush current, constant current to constant voltage seamlessly over, without any current surges
5. Network integrated management, a computer centralized control, support remote monitoring

Product Specification

Technical Parameter

Input Power Supply

 Measuring Range 7-70V
Accuracy ±(0.2% of reading +0.2% of range)

Current

 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S
Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge

 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge
Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times
Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
