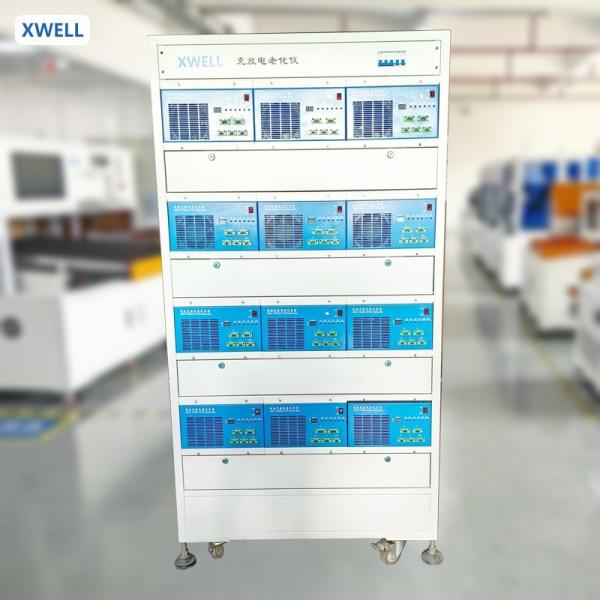

70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester
70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester
Specifications
Brand Name :
XWELL
Model Number :
BCDS70-05-10
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 2000/pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 pcs per month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Compliance :
CE Certified
Type :
Semi-Automatic
Power supply :
AC220V 50Hz
Charging Accuracy :
±(0.2% of reading +0.2% of range)
Discharge Range :
50-10000mA
Discharge Accuracy :
±(0.2% of reading +0.2% of range)
Constant Voltage Cut-off Current :
Minimum 50mA
Discharge Power :
≤700W
Inspection Time :
Real-time Collection<2S
Description

70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester

Features

*Designed for 18650,21700, 26650,32650,32700...lithium battery pack charge and discharge testing and aging after assembling.

*Suitable for: electric bicycle, swing bike, scooter, electric motorcycle, solar energy storage, large capacity energy storage, power tools battery pack

*Charging: Constant current and voltage charging

* Discharge: Constant current discharge

*Checking charging and discharging protection function

*Charging and discharging capacity recording

*Serial port and network connection function

*Computer online monitor, can manage max 254 point

*Store testing data in MYSQL, can review at any time

Product Specification

Technical Parameter

Input Power Supply

 Measuring Range 7-70V
Accuracy ±(0.2% of reading +0.2% of range)

Current

 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S
Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge

 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge
Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times
Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
