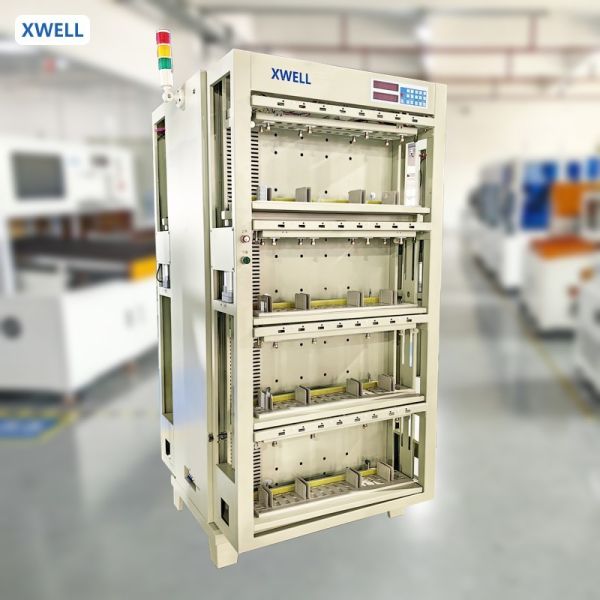

XWELL XW-5V120A32CH 32 Channel 5V 100A High Precision Prismatic Cell Grading Equipment for Laboratory Research Testing
XWELL XW-5V120A32CH 32 Channel 5V 100A High Precision Prismatic Cell Grading Equipment for Laboratory Research Testing
Specifications
Packaging Details :
Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Certification :
CE, ISO 9001:2015
Discharge Mode :
CC (Constant Current)
Cooling Method :
Forced Air Cooling with Thermal Management
Channel Voltage Range :
0-5V DC
Supply Ability :
30 Sets per Month
Charge Mode :
CC-CV (Constant Current-Constant Voltage)
Temperature Monitoring :
Per Channel NTC Sensor
Voltage Accuracy :
±0.05% FS
Power Supply :
AC 380V 50Hz 3-Phase
Channel Current Range :
0-120A DC
Number of Channels :
32 Channels
Model Number :
XW-5V100A32CH
Current Accuracy :
±0.05% FS
Communication Interface :
RS485 / Ethernet LAN
MOQ :
1 Set
Battery Type :
Prismatic Lithium-Ion Cells
Delivery Time :
20-30 working days
Brand Name :
XWELL
Place of Origin :
Guangdong, China
Price :
USD 18000-30000 / Set
Payment Terms :
T/T,L/C,Western Union
Data Recording Interval :
1 Second Minimum
Description

XWELL XW-5V120A32CH High Precision Prismatic Battery Cell Formation and Grading Equipment

The XWELL XW-5V100A32CH delivers laboratory-grade precision in a 32-channel prismatic cell formation and grading platform. With ±0.05% FS measurement accuracy, 1-second data recording, and advanced analysis tools including dQ/dV and coulombic efficiency calculation, this equipment meets the rigorous demands of battery R&D centers, quality assurance labs, and third-party testing facilities.

Key Features

  • ±0.05% FS Accuracy: Laboratory-grade voltage and current measurement precision ensures reliable prismatic cell characterization
  • 32 Channels at 100A: High-current capability with 0.1mV and 1mA measurement resolution for detailed electrochemical analysis
  • 1-Second Data Recording: High-resolution data capture for complete charge-discharge curve and dQ/dV analysis
  • Custom Multi-Step Protocols: Up to 99 programmable steps per test profile for complex research sequences
  • Advanced Analysis Tools: Built-in coulombic efficiency calculation, cycle life trending, and capacity fade analysis
  • Comprehensive Data Export: Raw data export to CSV, Excel, and MATLAB-compatible formats
  • Per-Channel NTC Sensing: Precision temperature monitoring with thermal data integration into test reports
  • Calibration Certificate: Factory calibration with traceable documentation for ISO 17025 lab compliance

Technical Specifications

Parameter Specification
Model XW-5V100A32CH
Number of Channels 32
Voltage Range 0-5V DC
Current Range 0-120A DC
Voltage Resolution 0.1mV
Current Resolution 1mA
Protocol Steps Up to 99 per Profile
Data Export Formats CSV, Excel, MATLAB
Power Supply AC 380V 50Hz 3-Phase

Applications

Designed for battery research institutes, university laboratories, EV cell manufacturer QA/QC departments, and third-party testing facilities conducting performance evaluation, cycle life testing, and safety validation of prismatic lithium-ion cells from 20Ah to 300Ah.
