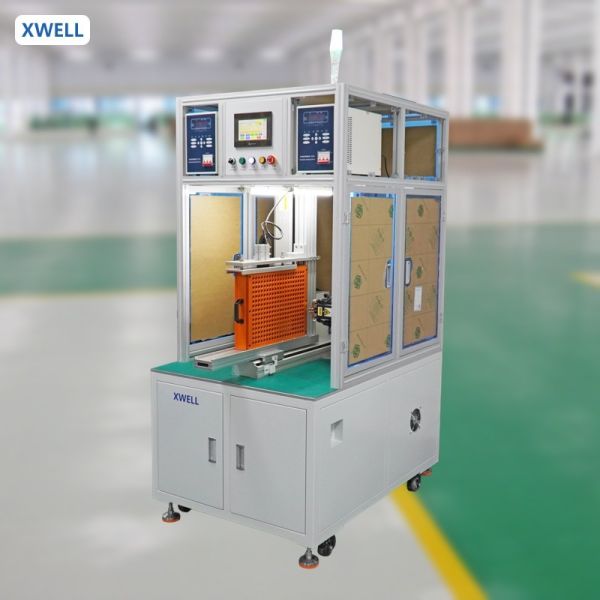

CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs
CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs
Specifications
Brand Name :
XWELL
Model Number :
MD-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 11000 - 15000 / pcs
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
100pcs per month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Compliance :
CE Certified
Payment :
L/C D/A D/P T/T Western Union
Operate System :
Embedded system
User Interface :
Touch screen
Power source :
5000A / 8000A / 10000A optional
Efficiency :
3800pcs/h
Equipment stroke :
500*350 (mm) about 760 18650 cells
Maximum load capacity :
200-400pcs(standard 18650 lithium battery)
Operating system :
embedded system + man - machine screen
Transmission mode :
step + belt + imported precision linear guide rail (optional servo + screw)
Description

CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs



Product Description

The CNC Double-Sided Spot Welding Machine provides precise and repeatable welding performance for cylindrical battery pack assembly. Featuring programmable motion control and advanced welding algorithms, it ensures uniform weld quality across large-scale production batches.

Key Features

  • CNC-controlled welding process
  • High positioning accuracy
  • Multiple welding parameter storage
  • Flexible fixture compatibility
  • Real-time welding quality monitoring
  • Low maintenance requirements

Applications

  • 18650 battery pack assembly
  • 21700 battery pack manufacturing
  • 26650 lithium battery production
  • UPS battery systems
  • Portable power station battery packs


Product Specification


SPECIFICATIONS FOR MD-ASW AND MD-ADW

MD-ASW MD-ADW
Welding Head Number
1
2
Travel
X: 400mm; Y: 400mm
Y: 500mm; Z: 350mm
Welding Spped
0.5s/spot, 2000-2500pcs/h
0.5s/spot, 3500-4000pcs/h
Welder Power Suppler
5000A Inverter Spot Welder
Max Motor Speed
1000mm/s
Max Battery Number
450 pcs (18650)
Operate System
Embedded system
User Interface
Touch screen
Drive Mode
Step motor and precision guide rail
Power Supply
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure
0.3-0.6 MPa
Machine Size
900L*900W*1750Hmm
1100L*900W*1930Hmm
Machine Weight
200kg
350kg


Product Application


MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.


Product Operation


1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).


Double side spot welder details


CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs

CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs


Cylindrical battery pack welding samples


CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs

CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs

CNC Double-Sided Spot Welding Machine for Cylindrical Battery Packs
