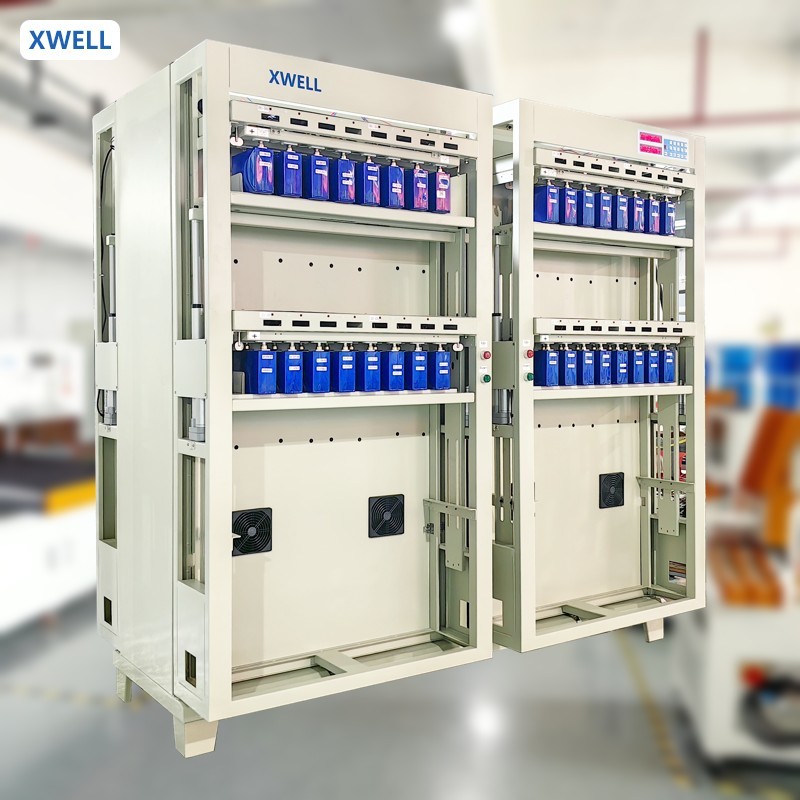

5V 100A 64 Channel Prismatic Cell Battery Grading Machine
5V 100A 64 Channel Prismatic Cell Battery Grading Machine
Specifications
Model Number :
XW-5V100A32CH
Channel Voltage Range :
0-5V DC
MOQ :
1 Set
Delivery Time :
20-30 working days
Charge Mode :
CC-CV (Constant Current-Constant Voltage)
Temperature Monitoring :
Per Channel NTC Sensor
Payment Terms :
T/T,L/C,Western Union
Voltage Accuracy :
±0.05% FS
Power Supply :
AC 380V 50Hz 3-Phase
Price :
USD 18000-30000 / Set
Discharge Mode :
CC (Constant Current)
Cooling Method :
Forced Air Cooling with Thermal Management
Certification :
CE, ISO 9001:2015
Channel Current Range :
0-100A DC
Supply Ability :
30 Sets per Month
Current Accuracy :
±0.05% FS
Communication Interface :
RS485 / Ethernet LAN
Brand Name :
XWELL
Number of Channels :
64 Channels
Place of Origin :
Guangdong, China
Battery Type :
Prismatic Lithium-Ion Cells
Packaging Details :
Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Data Recording Interval :
1 Second Minimum
Description

5V 100A 64 Channel Prismatic Cell Battery Grading Machine

Feature

1) One CPU board, the whole cabinet sends and controls uniformly.

2) There are 64 constant current plates, arranged evenly in four doors.

3) 4 bidirectional inverter power supplies, each for 8 constant current boards.

4) Two keyboard boards, front and rear double-sided operation.

5) A total of 16 pallets, the depth of the pallet is 22cm, the epoxy board is attached for insulation, each pallet has 8 channels, and the downward pressure clamp.

Technical Specifications

Parameter Specification
Model XW-5V100A64CH
Number of Channels 64
Voltage Range 0-5V DC
Current Range 0-100A DC
Data Interface RS485, Ethernet, REST API
Traceability Barcode + QR Code Support
Software Platform SQL Database
Power Supply AC 380V 50Hz 3-Phase

Applications

Designed for advanced prismatic cell manufacturing facilities implementing smart factory and Industry 4.0 standards. Ideal for EV battery production lines and energy storage cell manufacturing requiring full traceability and automated process control.
