0.02mm Positioning Battery Pack Welding Machine 18650 21700 Battery Pack Spot Welder
0.02mm Positioning Battery Pack Welding Machine 18650 21700 Battery Pack Spot Welder
Specifications
Brand Name :
XWELL
Model Number :
MD-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 6000 - 9000 / pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100pcs per month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Model :
MD-ADW
Warranty :
1 Year
Nickel welding thickness :
0.1mm-0.3mm
Positioning accuracy :
±0.02mm
Weight :
400KG
Welding current :
5000A 8000A
Power :
4000 W
Voltage :
220V/380V(AC)
Description

Automatic AA AAA Lithium Ion Battery Pack Double Sides Spot Welder Welding Machine

Application area:

The ADW5000 Manual Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply(also customize 8000A), Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...

Features:

5. Easy to change from low current to high current, suitable for precision welding.

6. Can set the upper and lower limits of the current, simply determine the quality of welding is good or not.

7. The welding current increases with the welding time to ensure the welding result.


Battery Spot Welding Machine Specification

Model No. MD-ADW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply duoble-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

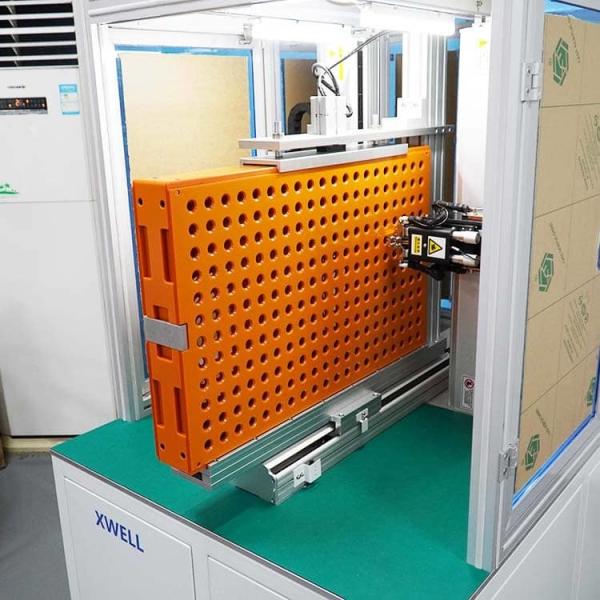

Double Side Spot Welding Machine Details:
0.02mm Positioning Battery Pack Welding Machine 18650 21700 Battery Pack Spot Welder
