Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Specifications
Place of Origin :
China
Model Number :
VCP2731B
Brand Name :
MDW, WAM
MOQ :
5 pieces
Price :
$68.00/pieces 5-29 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Delivery Time :
10-15 working days
Packaging Details :
Carton packing, 1set/carton
Application :
General, Silos, Tank
Port Size :
273mm
Warranty :
1years
Power :
Pneumatic
Temperature of Media :
Low Temperature
Structure :
Safety
Media :
Base
Customized support :
OEM
Product Name :
Pressure Relief Valve
Type :
Relief Valve, Safety Relief Valves
Model :
VCP2731B
Material :
Stainless Steel
Color :
White, Silver
Description

273mm Spring Loaded Pressure Relief Valve For Low Temperature Media In Cement Tank

Products Description

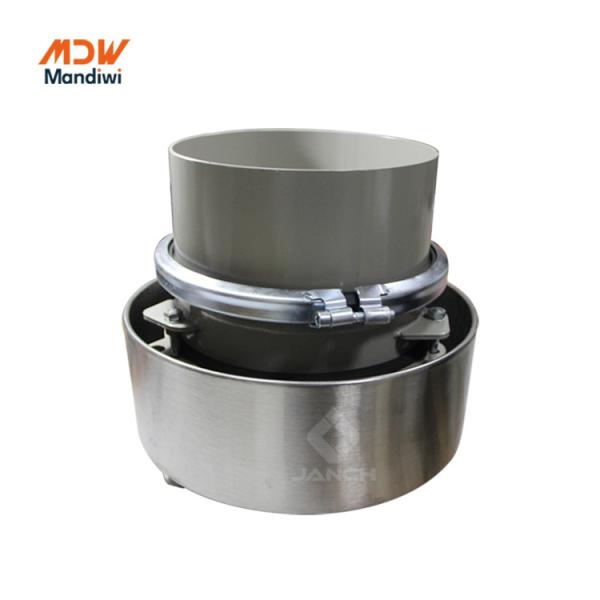

Ultimate Silo Safeguard, VCP Pressure Relief Valves

Spring-loaded pressure relief valves, cement Silo top safety valve
- Painted mild-steel or 304 stainless steel casing material
- Stainless-steel weather protection cover
- Adjustment Kit (Springs)
Features
  • Two sizes available
  • Flow rate: up to 13,000 m3/h (7,650 cfm)
  • Painted carbon steel or 304 stainless steel casing
  • Stainless steel weather protection cover
  • Mechanical set-up for inductive signalling sensor
  • Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank

Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.

Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
SIZE 273
(mm)
A
400
B
356
C
125
D
120
E
325
φF
273
NW(kg)
9.5

  • Lightweight design and reduced overall dimensions for extremely comfortable handling
  • Easy to fit
  • Quick maintenance

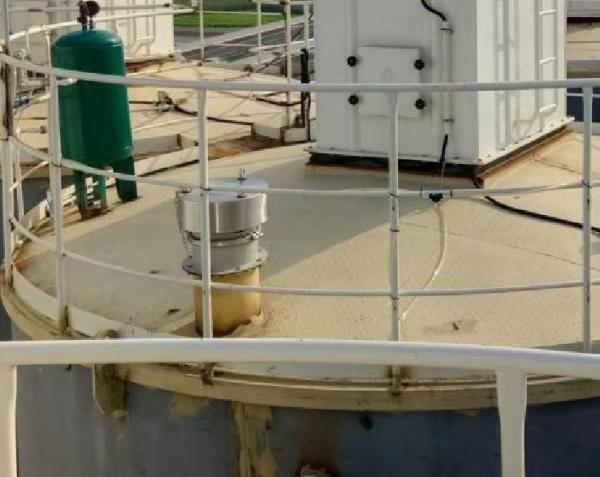

Application
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Packaging and Shipment
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Exhibition
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Company Profile
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.
After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
