Specifications
Place of Origin :
China
MOQ :
1
Price :
$55-62
Material :
Tungsten carbide, Alloy
Type/Size :
DN200/230/260
Carbide thickness :
15+5mm / 15mm
Carbide hardness :
HRA ≥85
Electrode hardness :
HRC ≥65
Weight DN200 :
7.92 kgs
Weight DN230 :
8.3 kgs
Weight DN260 :
8.1 kgs
MOQ :
1 piece
Delivery time :
5-15 days
Wear plate type :
Single/Double/Full Alloy
Item no. DN200 :
590654/590660
Item no. DN230 :
500012/590129
Item no. DN260 :
500008/590165
Product type :
Cutting rings
Description
Product Description

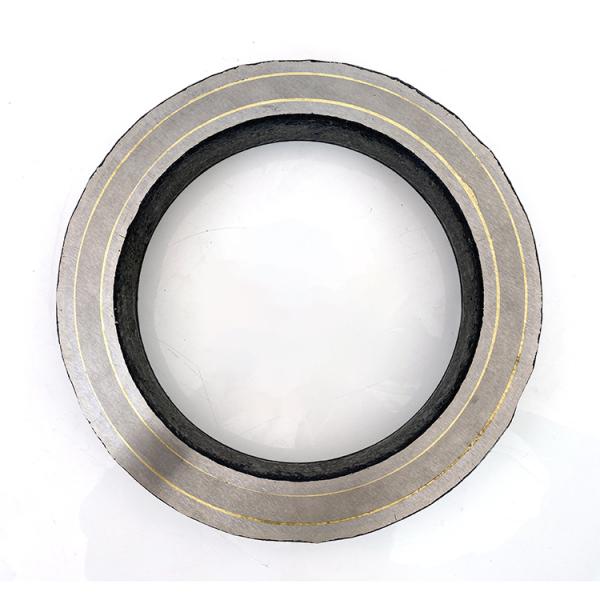

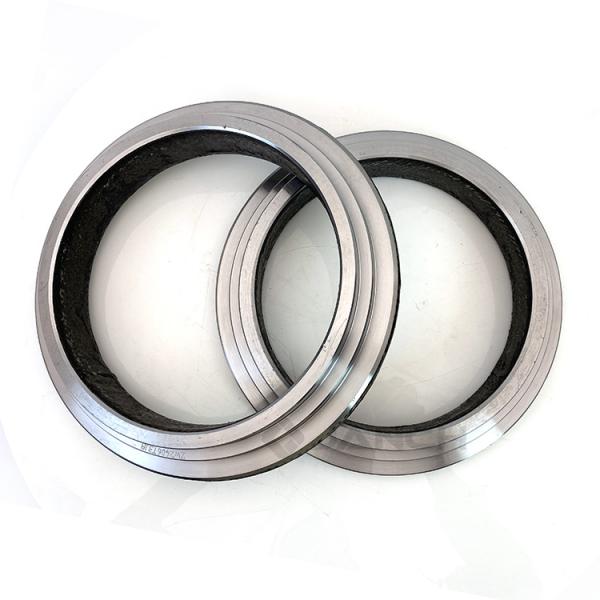

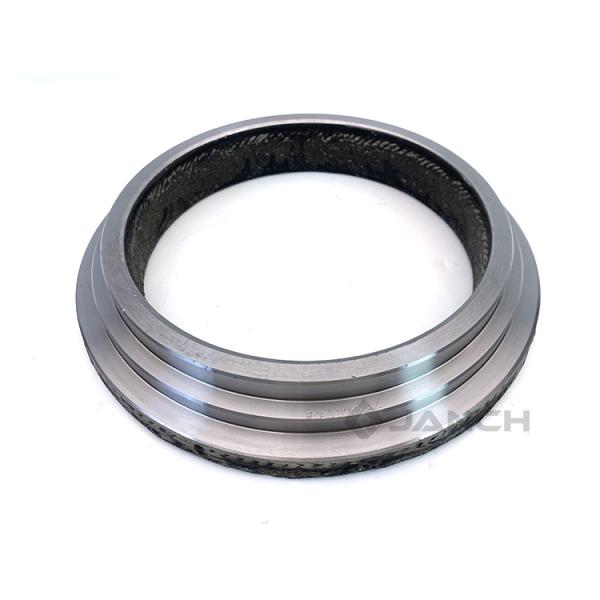

Concrete pump tungsten carbide spectacle cutting rings

Dual carbide 15+5mm / Single carbide 15mm for choices
item no./size
weight(kgs)
Material
590654/590660(200)
7.92
Carbide HRA：≥85
Electrode HRC：≥65
500012/590129(230)
8.3
Carbide HRA：≥85
Electrode HRC：≥65
500008/590165(260)
8.1
Carbide HRA：≥85
Electrode HRC：≥65

How to increase service life of concrete pump spectacle wear plate and cutting ring
When the pump is in operation, the basic causes of wear resulted due to the following 3 actions on cutting rings and spectacle plate.

1. Friction created while rubbing away on wear parts.

2. Impact stress due to intentional back pressure created for better sealing.

3. By the concrete due to the flow. To reduce the maintenance cost, we suggest to use carbide type and change wear ring position after working for a period of time.

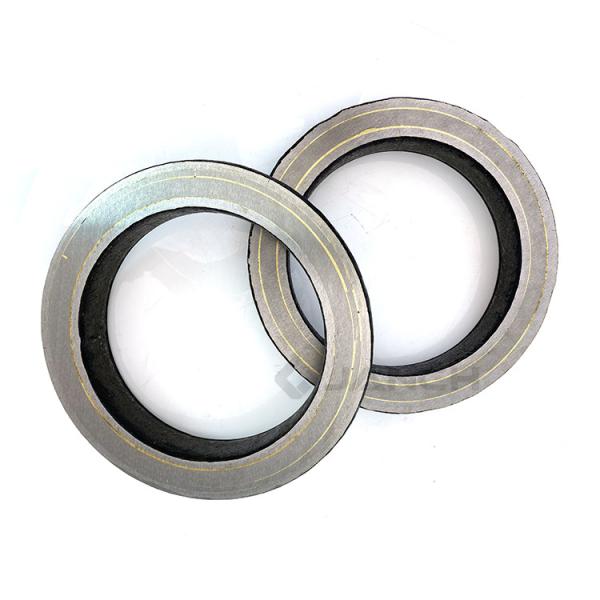

TWIN ALLOY WEAR PLATE

Single Alloy, Double Alloy, Full Alloy are available.

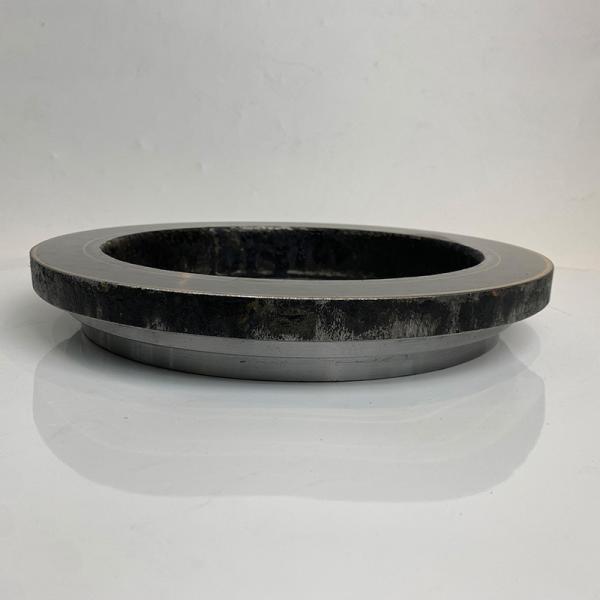

WEAR PLATE SIDE VIEW

Packing & Delivery
Company Profile
Hunan Jiancheng Technology Co., Ltd. is focusing on the R&D, manufacturing and marketing of Mechanical Components and Spare Parts for Concrete Machinery.
You can get ONE-STOP purchasing services at Jiancheng.

Our Clients
Certifications
Our Advantages
