SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Specifications
Place of Origin :
China
MOQ :
1 piece
Price :
$164-$198
Material :
Tungsten carbide, Alloy
Type/Size :
DN200/230/260
Dual carbide thickness :
15+5mm
Single carbide thickness :
15mm
Full carbide thickness :
20mm
Wear Plate weight :
20.87-24.25 kgs
Cutting Rings weight :
7.92-8.3 kgs
Carbide hardness :
HRA ≥85
Electrode hardness :
HRC ≥65
Wear Plate sizes :
200/230/260
Cutting Ring types :
Single Alloy, Twin Alloy, Full Alloy
Delivery time :
5-15 DAYS
Item No. 200 :
590653
Item No. 230 :
500011
Description
Product Description

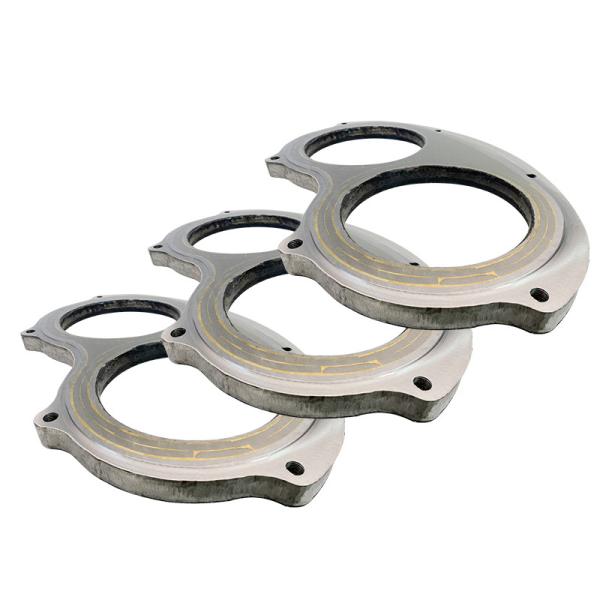

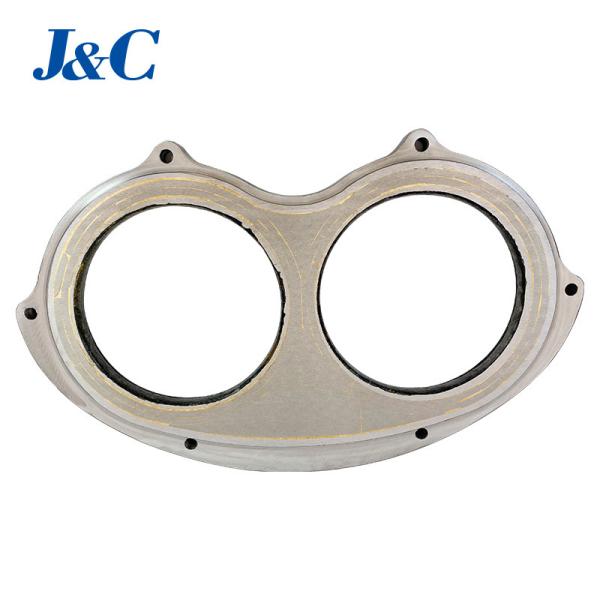

Concrete pump tungsten carbide spectacle wear plate

Dual carbide 15+5mm
Single carbide 15mm
full carbide 20mm for choices
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Desp
Item No.（Size）
Weight(kgs)
Material
Wear Plate
590653（200）
20.87
Carbide HRA：≥85
Electrode HRC：≥65
Wear Plate
500011（230）
22.5
Carbide HRA：≥85
Electrode HRC：≥65
Wear Plate
500007（260）
24.25
Carbide HRA：≥85
Electrode HRC：≥65
Cutting Rings
590654/590660(200)
7.92
Carbide HRA：≥85
Electrode HRC：≥65
Cutting Rings
500012/590129(230)
8.3
Carbide HRA：≥85
Electrode HRC：≥65
Cutting Rings
500008/590165(260)
8.1
Carbide HRA：≥85
Electrode HRC：≥65

How to increase service life of concrete pump spectacle wear plate and cutting ring ?
When the pump is in operation, the basic causes of wear resulted due to the following 3 actions on cutting rings and spectacle plate.

1. Friction created while rubbing away on wear parts.

2. Impact stress due to intentional back pressure created for better sealing.

3. By the concrete due to the flow. To reduce the maintenance cost, we suggest to use carbide type and change wear ring position after working for a period of time.


SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm

Cutting Rings

200/230/260

Cutting Ring

Single Alloy, Twin Alloy, Full Alloy
Packing & Delivery
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Company Profile
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Hunan Jiancheng Technology Co., Ltd. is focusing on the R&D, manufacturing and marketing of Mechanical Components and Spare Parts for Concrete Machinery.
You can get ONE-STOP purchasing services at Jiancheng.

SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Our Clients
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Certifications
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Our Advantages
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
