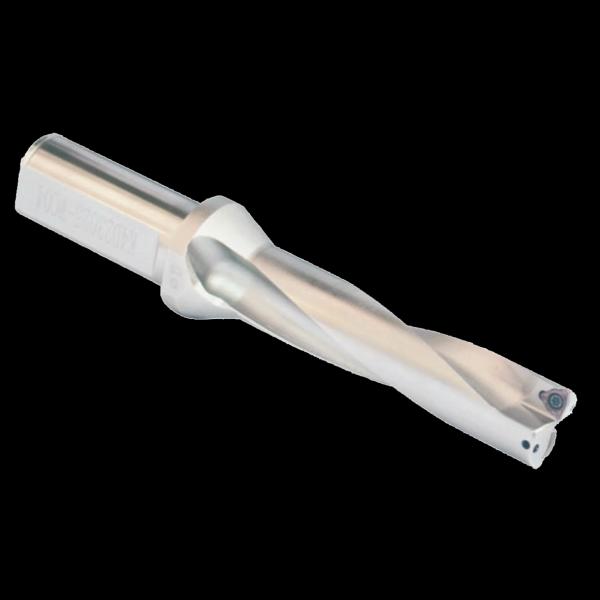

U-drill_W shaped Insert_D×5
U-drill_W shaped Insert_D×5
Specifications
Description

U-drill_W shaped Insert_D×5


Type Size
D L L1 L2 L3 d
K5D150-20-WC03 15 161 105 80 75 20
K5D160-25-WC03 16 166 110 85 80 25
K5D170-25-WC03 17 171 115 90 85 25
K5D180-25-WC03 18 176 120 95 90 25
K5D190-25-WC03 19 181 125 100 95 25
K5D200-25-WC03 20 186 130 105 100 25
K5D210-25-WC04 21 200 135 110 105 25
K5D220-25-WC04 22 205 140 115 110 25
K5D230-25-WC04 23 210 145 120 115 25
K5D240-25-WC05 24 215 150 125 120 25
K5D250-32-WC05 25 220 155 130 125 32
K5D260-32-WC05 26 225 160 135 130 32
K5D270-32-WC05 27 230 165 140 135 32
K5D280-32-WC05 28 235 170 145 140 32
K5D290-32-WC05 29 240 175 150 145 32
K5D300-32-WC05 30 245 180 155 150 32
K5D310-32-WC06 31 250 185 160 155 32
K5D320-32-WC06 32 255 190 165 160 32
K5D330-32-WC06 33 260 195 170 165 32
K5D340-32-WC06 34 265 200 175 170 32
K5D350-32-WC06 35 270 205 180 175 32
K5D360-40-WC06 36 275 210 185 180 40
K5D370-40-WC06 37 280 215 190 185 40
K5D380-40-WC06 38 285 220 195 190 40
K5D390-40-WC06 39 290 225 200 195 40
K5D400-40-WC06 40 295 230 205 200 40
K5D410-40-WC08 41 300 235 210 205 40
K5D420-40-WC08 42 305 240 215 210 40
K5D430-40-WC08 43 310 245 220 215 40
K5D440-40-WC08 44 315 250 225 220 40
K5D450-40-WC08 45 320 255 230 225 40
K5D460-40-WC08 46 325 260 235 230 40
K5D470-40-WC08 47 330 265 240 235 40
K5D480-40-WC08 48 335 270 245 240 40
K5D490-40-WC08 49 340 275 250 245 40
K5D500-40-WC08 50 345 280 255 250 40
K5D510-40-WC08 51 350 285 260 255 40
K5D520-40-WC08 52 355 290 265 260 40
K5D530-40-WC08 53 360 295 270 265 40
K5D540-40-WC08 54 365 300 275 270 40
K5D550-40-WC08 55 370 305 280 275 40
K5D560-40-WC08 56 375 310 285 280 40
K5D570-40-WC08 57 380 315 290 285 40
K5D580-40-WC08 58 385 320 295 290 40
K5D590-40-WC08 59 390 325 300 295 40
K5D600-40-WC08 60 395 330 305 300 40


Insert

Type Insert Size
IC S d1 R
U-drill_W shaped Insert_D×5 WCMXO80412 12.7 4.76 4.3 1.2
WCMXO6T308 9.5 3.97 3.7 0.8
WCMXO50308 7.94 3.18 3.2 0.8
WCMXO40208 6.35 2.38 2.8 0.8
WCMXO30208 5.56 2.38 2.55 0.8
