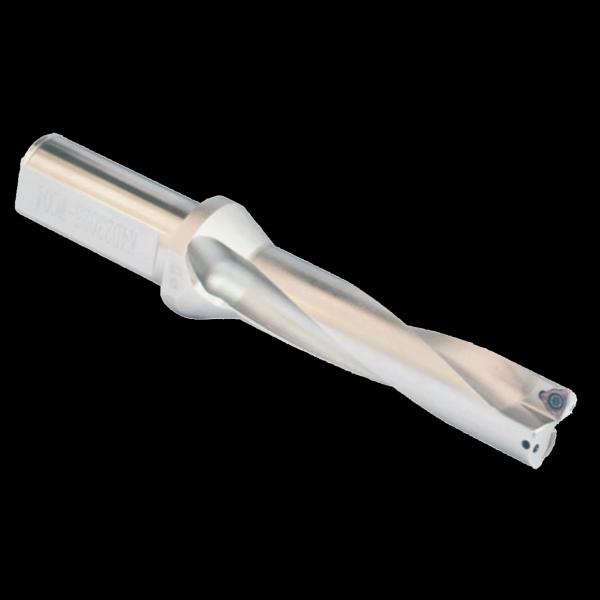

U-drill_W shaped Insert_D×3
U-drill_W shaped Insert_D×3
Specifications
Description

U-drill_W shaped Insert_D×3


Type Size
D L L1 L2 L3 d
K3D150-20-WC03 15 131 75 50 45 20
K3D155-20-WC03 15.5 132.5 76.5 51.5 46.5 20
K3D160-25-WC03 16 134 78 53 48 25
K3D165-25-WC03 16.5 135.5 79.5 54.5 49.5 25
K3D170-25-WC03 17 137 81 56 51 25
K3D175-25-WC03 17.5 138.5 82.5 57.5 52.5 25
K3D180-25-WC03 18 140 84 59 54 25
K3D185-25-WC03 18.5 141.5 85.5 60.5 55.5 25
K3D190-25-WC03 19 143 87 62 57 25
K3D195-25-WC03 19.5 144.5 88.5 63.5 58.5 25
K3D200-25-WC03 20 146 90 65 60 25
K3D205-25-WC03 20.5 147.5 91.5 66.5 61.5 25
K3D210-25-WC04 21 158 98 68 63 25
K3D215-25-WC04 21.5 159.5 99.5 69.5 64.5 25
K3D220-25-WC04 22 161 101 71 66 25
K3D225-25-WC04 22.5 162.5 102.5 72.5 67.5 25
K3D230-25-WC04 23 164 104 74 69 25
K3D235-25-WC04 23.5 165.5 105.5 75.5 70.5 25
K3D240-25-WC05 24 167 107 77 72 25
K3D245-25-WC05 24.5 168.5 108.5 78.5 73.5 25
K3D250-32-WC05 25 170 110 80 75 32
K3D255-32-WC05 25.5 171.5 111.5 81.5 76.5 32
K3D260-32-WC05 26 173 113 83 78 32
K3D265-32-WC05 26.5 174.5 114.5 84.5 79.5 32
K3D270-32-WC05 27 176 116 86 81 32
K3D275-32-WC05 27.5 177.5 117.5 87.5 82.5 32
K3D280-32-WC05 28 179 119 89 84 32
K3D285-32-WC05 28.5 180.5 120.5 90.5 85.5 32
K3D290-32-WC05 29 182 122 92 87 32
K3D295-32-WC05 29.5 183.5 123.5 93.5 88.5 32
K3D300-32-WC05 30 185 125 95 90 32
K3D305-32-WC05 30.5 186.5 126.5 96.5 91.5 32
K3D310-32-WC06 31 188 128 98 93 32
K3D315-32-WC06 31.5 189.5 129.5 99.5 94.5 32
K3D320-32-WC06 32 191 131 101 96 32
K3D325-32-WC06 32.5 192.5 132.5 102.5 97.5 32
K3D330-32-WC06 33 194 134 104 99 32
K3D335-32-WC06 33.5 195.5 135.5 105.5 100.5 32
K3D340-32-WC06 34 197 137 107 102 32
K3D345-32-WC06 34.5 198.5 138.5 108.5 103.5 32
K3D350-32-WC06 35 200 140 110 105 32
K3D355-32-WC06 35.5 201.5 141.5 111.5 106.5 32
K3D360-40-WC06 36 203 143 113 108 40
K3D365-40-WC06 36.5 204.5 144.5 114.5 109.5 40
K3D370-40-WC06 37 206 146 116 111 40
K3D375-40-WC06 37.5 207.5 147.5 117.5 112.5 40
K3D380-40-WC06 38 209 149 119 114 40
K3D385-40-WC06 38.5 210.5 150.5 120.5 115.5 40
K3D390-40-WC06 39 212 152 122 117 40
K3D395-40-WC06 39.5 213.5 153.5 123.5 118.5 40
K3D400-40-WC06 40 215 155 125 120 40
K3D410-40-WC08 41 218 158 128 123 40
K3D420-40-WC08 42 221 161 131 126 40
K3D430-40-WC08 43 239 169 134 129 40
K3D440-40-WC08 44 242 172 137 132 40
K3D450-40-WC08 45 245 175 140 135 40
K3D460-40-WC08 46 248 178 143 138 40
K3D470-40-WC08 47 251 181 146 141 40
K3D480-40-WC08 48 254 184 149 144 40
K3D490-40-WC08 49 257 187 152 147 40
K3D500-40-WC08 50 260 190 155 150 40
K3D510-40-WC08 51 263 193 158 153 40
K3D520-40-WC08 52 266 196 161 156 40
K3D530-40-WC08 53 269 199 164 159 40
K3D540-40-WC08 54 272 202 167 162 40
K3D550-40-WC08 55 275 205 170 165 40
K3D560-40-WC08 56 278 208 173 168 40
K3D570-40-WC08 57 281 211 176 171 40
K3D580-40-WC08 58 284 214 179 174 40
K3D590-40-WC08 59 287 217 182 177 40
K3D600-40-WC08 60 290 220 185 180 40
K3D610-40-WC06 61 293 223 188 183 40
K3D620-40-WC06 62 296 226 191 186 40
K3D630-40-WC06 63 299 229 194 189 40
K3D640-40-WC06 64 302 232 197 192 40
K3D650-40-WC06 65 305 235 200 195 40
K3D660-40-WC06 66 308 238 203 198 40
K3D670-40-WC06 67 311 241 206 201 40
K3D680-40-WC06 68 314 244 209 204 40
K3D690-40-WC06 69 317 247 212 207 40
K3D700-40-WC06 70 320 250 215 210 40
K3D710-40-WC06 71 323 253 218 213 40
K3D720-40-WC06 72 326 256 221 216 40
K3D730-40-WC06 73 329 259 224 219 40
K3D740-40-WC06 74 332 262 227 222 40
K3D750-40-WC06 75 335 265 230 225 40
K3D760-40-WC06 76 338 268 233 228 40
K3D770-40-WC06 77 341 271 236 231 40
K3D780-40-WC06 78 344 274 239 234 40
K3D790-40-WC06 79 347 277 242 237 40
K3D800-40-WC06 80 350 280 245 240 40
K3D810-40-WC06 81 353 283 248 243 40
K3D820-40-WC06 82 356 286 251 246 40
K3D830-40-WC06 83 359 289 254 249 40
K3D840-40-WC08 84 362 292 257 252 40
K3D850-40-WC08 85 365 295 260 255 40


Insert

Type Insert Size
IC S d1 R
U-drill_W shaped Insert_D×3 WCMXO80412 12.7 4.76 4.3 1.2
WCMXO6T308 9.5 3.97 3.7 0.8
WCMXO50308 7.94 3.18 3.2 0.8
WCMXO40208 6.35 2.38 2.8 0.8
WCMXO30208 5.56 2.38 2.55 0.8
