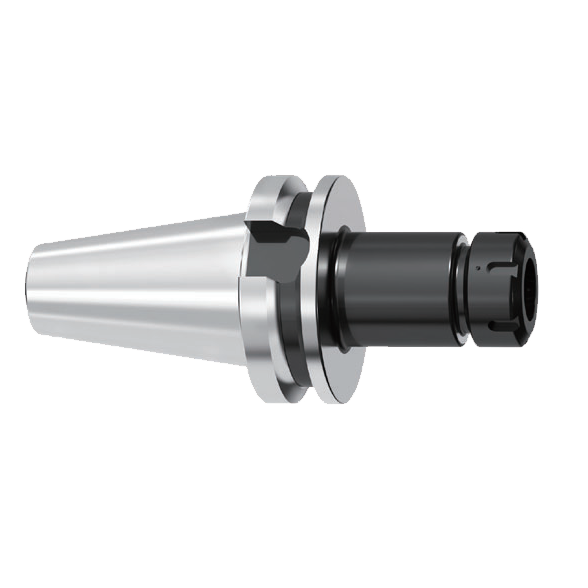

BT30-ER Collect Chuck Tool Holders
BT30-ER Collect Chuck Tool Holders
BT30-ER Collect Chuck Tool Holders
BT30-ER Collect Chuck Tool Holders
Specifications
MOQ :
5
Material :
20CrMnTi
Description
Model Taper​ D D1 D2 L M
BT30-ER11-60 30 1.0~7 19 19 60 M8x1-LH
BT30-ER11-90 30 1.0~7 19 19 90 M8x1-LH
BT30-ER11-120 30 1.0~7 19 19 120 M8x1-LH
BT30-ER16-60 30 1.0~10 28 28 60 7/16-20 UNF-LH
BT30-ER16-90 30 1.0~10 28 28 90 7/16-20 UNF-LH
BT30-ER16-120 30 1.0~10 28 28 120 7/16-20 UNF-LH
BT30-ER20-60 30 1.0~13 34 34 60 M14x1.5-LH
BT30-ER20-90 30 1.0~13 34 34 90 M14x1.5-LH
BT30-ER20-120 30 1.0~13 34 34 120 M14x1.5-LH
BT30-ER25-60 30 1.0~16 42 42 60 M18x1.5-LH
BT30-ER25-90 30 1.0~16 42 42 90 M18x1.5-LH
BT30-ER25-120 30 1.0~16 42 42 120 M18x1.5-LH
BT30-ER32-60 30 2.0~20 50 44 60 M22x1.5-LH
BT30-ER32-90 30 2.0~20 50 44 90 M22x1.5-LH
BT30-ER32-120 30 2.0~20 50 44 120 M22x1.5-LH
Features:
Compatible with ER collets for holding milling cutters, drill bits, and taps.
Usage procedure: First insert the collet into the nut, then place the tool into the collet, insert the assembly into the tool holder, and finally tighten the nut.
Must be used with the dedicated wrench; other tools are not permitted.
Note: Wrench, pull stud, and collets must be purchased separately.
Can be precision-balanced according to customer requirements:
G6.3 at 15,000 RPM​ or G2.5 at 30,000 RPM.
When ordering, please specify the standard type of tool holder.
