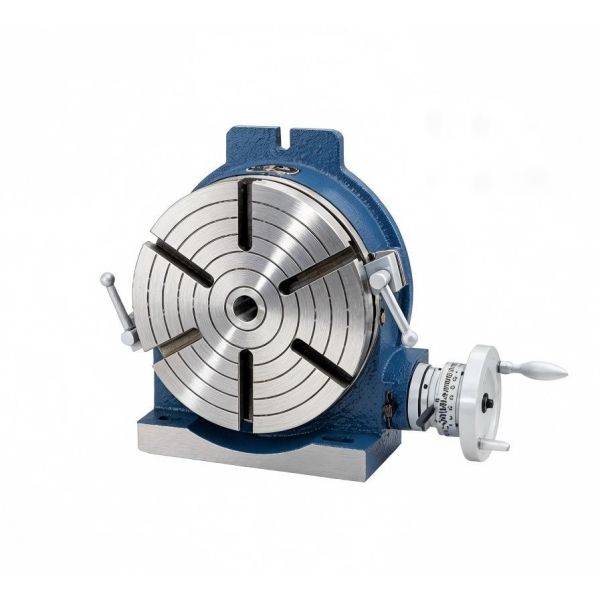

HORIZONTAL AND VERTICAL ROTARY TABLE
HORIZONTAL AND VERTICAL ROTARY TABLE
HORIZONTAL AND VERTICAL ROTARY TABLE
HORIZONTAL AND VERTICAL ROTARY TABLE
Specifications
Place of Origin :
China
MOQ :
1
Description
号
Model		 T型沟槽
T Slot
mm		 沟槽类型
Slot Type		 中心轴套
Center Sleeve		 蜗轮比
Worm gear Ratio		 立式承载力
Vertical Loading
Kg		 卧式承载力
Horizontal Loading
Kg		 重量
Weight
kg
HV-150 11 3 section MT-2 90︰1 20 39 13
HV-200 13 6 section MT-3 90︰1 44 87 29
HV-250 13 6 section MT-3 90︰1 62 123 41
HV-300 16 6 section MT-4 90︰1 98 195 65
HV-350 16 6 section MT-4 90︰1 147 294 98
HV-400 16 6 section MT-5 90︰1 195 390 130




型号
Model		 D H A B K
HV-150 150 92 220 160 18
HV-200 200 120 310 225 18
HV-250 250 120 320 280 18
HV-300 300 140 410 325 18
HV-350 350 140 460 380 18
HV-400 400 140 510 435 18
