Stainless Steel Flap Barrier Turnstile
Stainless Steel Flap Barrier Turnstile
Stainless Steel Flap Barrier Turnstile
Stainless Steel Flap Barrier Turnstile
Specifications
Brand Name :
Bester
Model Number :
BS-Y300
Certification :
CE，RoHs, ISO:9001
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
About 3-7 Days After Receiving The Deposit(Based On The Quantity)
Packaging Details :
Standard shipping package
N.W :
50KG
Channel Width :
550mm-850mm
Keyword :
Flap Barrier Gate Wing,Flap Barrier,flap gate
Material :
SS304/aluminum/acrylic/steel
color of flap :
acrylic,red,blue,green
height :
980mm,also can customized
Description

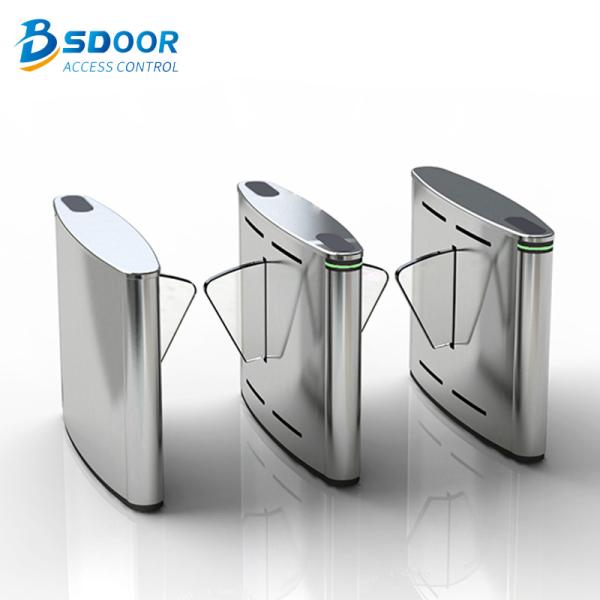

Stainless Steel Flap Barrier Turnstile

Stainless Steel Automatic Flap Barrier/Gate Turnstile/Access Control Flap Barrier Turnstile Machine

Flap barrier gate is one of the passage management equipment, mainly used for pedestrian passage management; it has the characteristics of fast opening, safety, and convenience, and is an ideal management and grooming device for high-frequency pedestrian access; it has been widely used in airports, subway stations, and stations, Docks, scenic spots, parks, student dormitories, unit pedestrian passages, etc., can cooperate with smart cards to realize off-type ticketing management system functions and form unattended management of personnel entry and exit. Basically composed of a main box and a movable wing board, it has a blocking function for unauthorized personnel
1, With the function of self-reporting failure prompt, it is convenient for users to use and maintain;
2, It has the functions of passing instructions and channel instructions;
3, Has a normally open button function
4, It has the functions of automatic opening of the swing door after power failure and automatic closing after power on;
5, With line self-check function;
6, It has an alarm function for illegal intrusion;
7, With triple anti-pinch protection function;
8, The access mode can be adjusted arbitrarily;
9, The closing time and method can be adjusted arbitrarily;

Technical Specifications:

Model BSD-Y100 BSD-Y100
Classifications Single-core mechanism Dual-core mechanism
Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)
Thickness of ply 1.3mm
Finish brushed surface, polishing surface or anti-fingerprint surface (optional);
Size (L*W*H) 1200mm*300mm*980mm (default)
Material of flap different color Acrylic flap available or Red Soft flapper optional
Stretching-out flap length 250~275mm
The inductive card reader dimension equipped with the standard mounting brackets or tailor. 　
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor DC Brush motor
Main-board voltage 12V DC
In-built Infrared 6 pairs/lane
Passing speed 30 persons/min
Passage Width 550mm
Opening / closing time 0.6 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 10 seconds
Mean time to failure min. 5 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet
Warranty

12 months

Extend Functions

The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)

Stainless Steel Flap Barrier Turnstile
