Specifications
Brand Name :
Ironman
Model Number :
IM.XS.05
Certification :
ISO9001;CE;FCC
Place of Origin :
China
MOQ :
1unit
Price :
negotiation
Payment Terms :
T/T,L/C
Supply Ability :
800-1000 pcs/month
Delivery Time :
7-10 working days after payment
Packaging Details :
carton/wooden case
Dimensions: :
1500*120*980mm
Channel Width: :
≤1100mm
Turnstile Body: :
1.2mm SPCC
Driving Motor: :
DC brushless motor(24~36VDC)
MCBF: :
more than 8 million times
Description

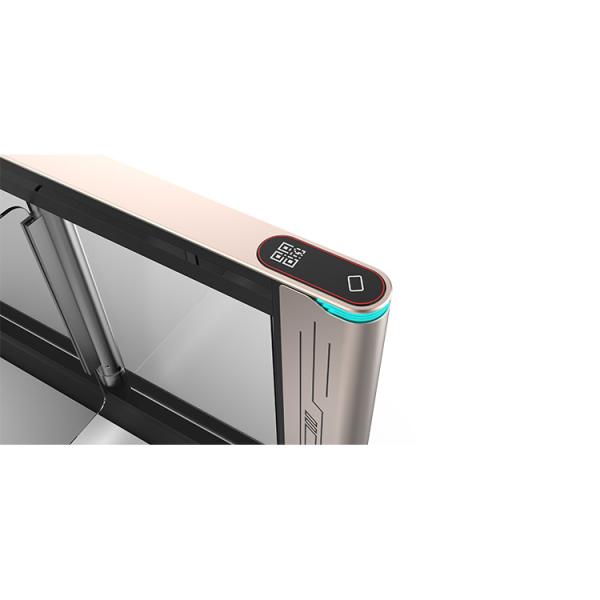

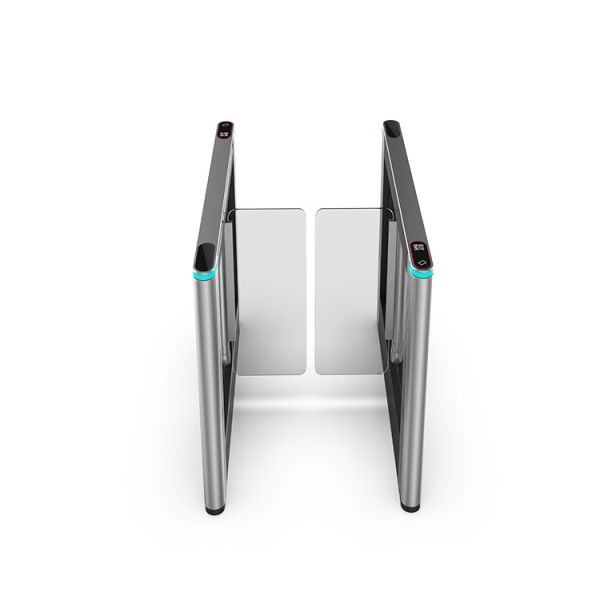

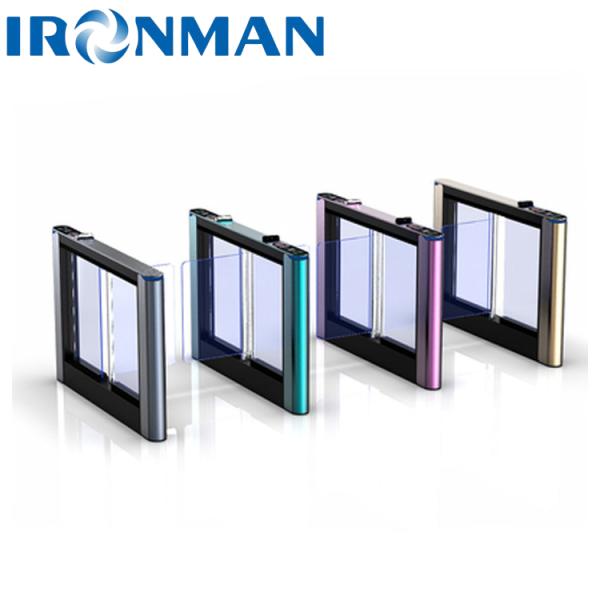

SPCC Embedded Face Recognition Pedestrian Turnstile Gates Aluminum Alloy Material
Product Overview

Supermarket Entrance Speed Gate Swing Barrier Turnstile with Fence for Secure Gate Access

Pendulum gates are widely used in various public places for channel entrance and exit management. Their unique open-ended design and wider channel width accommodate pedestrians, bicycles, assisted vehicles, disabled vehicles, prams, luggage, and other non-motorized transport.

Advanced Technology: IRONMAN Intelligent series features innovative design and excellent performance using high-quality materials.
Reliable Drive System: Electronic control using DC motor drive ensures stable operation and low failure rate.
Clear Indicators: Ultra-high brightness LED traffic direction indicators for enhanced visibility.
System Integration: Compatible with face recognition, RFID, fingerprint, QR/barcode, and ESD access control systems.
Customization: Available OEM/ODM services for size, shape, and other specifications.
Material: Constructed from oxidation-resistant aluminum alloy.
Technical Specifications
Parameter Specification
Thickness Top 8mm + Body 2mm
Work Voltage AC110~220V±10V
Working Environment Temperature -35℃～75℃
Relative Humidity 0～90% (No condensation)
Communication Interface RS232/RS485 serial port
Communication Protocol MODBUS protocol
Working Speed ≤30 persons/min
Swing Arm Material 10MM Acrylic
Infrared Sensors 6 pairs (10 pairs optional)
Core Functions
  • Alarm Function: Sound and light alarm system
  • Anti-interference: Protection against electromagnetic and external causes
  • Passage Mode Setting: Configurable unidirectional, bidirectional, and free passage modes
  • Anti-tailgating: Prevents multiple unauthorized persons passing simultaneously
  • Anti-clamp Function: Automatic stop when detecting obstruction during closing
  • Self-reset: Automatic cancellation of pass rights after set time (default 10s)
  • Access Control Integration: External ports for biometric identification devices
  • Power Failure Access: Gate opens automatically during power outage
  • Fault Detection: Comprehensive fault type detection and troubleshooting
  • Passing Indicator: Traffic status indicator with overstay alarm function
Safety & Performance Features

Pendulum gate poles cannot be pushed by external force when locked, withstanding impact forces within safety ranges. Emergency escape control devices automatically unlock gates for crowd evacuation (remotely controllable).

Software-controlled personnel limits meet special management requirements. Multiple gates can be batch configured and debugged via software for improved efficiency and reduced maintenance costs.

Product Advantages

Swing gates excel in wide application range, expandability, anti-collision features, transmission life, compatibility, aesthetics, safety, reliability, and unique rotational life with superior material selection.

Face Recognition Swing Barrier Turnstile Gate with Aluminum Alloy Material and DC Brushless Motor Face Recognition Swing Barrier Turnstile Gate with Aluminum Alloy Material and DC Brushless Motor Face Recognition Swing Barrier Turnstile Gate with Aluminum Alloy Material and DC Brushless Motor Face Recognition Swing Barrier Turnstile Gate with Aluminum Alloy Material and DC Brushless Motor
Packaging & Delivery
Face Recognition Swing Barrier Turnstile Gate with Aluminum Alloy Material and DC Brushless Motor
Measurement Total Gross Weight
1440*230*1040MM 63.00KG

Products are packaged in wooden crates with pearl cotton and cling film for export transportation.
