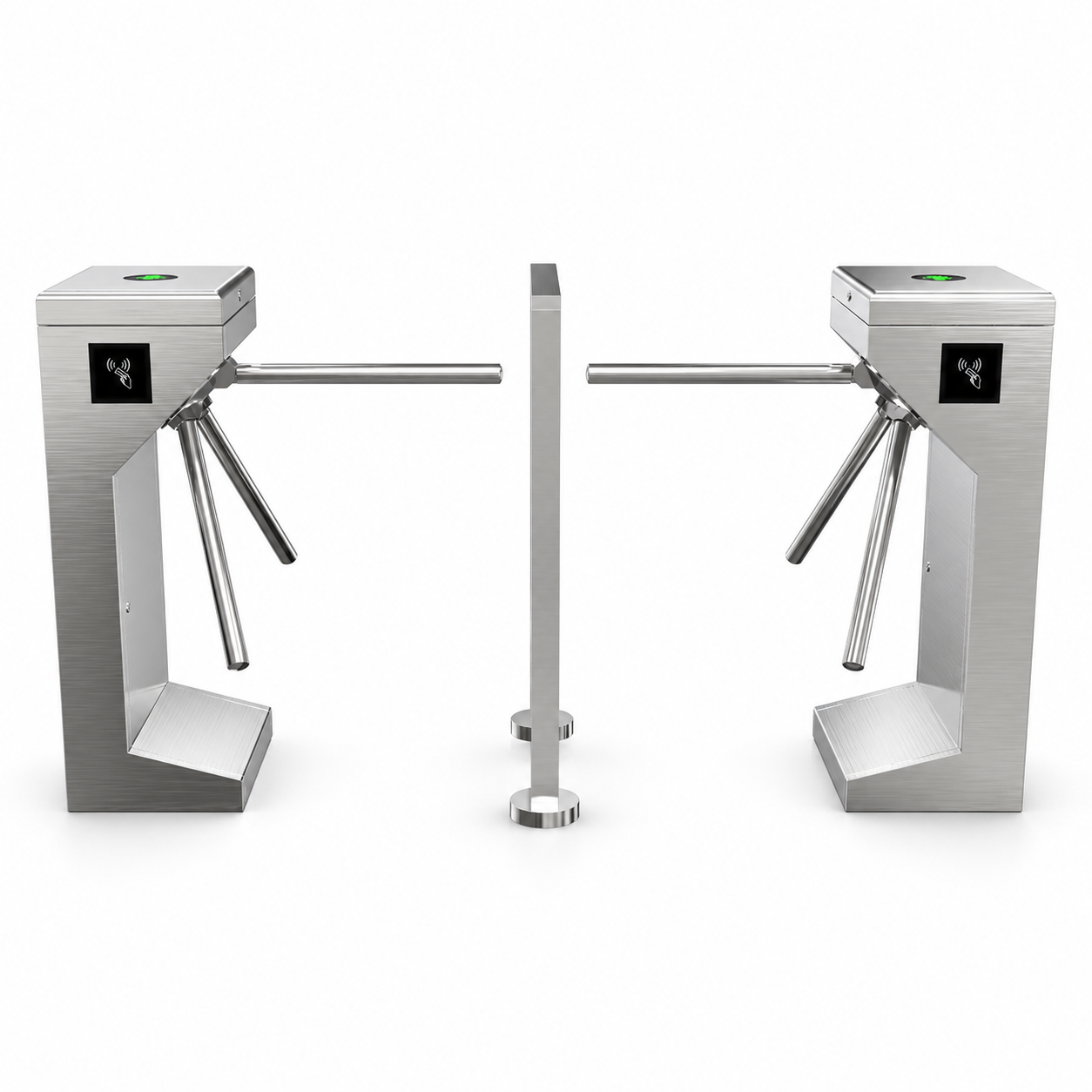

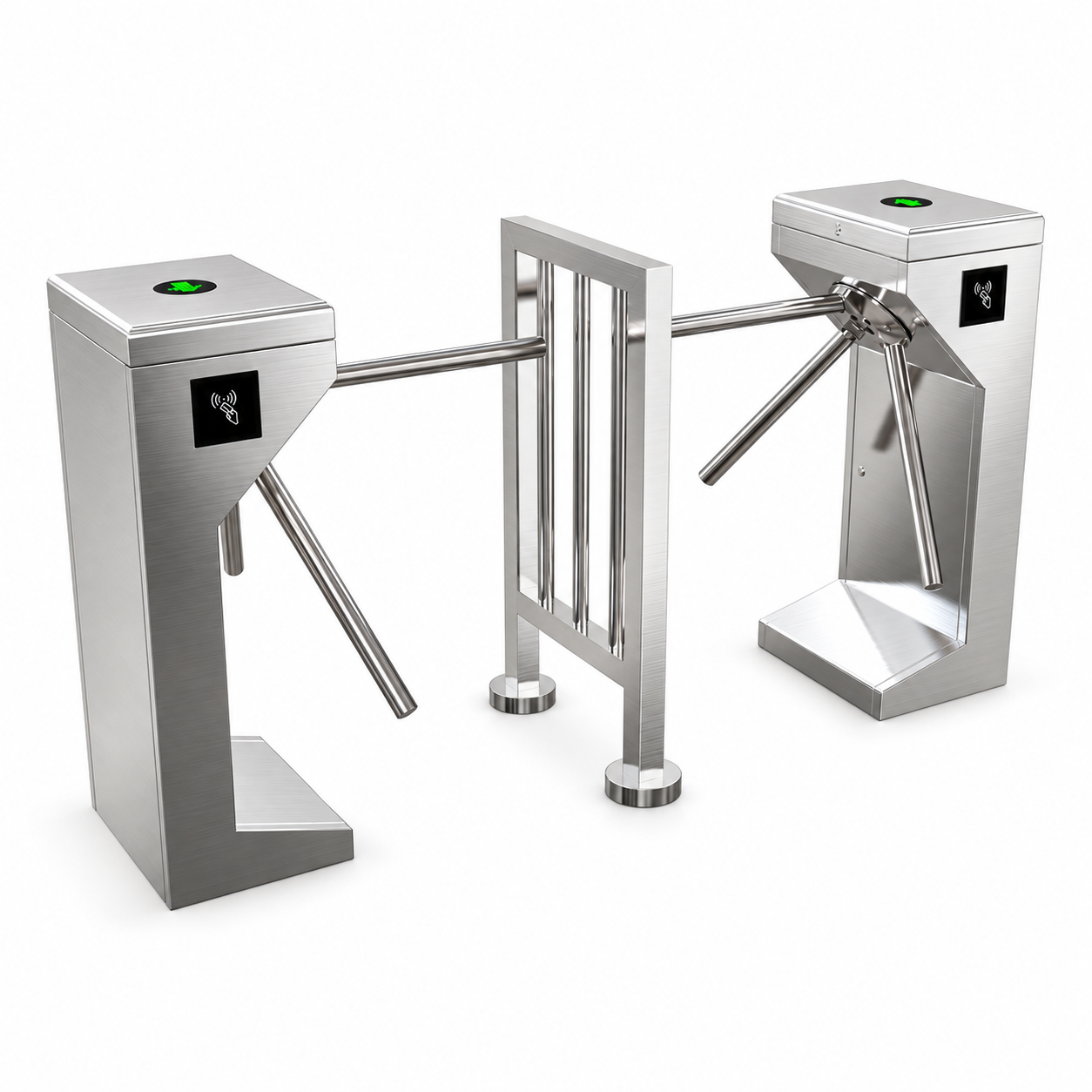

IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
Specifications
Arm Length :
500mm; Passage Width: 550mm
Gate Motor :
Semi-Automatic / Full-Automatic (Optional)
Power Supply :
AC 110~220V±10V, 50Hz
Brand Name :
Ironman
Model Number :
IM.S101
Certification :
CE、FCC、ISO
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
2000 pc per/month
Delivery Time :
5-30 work days
Packaging Details :
carton packing
Protection Level :
IP55 (dustproof, water-splash proof)
Size :
420×330×980mm
Description
Tailored Access Control for Diverse Scenarios

The Ironman IM.S101 tripod turnstile is a versatile access control gate engineered for offices, factories, subway hubs, schools, and shopping malls. It combines multi-mode verification (RFID, IC card, face recognition, QR code, and fingerprint) with anti-tailgating protection and a throughput of up to 35 persons per minute.

Scenario-Specific Applications
Office Buildings & Commercial Spaces
  • Needs: Efficient staff access plus reliable visitor management.
  • IM.S101 Advantages: Supports face recognition and QR code verification for fast employee check-in, with temporary QR codes for visitors. Anti-tailgating prevents unauthorized entry.
  • Effect: Streamlines daily access and improves overall office security.
Factories & Industrial Zones
  • Needs: Dust and water resistance, plus ESD safety for electronics manufacturing.
  • IM.S101 Advantages: IP55 protection adapts to dusty workshop environments, while ESD system integration prevents static damage to sensitive products.
  • Effect: Ensures stable operation in harsh industrial environments and meets production safety standards.
Subways & Public Transportation Hubs
  • Needs: High traffic efficiency and effective crowd management.
  • IM.S101 Advantages: 0.2-second fast gate opening and a traffic speed of up to 35 persons per minute handle peak passenger flow. A built-in counting function helps monitor passenger volume.
  • Effect: Reduces queuing time and maintains orderly passenger flow.
Schools & Campuses
  • Needs: Student safety and reliable access record management.
  • IM.S101 Advantages: IC card and RFID verification record student entry and exit times, while the anti-pinch design protects minors.
  • Effect: Enhances campus safety and provides clear access data for management.
Core Features

To meet scenario-specific requirements, the IM.S101 is equipped with:

  1. Multi-mode verification: RFID, IC card, face recognition, QR code, and fingerprint.
  2. IP55 protection for both indoor and outdoor compatibility.
  3. Anti-pinch, anti-tailgating, and anti-collision safety functions.
  4. Fast 0.2-second gate opening and high traffic efficiency.
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
IP55 Tripod Turnstile Gate with Semi-Automatic or Full-Automatic Motor and 500mm Arm Length for Secure Access Control
Technical Specifications
Specification Details
Model IM.S101
Brand Ironman
Material Stainless Steel
Size 420 × 330 × 980 mm
Arm Length 500 mm; Passage Width: 550 mm
Power Supply AC 110–220V ±10V, 50Hz
Protection Level IP55 (dustproof, water-splash proof)
Working Temperature -30℃ to +70℃ (IP55 enables wide adaptation)
Gate Motor Semi-Automatic / Full-Automatic (Optional)
