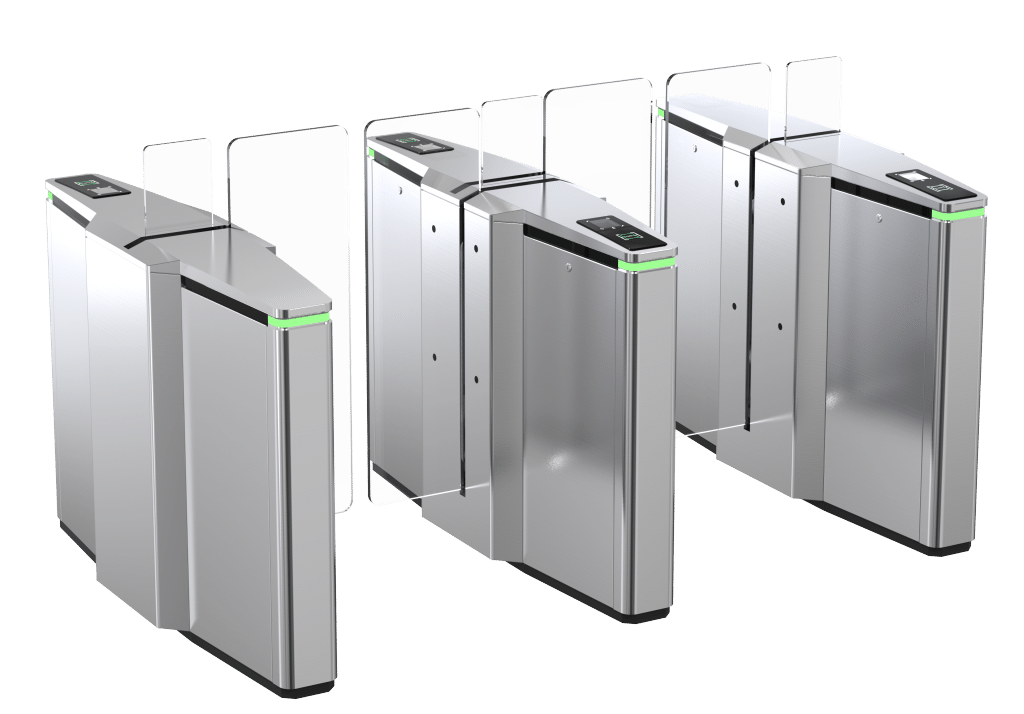

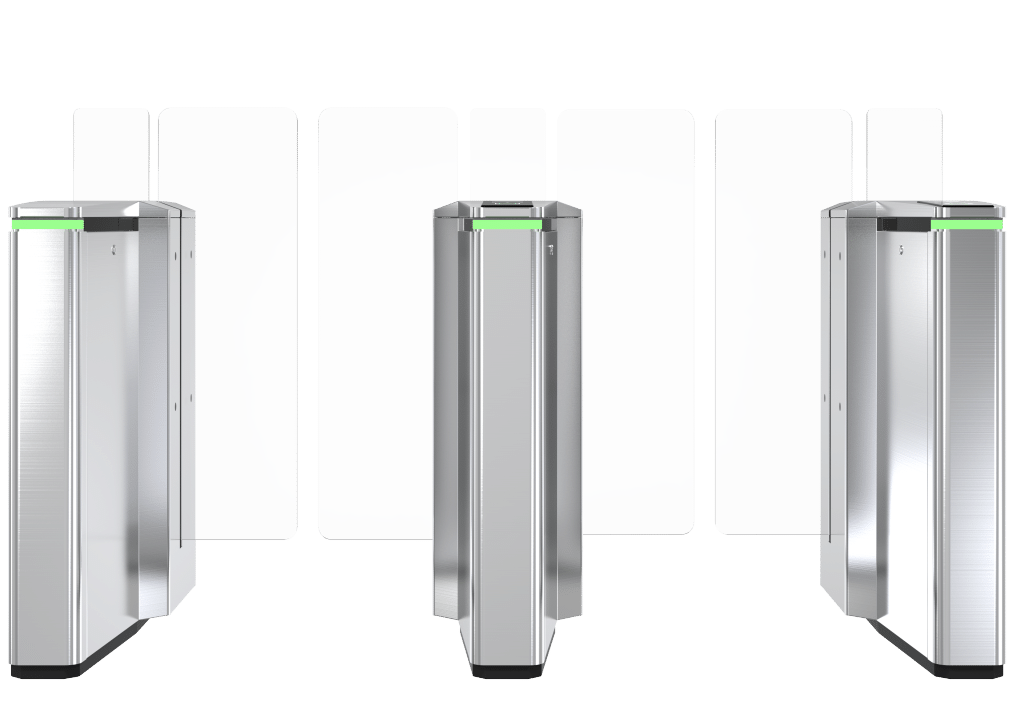

Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Specifications
Application :
Bus, Station,factories, Library,etc
Model Number :
PX.FL.01
Supply Ability :
2000 pc per/month
Name :
Turnstile Subway Station
MOQ :
1pc
Delivery Time :
8-15 work days
Input voltage :
AC220V±10% , 50Hz
Payment Terms :
L/C,T/T
Dimensions :
1400*345*980MM
Surface :
Housing：original color hairline Stainless Steel Bottom： black sand paint
Price :
Negotiation
wing material :
Transparent tempered glass; T=10MM
Certification :
ISO9001
Brand Name :
PORTEVIX
Packaging Details :
carton packing
Place of Origin :
China
Description
Sliding Doors and Revolving Doors for Airports

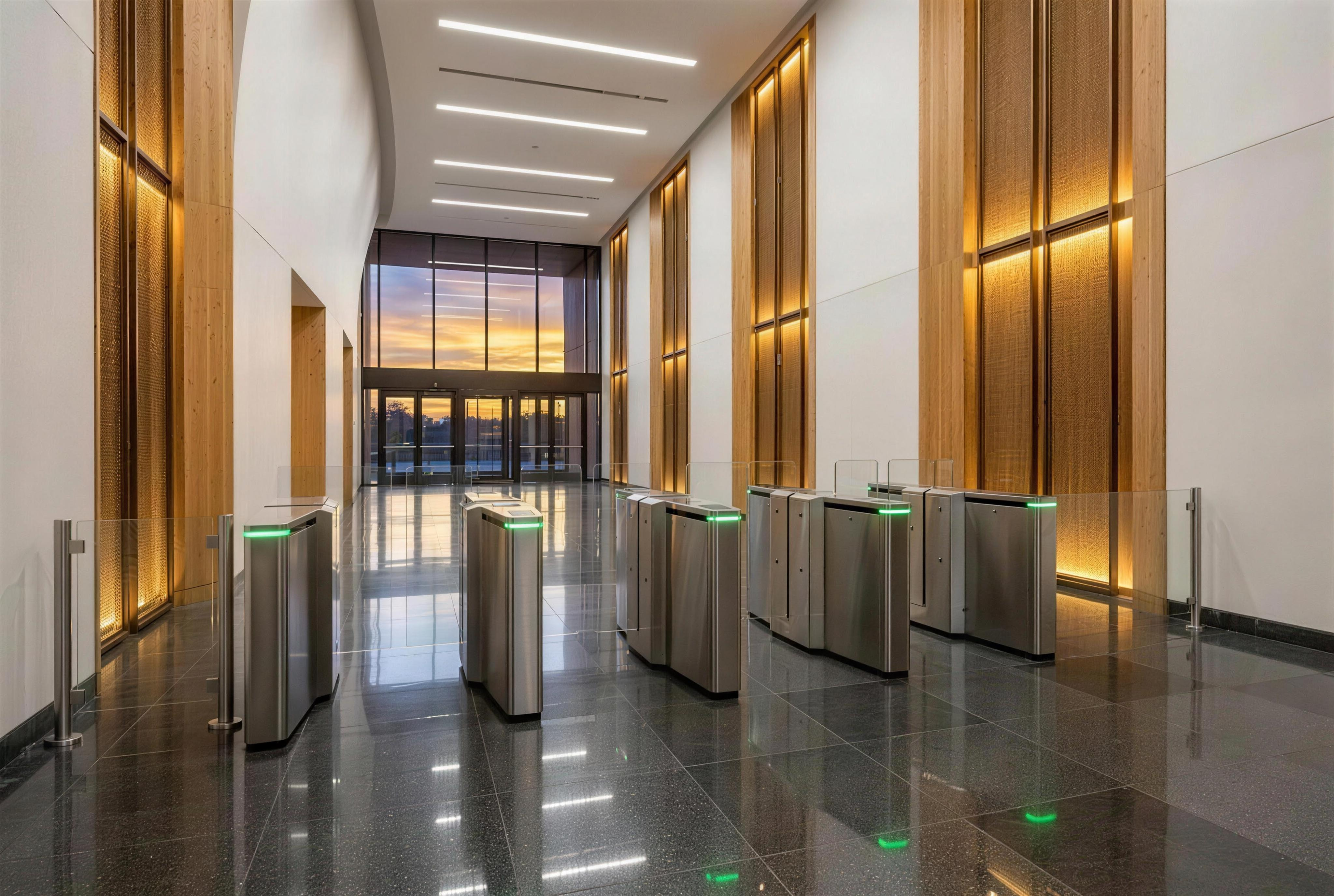

Designed for quiet operation, high efficiency, and anti-climb security. The equipment runs smoothly with low noise, high efficiency, and space-saving design, effectively reducing security personnel requirements. Suitable for high-end office buildings, airports, subway stations, and other locations with high security demands.

Product Specifications: PX.FL.01 Sliding Gate Turnstile
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Product Parameters
Dimensions 1400*345*980MM Housing Material Housing: SUS304 1.5MM
Top Cover: SUS304 2.0MM
Bottom: Corrosion Resistant Electrolytic Plate baking paint 1.5MM
Wing Material Transparent tempered glass; T=10MM Surface Housing: original color hairline Stainless Steel
Bottom: black sand paint
Application Indoor Unit used for: Airports, subways, libraries, office buildings, theaters, factories, scenic spots, stations, leisure and entertainment venues, etc.
Technical Parameters
  • Housing Material: SUS304 1.5MM; Top Cover: SUS304 2.0MM
  • Input voltage: AC110~220V±10%, 50Hz
  • Opening method: RS485/RS232/IO
  • EMC Standard: Antistatic level 3, Air discharge 15KV
  • Lightning Protection: 2KV
  • Motor: servo motor, High precision clutch movement
  • Working temperature: -20℃～75℃
  • Relative humidity: 0～90% (non-condensing)
  • Opening speed: ＜0.5S (adjustable)
  • Passing time: Swipe the traffic card time: 10S (If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)
Function Parameters
Basic Functions
  • Sound Alarm: Entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop sound alarm function
  • Intelligent linkage alarm function: Including sound and light alarms of break-in and reverse pass, which can be linked with other alarm monitoring equipment
  • Anti-interference: Limits gate abnormality caused by electromagnetic and other external factors
  • Traffic mode setting: One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel
  • Anti tailing: Prevents unauthorized multiple person passage
  • Anti pinch function: Gate stops closing when detecting anti-pinch signal
  • Automatic reset: System cancels user's passage permission if not used within specified time (default 10 seconds)
  • Access control: External port can connect various biometric devices
  • Power off and opening: Switch off after power off, with configurable opening direction
  • Fault detection: Control board supports fault type detection for analysis and handling
  • Passing indication: Passing status indicator with alarm function for exceeding stay time in channel
Extension Functions
Voice broadcast: Expandable voice module with volume adjustment
Opening / closing delay: Set delay opening time after receiving signal / set delay closing time after pedestrians pass (default 0 seconds)
Card swiping in the channel:
• Default forbidden: Card swiping in channel (inductive infrared area) is invalid
• Permission: Card swiping verification allowed in channel
Trailing and reversing gate closure:
• Gate Closed: Reverse/trailing traffic will not close the gate
• Close then open: Close gate first for reverse/trailing, then reopen after closing
• No reopen after close: Gate closes for reverse/trailing but doesn't reopen
Fire linkage:
• Normally open mode: Gate remains open
• Normally closed mode: Gate remains closed
System language function:
• Chinese: System can set Chinese interface
• English: System can set English interface
Passage Mode:
• Bidirectional passage: Swiping card bi-directionally for people flow
• Bidirectional free passage: No credit card verification required
• Unidirectional passage: Unidirectional (A) swiping card opens gate normally; reverse (B) swiping card invalid
• Unidirectional free passage: Unidirectional (A) free passage; reverse (B) requires swiping card verification
• Passing prohibited: Bidirectional swiping card invalid, gate enters locked state
Key Features

Fast operation and powerful control panel for reliable performance in high-traffic environments.

Dimension Drawing
Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
Applications

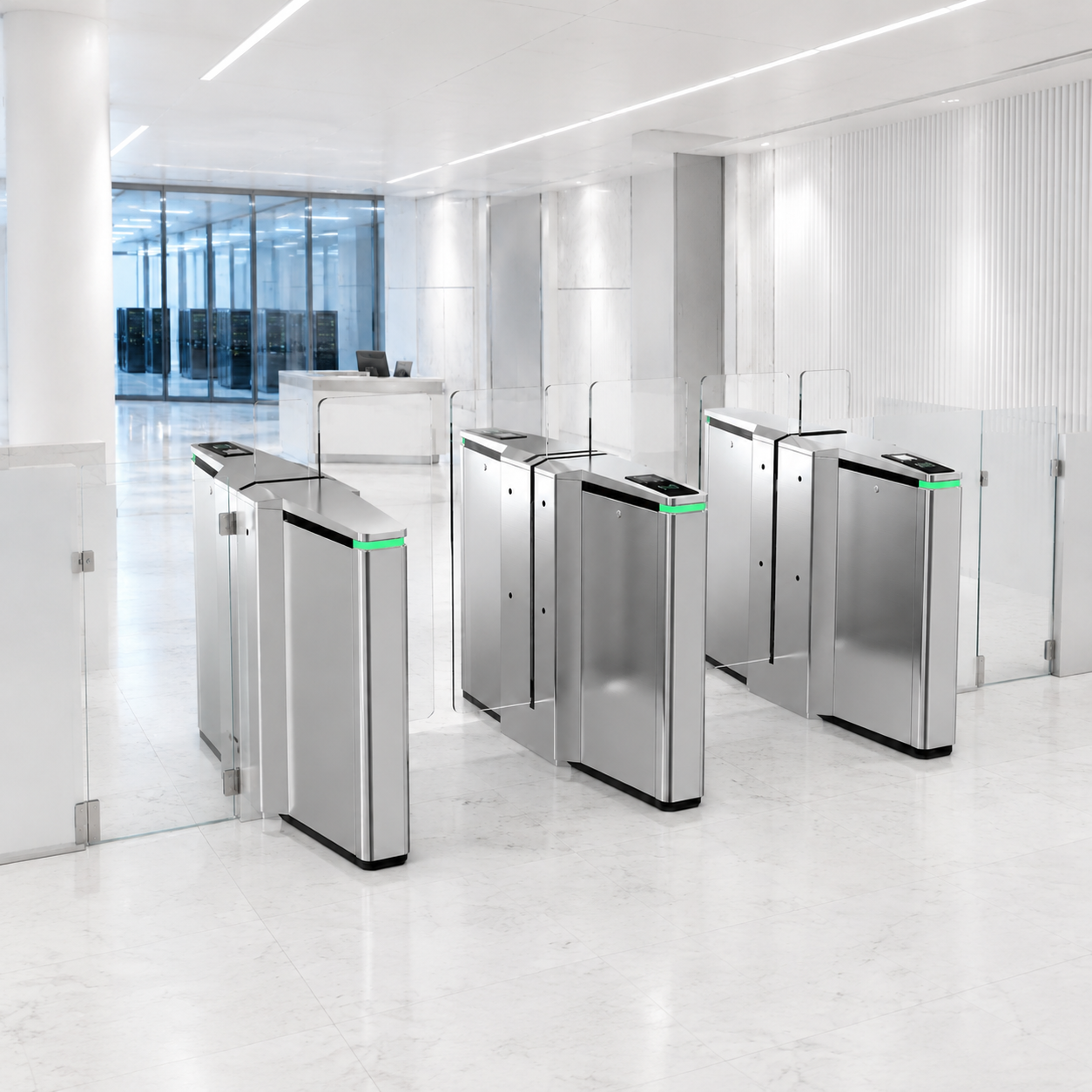

Office / School / Park / Supermarket / Subway

Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security
