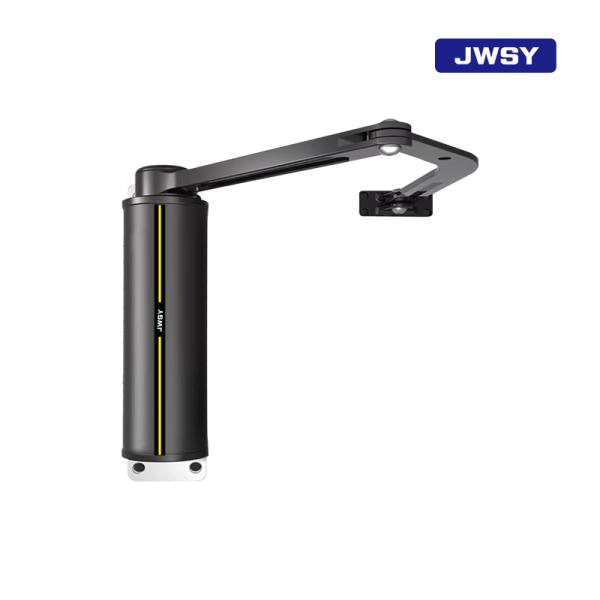

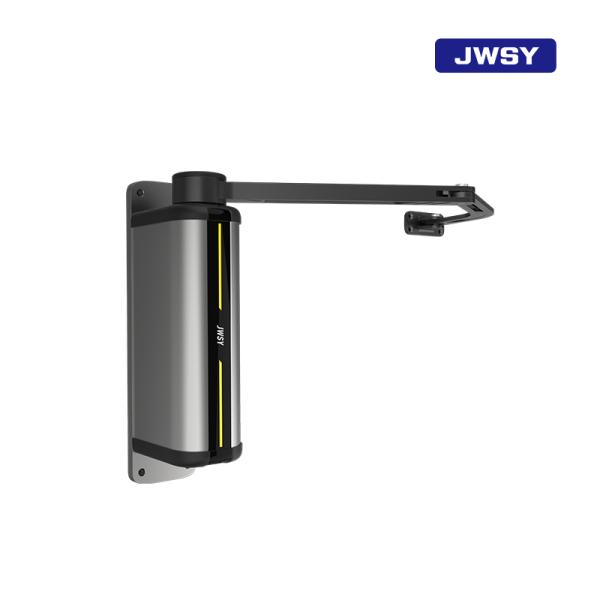

Side Mounted Automatic Swing Gate Opener Compact Security Gate Opener
Side Mounted Automatic Swing Gate Opener Compact Security Gate Opener
Side Mounted Automatic Swing Gate Opener Compact Security Gate Opener
Side Mounted Automatic Swing Gate Opener Compact Security Gate Opener
Specifications
Brand Name :
JWSY
Model Number :
W‑MJ102
Place of Origin :
China
MOQ :
10 units
Payment Terms :
Payment before delivery
Supply Ability :
10000 units
Delivery Time :
10 Work days
Packaging Details :
Carton packaging
Device Name :
Side Mounted Swing Gate Opener
Size :
348 (L) × 83 (W) × 133 (H) mm
Power Supply voltage :
DC12V/2A
Motor Power :
60W
Weight :
About 7.4 kg
Operating Temperature :
-40 ~ +80℃
Description
▋Side Mounted Swing Gate Opener
The automatic swing gate opener is designed for the automated control of single or double swing gates, including wrought iron gates, villa gates, glass doors, electric small gates, and pedestrian swing gates. It supports automatic opening and closing via access control devices, facial recognition terminals, and mobile phone remote control.
Equipped with a new DC brushless motor, it delivers sufficient and stable torque. The controller adopts military‑grade motherboard technology, providing a more user‑friendly operation experience.
▋Technical Specifications
Product Name Side Mounted Swing Gate Opener
Product Model W‑MJ102
Scope of Application Suitable for various swing gates with width ≤ 2000 mm and weight ≤ 200 kg.
Power Input Voltage DC24V ±10%, 5A
Motor Power 60W
Door Lock Control Voltage Output DC12V
Light Control Voltage Output DC24V
Remote Control Distance 15 m
Motor Speed Ratio 0.180555556
Operating Temperature -40 ~ +80℃
Weight ≈ 7.4 kg
Packaging Dimensions 348 (L) × 83 (W) × 133 (H) mm
▋Product Features
  • Compact Design: Specially designed for pedestrian access gates; can be installed on gate posts as narrow as 5 cm.
  • Safety: Powered by 24V DC for personal safety. Features a non‑reversible motor, reverse‑acting arm, and built‑in closing limit (when using the complete crank arm).
  • Smooth Operation: Multi‑speed design ensures linear, stable movement.
  • Multiple Protections: Motor overcurrent, overload, and short‑circuit protection; motor fault protection; reverse polarity protection.
  • Fast: No waiting time; opening or closing in as little as 3 seconds (under ideal conditions, 90° opening with standard crank arm).
  • Pedestrian Protection: Obstacle‑detection rebound and anti‑collision functions.
  • Quiet: Operating noise below 50 dB.
  • Diverse Interfaces:
    Supports PIR infrared sensor input for pedestrian safety. Supports external remote control input.Compatible with single, double, and master‑slave swing gates.Supports RS485 communication between two gates for synchronized opening/closing.Accepts multiple signal inputs: relay signals and voltage signals.
