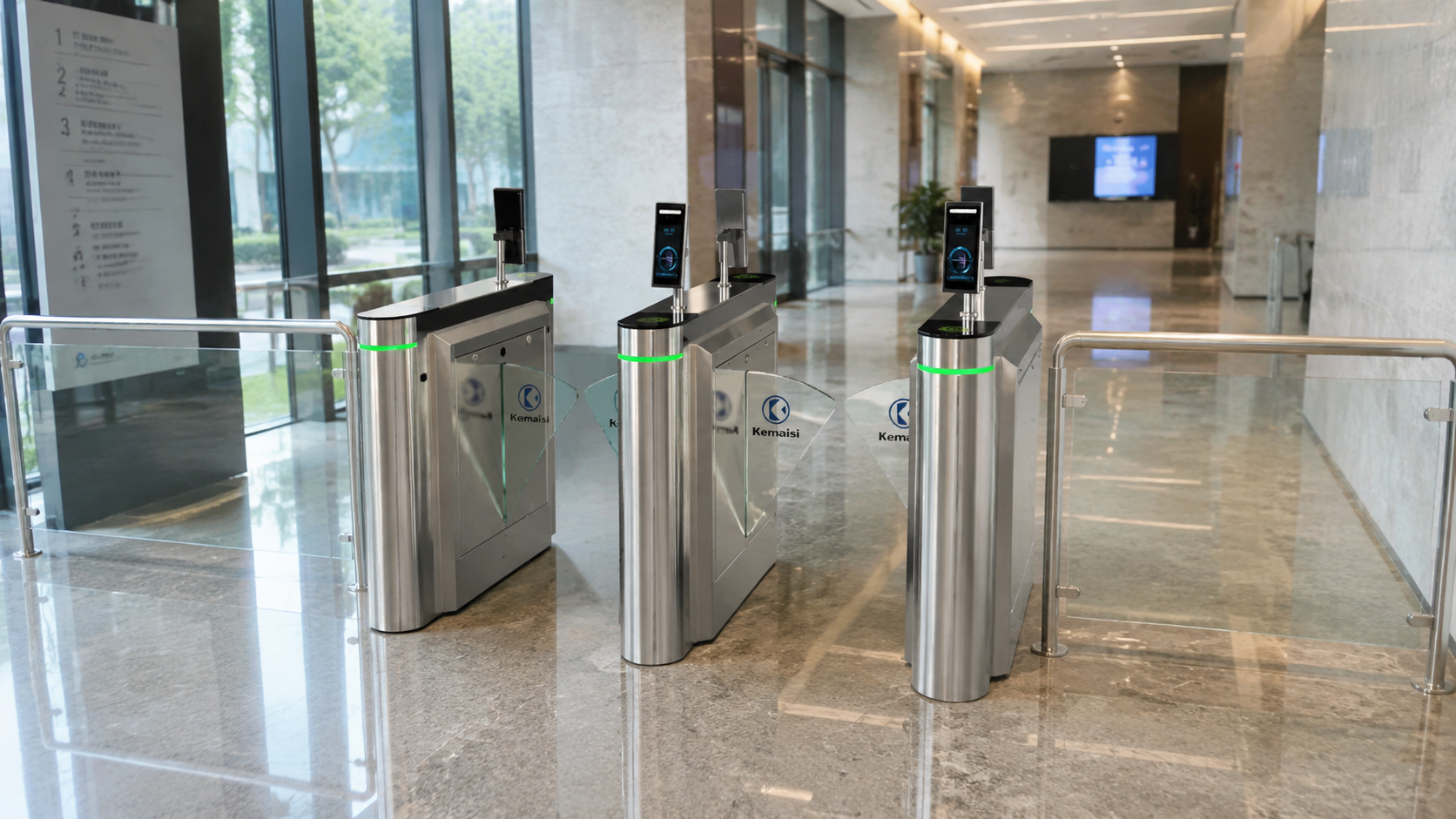

Fast Passage Access Control Wing Barrier Turnstile Gate

Product Description

This fast passage wing barrier turnstile is engineered for high traffic entrances where speed and smooth flow matter most , such as office buildings , metro and rail stations , stadiums , exhibition centers and campuses . The acrylic wings open in only 0.5 seconds , and a single lane handles about 30 people per minute in normal mode and up to 40 people per minute in normally open mode , so long queues are greatly reduced during peak hours . Users verify quickly by facial recognition , RFID/IC/ID card , QR code , NFC or password , and the lane can be connected to various access control platforms through relay , RS485 or TCP/IP interfaces . Accurate brushless positioning ensures stable and quiet operation with a long service life and low maintenance . Built in infrared sensors provide reliable anti tailgating protection , so only one authorised person passes at a time , while the anti crash design keeps the wings locked until a valid credential is presented . On a power failure the wing barrier automatically opens to an unlocked state for rapid and safe evacuation , and the emergency stop button on the side instantly unlocks all passages to meet fire and emergency requirements . If no passage occurs within the set time after opening , the system automatically cancels the current permission . The device offers fault self diagnosis , 2 LED indicators and IP43 / IP54 protection , ensuring smooth high speed passage every day .

Features and Advantages

1 . 0.5 second ultra fast opening

The acrylic wings open in only 0.5 seconds after a valid credential , giving users a fast and smooth passage experience even at the busiest entrances .

2 . High throughput for peak hours

A single lane handles about 30 people per minute in normal mode and up to 40 people per minute in normally open mode , greatly reducing long queues during rush hours .

3 . Multi mode fast verification

Supports facial recognition , RFID/IC/ID card , QR code , NFC and password , so users can pass with whichever method is fastest for them .

4 . Anti tailgating and anti crash

Built in infrared sensors accurately detect the position of each person and prevent tailgating , while the anti crash design keeps the wings locked until a valid credential is presented , protecting users and the device .

5 . Dual protection : power failure and emergency stop

When power fails , the wing barrier automatically opens to an unlocked state , ensuring rapid and safe emergency evacuation . Pressing the emergency stop button on the side instantly unlocks all passages , fully meeting fire and emergency requirements .

6 . Fault self diagnosis and multi device compatibility

The built in fault self diagnosis module triggers an automatic alarm when an abnormality occurs , with 2 LED indicators for clear status and IP43 / IP54 protection , and can connect to various card readers , facial recognition terminals and access control platforms .

Frequently Asked Questions (FAQ)

Q1: How fast is the passage?

After a valid credential the acrylic wings open in only 0.5 seconds , giving users a very fast and smooth passage with no waiting between verifications .

Q2: How many people can pass per minute?

A single lane handles about 30 people per minute in normal mode and up to 40 people per minute in normally open mode , so high traffic entrances can keep flowing during peak hours .

Q3: Can it integrate with our access control system?

Yes . The turnstile supports relay signal , 12V level / pulse signal , RS485 and TCP/IP , and can connect to card readers , facial recognition terminals and third party access control platforms .

Q4: What happens during a power failure or an emergency?

On power failure the wings automatically unlock , and the emergency stop button on the side instantly releases all passages , ensuring rapid and safe evacuation and meeting fire safety requirements .

Q5: Can the design and lane quantity be customized?

Yes . Housing materials , passage width , access control configuration , logo branding and lane quantity can all be customized according to your project requirements .

Looking for a reliable fast passage wing barrier turnstile gate manufacturer ? Contact us today for a free quotation and a high speed access control solution .
