Specifications
Barrier Material :
Acrylic Swing Arm
Model Number :
KMS-Y71123
Certification :
CE | RoHS
Packaging Details :
Wooden Case Package
Product Power :
100W
Infrared Sensor :
6 Pairs
MOQ :
1 pcs
Supply Ability :
1000peices/Month
LED indicator :
2 pieces
Product Size :
1500mm*300mm*1080mm (Sizes Can Be Customized)
Delivery Time :
5 - 14 work days
Passage Frame :
304 Stainless Steel / 201 Stainless Steel With Baked Paint
Payment Terms :
T/T
Product Name :
Park Wing Gate
Brand Name :
kemaisi
Place of Origin :
Guang Dong China
Price :
USD560-USD1200
Description

High Security Access Control Turnstile Gate For Park


Product Description


This intelligent turnstile is specifically designed for parks , scenic spots , zoos , outdoor playgrounds , and similar venues . Traditional turnstiles often suffer from ticket checking congestion during peak holidays , leading to visitor complaints about poor experiences . Moreover , manual ticket checking can easily result in ticket evasion or ticketing disputes . The Kemaisi intelligent turnstile supports multiple ticket verification methods such as QR code , ID card , facial recognition , and annual pass , achieving a 1 second ultra fast passage and greatly reducing queuing pressure . The innovative use of dual verification technology combining dynamic QR codes and facial recognition effectively prevents ticket forgery . The body is made of 304 stainless steel , offering waterproof , rain resistant , and rust resistant properties , making it robust , durable , and aesthetically pleasing . In emergency situations such as a power failure , the turnstile automatically triggers fire mode , sounds an alarm , and immediately opens the gate , ensuring safe evacuation of people . At the same time , it is equipped with a gentle anti pinch mechanism : when the swing arm encounters resistance during reset , it automatically rebounds or stops the motor , with a force not exceeding 2 kg , fully ensuring the passage safety of visitors . This turnstile is an ideal choice for improving ticket checking efficiency and service image at scenic spots .


Operating Modes


• Single passage in the set direction


• Bi-directional single passage


• Free passage in the set direction


• Always free or locked


Features and Advantages


1 . Ultra fast ticket verification and passage

Supports multiple credentials such as QR code , ID card , facial recognition , and annual pass . Verification and gate opening are completed within 1 second , effectively solving holiday congestion and improving visitor satisfaction .


2 . Intelligent anti forgery dual verification

Uses dual verification combining dynamic QR codes and facial recognition to eliminate forged tickets or identity fraud , protecting scenic spot ticket revenue .


3 . Robust and durable , all weather suitability

The body is made of 304 stainless steel , waterproof , rain resistant , and rust resistant . Long term outdoor use does not cause deformation or corrosion . It is strong , durable , and aesthetically pleasing .


4 . Automatic door opening on power failure

In the event of a sudden power failure , the turnstile automatically triggers fire mode , sounds an alarm , and opens the gate , ensuring rapid evacuation of visitors and complying with fire safety regulations .


5 . Gentle anti pinch protection

When the swing arm encounters resistance during reset , it automatically rebounds or the motor stops , with a maximum impact force not exceeding 2 kg , providing a safe passage environment for children and adults .

High Security Access Control Turnstile Gate Anti Pinch For Park

Product Name Park Wing Gate
Barrier Material Acrylic Swing Arm
Passage Frame 304 Stainless Steel / 201 Stainless Steel With Baked Paint

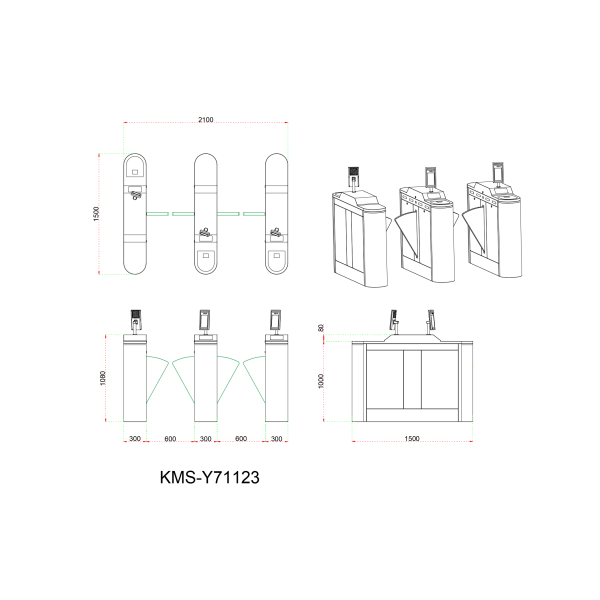

Product Size 1500mm*300mm*1080mm (Sizes Can Be Customized)
Traffic Speed 30 People/Minute, Normally Open 40 People/Minute
Service Life ≥5 Million Times
Channel Width 550-600mm
Weight 50-85KG
LED indicator 2 pieces
Working Voltage AC220V±10%/50HZ 50W
Relative Temperature ≤95% Not Condensing
Product Power 100W
Opening Time 0.5 Seconds
Ambient Temperature -30℃-70℃
Work Environment Indoor And Outdoor
Protection Grade IP43, IP54
Infrared Sensor 6 Pairs
Access Control Type RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening
Communication Interface Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP
