Full Height Turnstile For Unattended Stadiums Reducing Operating Costs
Product Overview
This full height enclosed turnstile is specifically engineered for outdoor venues including parks and sports stadiums. Featuring a mechanical enclosed structure, it effectively prevents climbing, crawling, and tailgating, ensuring robust physical security. When integrated with QR code or facial recognition technology, it enables 24/7 unattended management, allowing autonomous public access while significantly reducing manual operating costs.
Constructed entirely from 304 stainless steel, the unit offers exceptional waterproof and dustproof performance, ensuring reliable operation under harsh weather conditions including heavy rain, intense sunlight, high temperatures, and freezing conditions. The mechanical design guarantees single-person passage only, while the integrated identification system provides precise visitor counting—ideal for ticket management and visitor flow analysis.
Key Features & Advantages
- Ultimate Security & Physical Intrusion Prevention: Full-height mechanical enclosed structure effectively prevents climbing, crawling, or tailgating, physically blocking unauthorized entry and ensuring safety of parks and stadiums.
- Unattended Operation & Cost Reduction: Integrated with QR code or facial recognition technology for 24/7 autonomous passage without manual intervention, significantly saving labor costs.
- 304 Stainless Steel & All-Weather Durability: Complete unit constructed from 304 stainless steel with waterproof, dustproof, and high/low temperature resistance. Withstands harsh weather including heavy rain and intense sunlight without corrosion or deformation.
- Single-Person Passage & Precise Counting: Mechanical structure ensures only one person can pass at a time. Combined with identification system, accurately counts visitor numbers for ticketing management and visitor flow analysis.
- Multi-Scenario Applicability & Flexible Deployment: Suitable for public areas including parks, sports stadiums, scenic spots, and outdoor playgrounds, meeting high-security entrance control needs across various venues.
Technical Specifications
| Specification | Details |
|---|
| Product Name | Full Height Turnstile |
| Protection Grade | IP43, IP54 |
| Communication Interface | I/O, RS485 |
| Traffic Speed | 30 People/Minute |
| Pass Width | 600mm |
| Rotation Angle Per Step | 90° |
| Barrier Material | 304 Stainless Steel Round Tube / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |

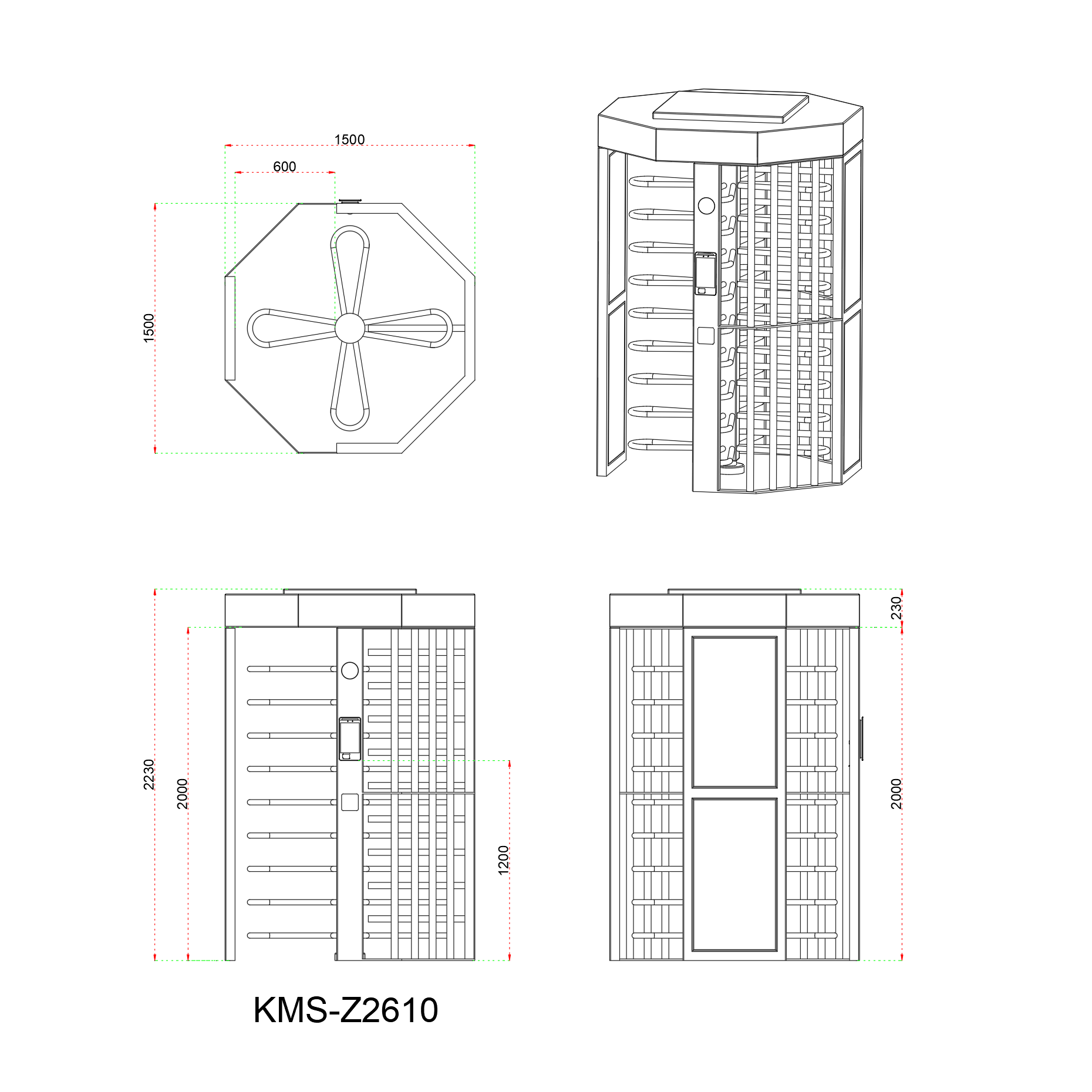

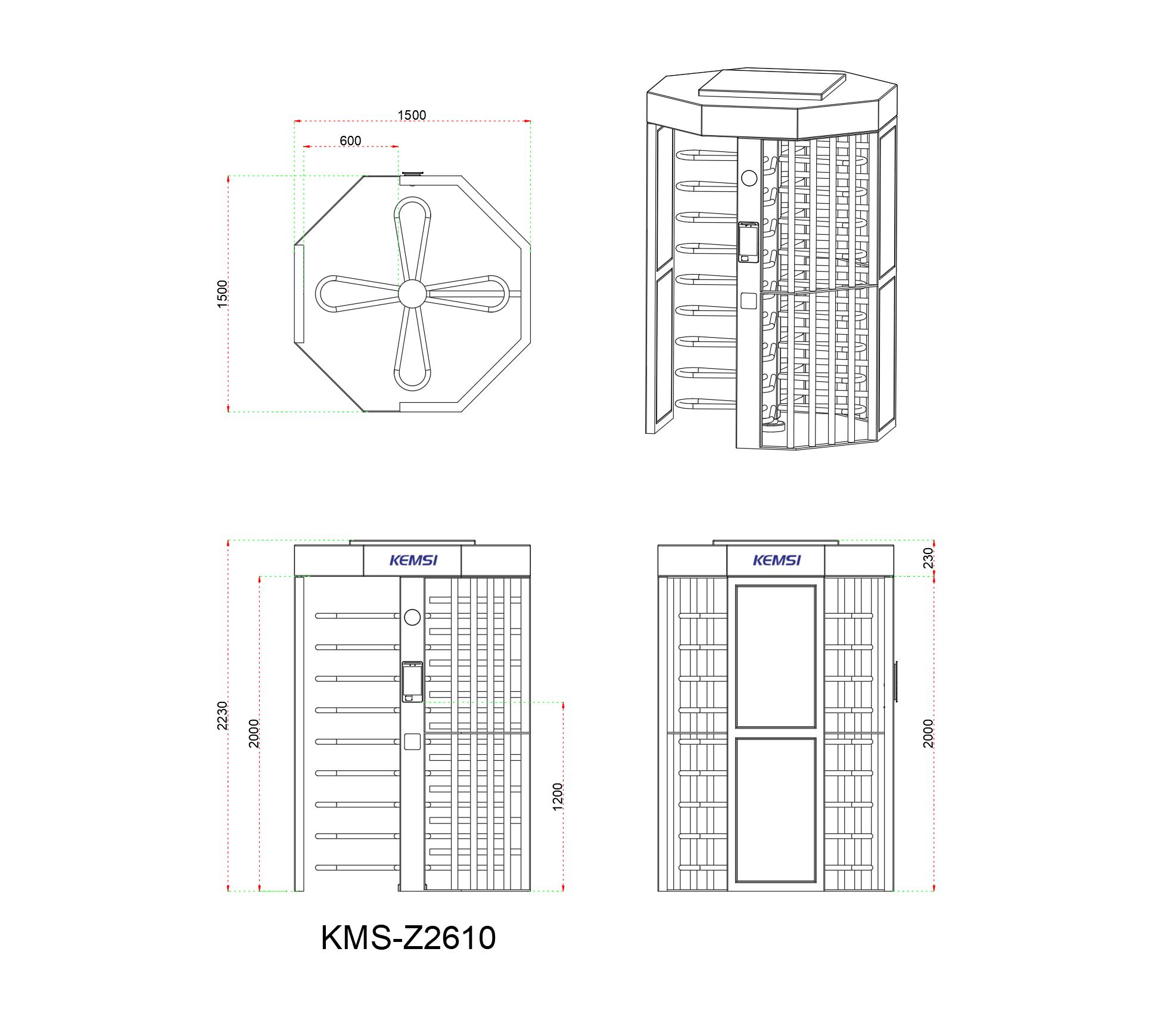

| Product Size | 1500mm × 1500mm × 2230mm |
| Working Voltage | 220V ± 10% |
| Ambient Temperature | -20℃ to 65℃ |
| Relative Humidity | ≤95% (Non-Condensing) |
| Work Environment | Indoor and Outdoor |
| Product Power | 50W |
| Access Control Type | RFID/IC/ID Card, Face/Iris Recognition, Fingerprint Identification, QR Code, Mobile Phone/NFC, Password, Remote Door Opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width >100ms; RS485 or TCP/IP |

Frequently Asked Questions
What is a full height turnstile gate?
A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.
What is the difference between a full height turnstile and a tripod turnstile?
A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.
Can this turnstile work with facial recognition systems?
Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.
Is this turnstile suitable for outdoor use?
Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.
How many people can pass through the turnstile?
The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.
Does the turnstile support emergency opening?
Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.
Why Choose Our Full Height Turnstile Gate?
Choosing the right pedestrian security gate is essential for protecting your facility. Our full height turnstile system combines mechanical strength, smart access control compatibility, and reliable performance to deliver a professional security entrance solution.
Whether you need access control for a factory, stadium, government building, transportation station, or restricted facility, this high-security turnstile provides an effective way to manage pedestrian access.
