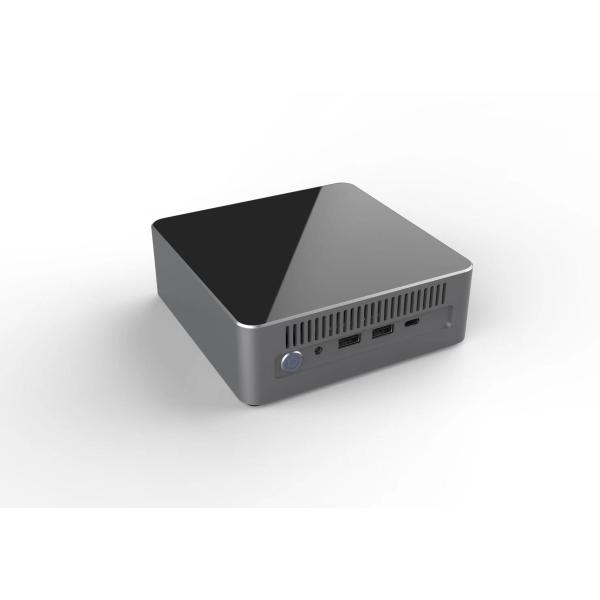

Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD

Application of Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD:

1. Industrial control cabinet
2. Human Machine Interface
3. Welding industry
4. CNC machinery control
5. Numerical control device
6. Video Analysis
7. Hospital and school

Advantages of Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD:

1. High reliability, continuous production, and decreasing failure rate.
2. Intel® Quad Core with Frequency of 1.1-2.8GHz.
3. Support hardware reset.
4. Expanded display for Multi-task, Electricity Booting.
5. Work well in the industrial environment.
6. Fanless design for high heat dissipation.
7. Be able to work with industrial cameras.

Rich I/O ports of Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD:

Include: Power Button, MIC /Audio port, USB3.0 * 2, Type-C * 1(support display), RJ45 LAN *1, HDMI 2.0 *1, DP * 1, USB3.0 *2, DC IN

video out for 3 monitors via HDMI 2.0 x 1; Type-C x 1; DP x1


Description of Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD:

Computing System
Processor: i3-1125G4 ( Quad Core, Frequency 2.0GHz ~3.7GHz)
Memory: 2x SO-DIMM DDR4-2666/3200, max support 64GB
Storage
a. M.2 2280 SSD(support NVME)
b. 2.5" SATAIII SSD/HDD

I/O Ports
Audio: Stereo output
Loss-less Bitstream via HDMI Type-C and DP
Microphone in
USB Port: 4 x USB 3.0;
LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: 802.11ac(onboard)
Bluetooth: 5.0


Mechanical of Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD:

Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC19V3.42A
Dimensions: 138*138*46mm
Case Mounting: VESA Mount(70mm*70mm/100*100mm)


Miscellaneous

Supported OS: Windows 10 Home/Pro/11/Linux

Accessories of Intel Tiger Lake KC11 Intel Core Mini PC i3-1125G4 CPU Window 11 512 SSD:

1 x AC adapter
1 x User manual
1 x VESA Mount (with 4 screws)
1 x HDMI cable

OEM Service:

Logo printing on the PC case/Sticker printing/BIOS setting(PXE/ Auto-power-on/Wake up on Lan)/OS pre-install and info setting.
