Passive Cooling MINI Computer with Intel Gemini lake Pentium J5005 Quad Core AC1-Z (sku: AC1-Z-J5005)

Features

Innovating productivity with an all-new passive cooling chassis design.

Passive cooling hardware capable of up to a 10W TDP processor to deliver the most powerful performance in complete silence

- Intel Gemini lake J5005 Processor, Quad core, up to 2.8GHz
- Powerful passive cooling for silent performance
- A 180 degrees of breathable ventilation
- Up to 16GB DDR4 SO-DIMM memory support

- M.2 2280 SSD with 2.5” HDD support
- 4K @ 60 Hz, 2 x HDMI 2.0
- VESA Mount Ready

Benefits:

1. Tiny and Delicate Design:With small and exquisite design, easy to put and remove, save space; integrated design, without fans, low noise; you can also hang it on the back of the displayer, saving the desktop space maximally;

2. Dual Application: Can be used as an independent computer, also can be used as a thin client with RDP sharing another host PC;

3. Beautiful: Industrial aesthetic design and Reasonable interface layout;

4. Noiseless: Fanless system, low consumption, 0.00dB noise;

5. OEM and ODM available for company logo, appearance, ram and storage capacity.

Description

Computing System

Processor: Intel Gemini lake Pentium J5005(quad-core 1.5GHz, up to 2.8GHz)

Chipset: Intel

Memory: 1 x DDR4-2666/2400 SODIMM Slot (up to 16GB)

Graphics

Graphics Engine: Intel UHD Graphics 605 (Integrated)

Video Output: 2 x HDMI 2.0 (up to 3840x2160@60Hz)

Storage

Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot

M.2 : m.2 2280 SATA SSD

Card Reader: 3-in-1 (SD/SDHC/SDXC)

I/O Ports

Audio: Stereo output
Loss-less Bitstream via HDMI

Microphone in

USB Port: 2 x USB 3.0

2 x USB 2.0

LAN: 1 x 10/100/1000Mbps

Antenna: Internal, dual antenna

Wifi: 802.11ac

Bluetooth: 5.0

Mechanical

Kensington Lock: Yes

LED Indicators: Power, Power Supply

AC Adaptor : DC12V25A

Cooling system: Passive cooling

Dimensions: 129mm x 129mm x 48mm (5.08in x 5.08in x 1.89in)

Case Mounting: VESA Mount

Miscellaneous

Supported OS: Windows 10 Home/Pro, Ubantu

Accessories: 1 x AC adapter

1 x User manual

1 x VESA Mount (with 4 screws)

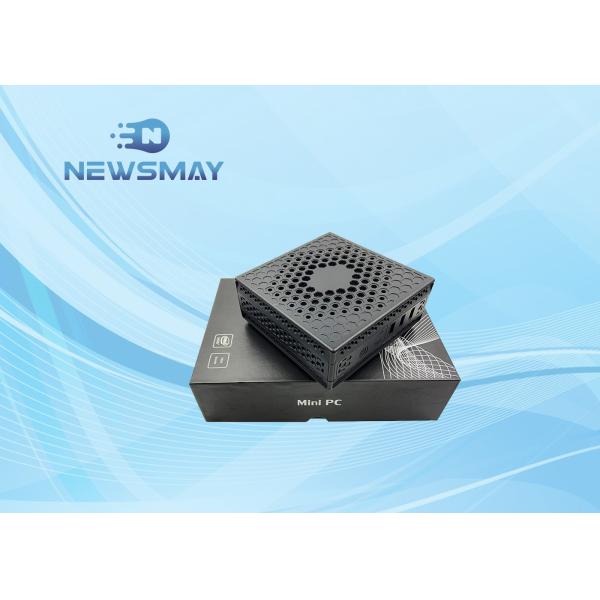

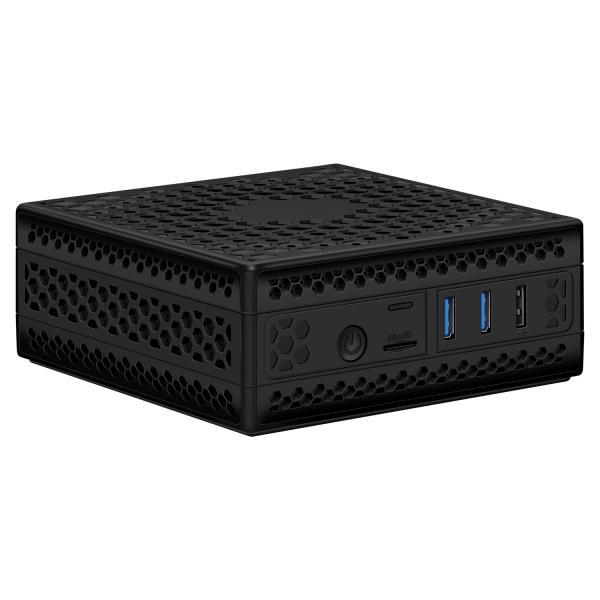

Product show

Support 2HDMI Monitors

Using Application Scenarios.

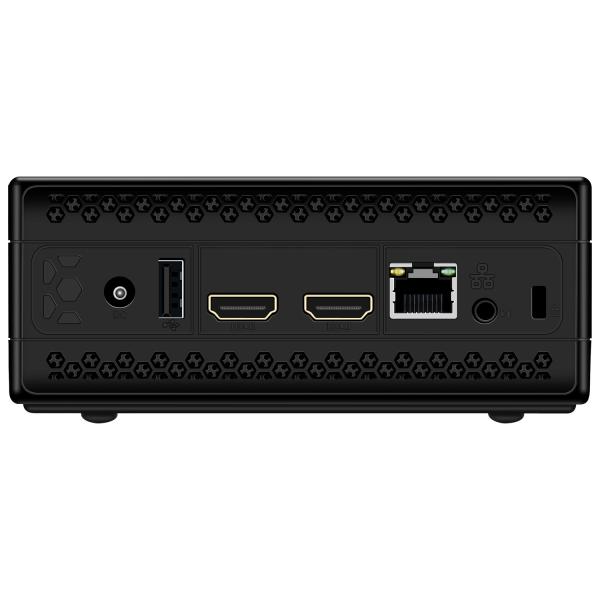

I/O ports

VESA
