Quad Core Intel Fanless Pc / Fanless Media Pc VESA Case Mounting AC1-Z

1.) TheFanless industrial panel pcwas made of metal in beautiful shape,no cable design is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3GandWIFI.

2. With the shockproof, moisture-proof,waterproof anddustproof, high temperature resistant, multi-solt and easy to expand characteristics, so itis widely used inindustrial control,vehiclecontrol, environmental control,Miliary control,Monitoring system,Network security,Digital signage,Date storgeand other automation applications.

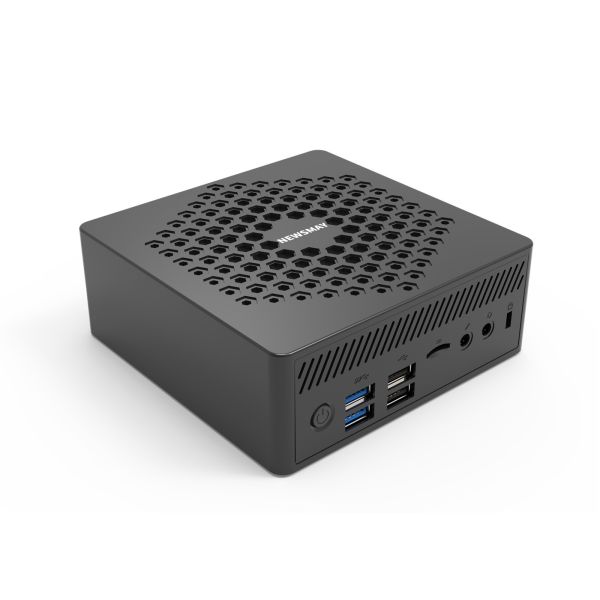

Product show

Description

Computing System

Processor: Intel Gemini lake Celeron J4125(quad-core 1.5GHz, up to 2.5GHz)

Chipset: Intel

Memory: 1 x DDR4-2666/2400 SODIMM Slot (up to 16GB)

Graphics

Graphics Engine: Intel UHD Graphics 600 (Integrated)

Video Output: HDMI 2.0 (up to 3840x2160@60Hz)

Storage

Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot

M.2 : m.2 2280 SATA SSD

Card Reader: 3-in-1 (SD/SDHC/SDXC)

I/O Ports

Audio: Stereo output
Loss-less Bitstream via HDMI

Microphone in

USB Port: 2 x USB 3.0

2 x USB 2.0

LAN: 1 x 10/100/1000Mbps

Antenna: Internal, dual antenna

Wifi: 802.11ac(onboard)

Bluetooth: 5.0

Mechanical

Kensington Lock: Yes

LED Indicators: Power, Power Supply

AC Adaptor : DC12V2.5A

Cooling system: Passive cooling

Dimensions: 129mm x 129mm x 48mm (5.08in x 5.08in x 1.89in)

Case Mounting: VESA Mount

Miscellaneous

Supported OS: Windows 10 Home/Pro, Ubantu

Accessories: 1 x AC adapter

1 x User manual

1 x VESA Mount (with 4 screws)
