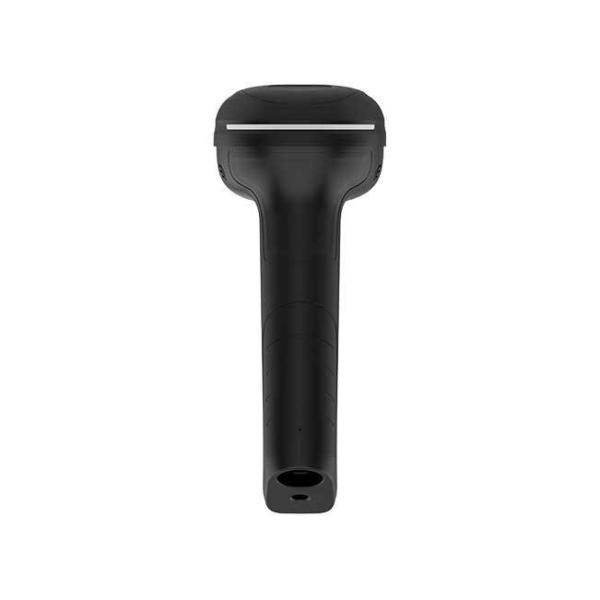

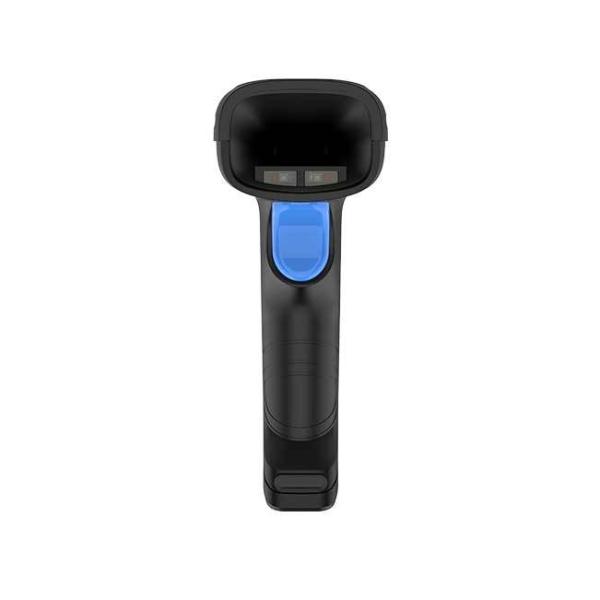

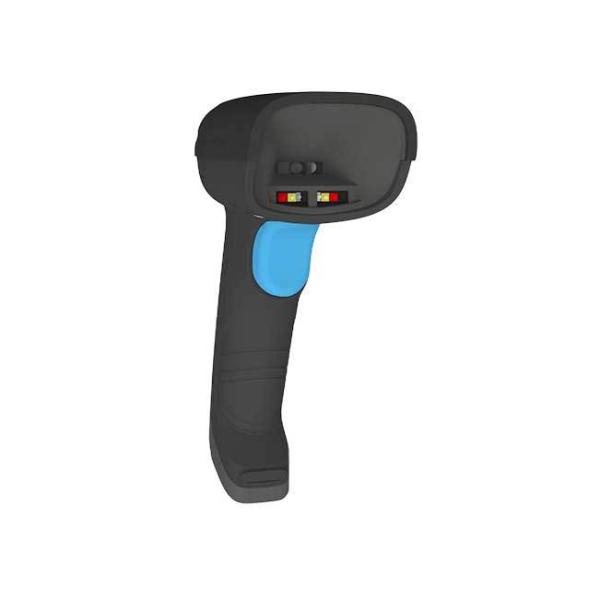

H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
Specifications
Brand Name :
SR
Model Number :
H300/H303
Place of Origin :
China
MOQ :
10PCS
Price :
13-20usd
Payment Terms :
L/C,T/T
Supply Ability :
4000 pcs/day
Delivery Time :
5 working days
Packaging Details :
corrugated paper box
Illumination :
Red and White LED
Temperature Range :
Operating: -20°C to 50°C Storage: -40°C to 70°C
Drop Resistance :
2m (steel plate, 18 drops); 5cm (4000 drops)
Aiming :
Laser
Barcode Resolution :
Minimum 3mil
Description
H300/H303 Handheld Barcode Scanner With Wireless Function
Fast and Accurate Scanning in Any Lighting Conditions
This wireless barcode scanner delivers fast, accurate scanning performance even at long distances or under challenging lighting conditions. Featuring a durable, drop-resistant body with ergonomic design and long-lasting battery, it's ideal for inventory management, asset tracking, and checkout applications to improve workflow efficiency.
Physical Characteristics
Dimensions 67mm × 87mm × 183mm
Weight 177g
Electrical Specifications
ESD Protection ±15KV Air, ±8KV Contact
Input Voltage 5V
Interfaces USB, RS232; Key triggered, infrared triggered
Environmental Specifications
Drop Resistance 2m (steel plate, 18 drops); 5cm (4000 drops)
Tumble Test 2000 hits, 0.5m (Steel)
Temperature Range Operating: -20°C to 50°C
Storage: -40°C to 70°C
Humidity 0 to 95% RH (non-condensing)
Ambient Light 0 - 100,000 lux
IP Rating IP65
Reading Performance
Sensor Resolution 1280 × 800
Illumination Red and White LED
Aiming Laser
Field of View 42°H × 26.8°V
Symbol Contrast 15% minimum print contrast ratio
Scan Angles Pitch: ±60°; Roll: ±180°; Yaw: ±60°
Min Resolution 3mil
Reading Indicators Beeper; LED indicator; Vibration prompt
Supported Symbologies
2D Codes
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Digimarc
  • Dot Code
  • OCR
1D/Linear Codes
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
Postal Codes
  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code
Stacked Codes
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Depth of Field (DOF)
3 mil Code 39 10mm - 90mm
13 mil UPC 10mm - 200mm
10 mil DM 0mm - 100mm
20 mil QR 60mm - 250mm
H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating H300 Wireless Barcode Scanner with 3mil Resolution and IP65 Rating
