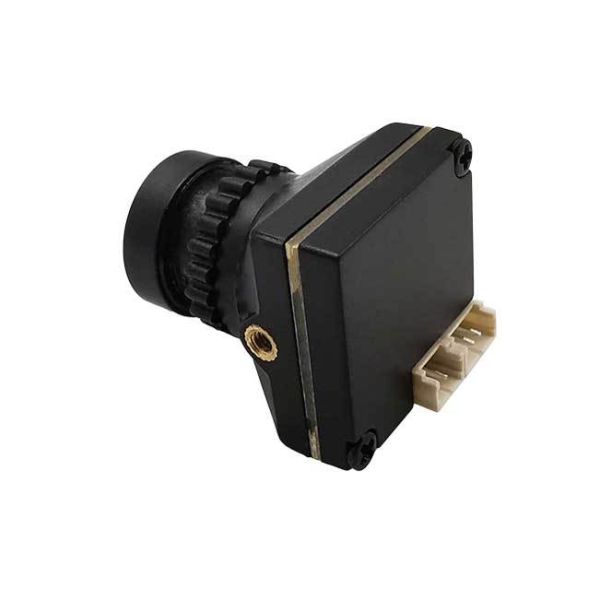

FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
Specifications
Brand Name :
SR
Model Number :
FPV-003-F
Place of Origin :
China
Payment Terms :
T/T,L/C
Supply Ability :
10,000/Day
Delivery Time :
7 Days
Sensor :
1/4.3” CMOS Sensor
Horizontal Resolution :
1200TVL
Pixel Size :
3.0um
Aspect Ratio :
16:9
Video System :
PAL/NTSC Optional
Field of View FOV： :
H90° V45°
White Balance :
Auto
ctronic Shutter Auto Low Light Sensitivity :
F1.6/0.0001LUX
Noise Reduction :
2D
Description
FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
Product Description
FPV-003-F Aerial Photography Camera, specifically eng
ineered for FPV drones, boasts a compact and lightweight design to meet the demands for minimised equipment size and weight in FPV racing drones. Additionally, it features high-definition night vision capabilities and ultra-low latency performance, delivering clear, real-time visual feedback during aerial photography operations.
Key Features
  • Image Capture: 2-megapixel lens + 1/4.3-inch CMOS sensor, 1200 TVL resolution, PAL/NTSC selectable, 16:9 aspect ratio, delivering clear aerial imagery.
  • Environmental Adaptability: 2D noise reduction, COLOR day/night mode, supports multiple scene modes, low-light sensitivity 0.5Lux, operating temperature -20°C to 70°C, suitable for diverse environments.
  • Operation settings: Supports OSD menu with bilingual Chinese-English interface for convenient parameter adjustment.
  • Power supply stability: 5-24V wide voltage input, 50mA low current consumption, ensuring stable operation without overheating.

Technical Specifications
Category Parameters
Sensor 1/4.3” CMOS Sensor
Horizontal Resolution 1200TVL
Pixel Size 3.0μm
Image Aspect Ratio 16:9
Video System PAL/NTSC Selectable
Field of View FOV: H90° V45°
Electronic Shutter Auto
Low Light Sensitivity F2.0/0.5Lux
White Balance Auto
Operating Voltage Range 5V-24V
Noise Reduction 2D
Day/Night Mode COLOR
OSD Menu Supported
Operating Temperature -20℃-70℃
Dimensions 19mm × 19mm × 23.6mm (L × W × H)
Operating Current 50mA@12V
Lens Resolution 2.0MP
Language 中文 / English
Scene Modes Auto/Color/B&W/EXT

Product Images

FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones

FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones

Customization Options
Brand Name:
SR
Place of Origin:
China
Delivery Time:
7 Days
Payment Terms:
T/T, L/C
Supply Ability:
10,000/Day
Support and Services
  • Installation and configuration assistance
  • Software update assistance
  • Troubleshooting and diagnostic assistance
  • Replacement parts and repairs
  • Product maintenance and cleaning
  • Warranty coverage
Packaging and Shipping

Package: Bubble envelope or cardboard box

Shipping: By express, air, or sea
