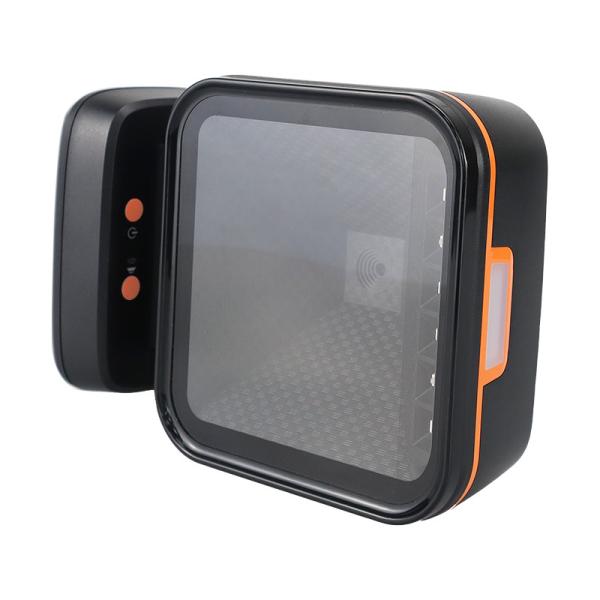

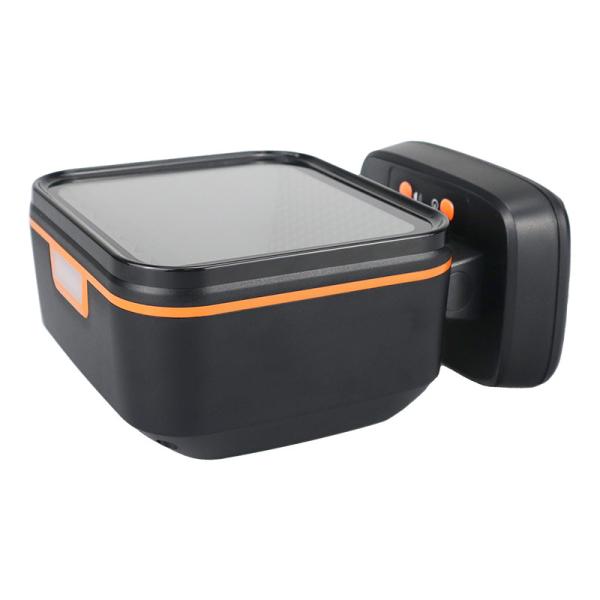

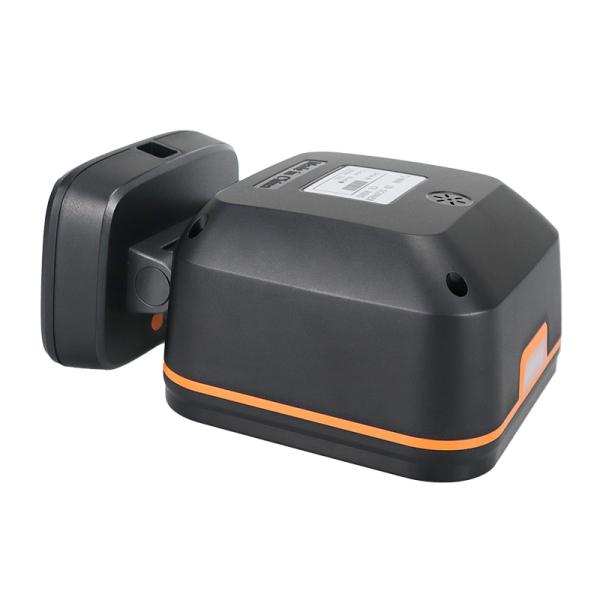

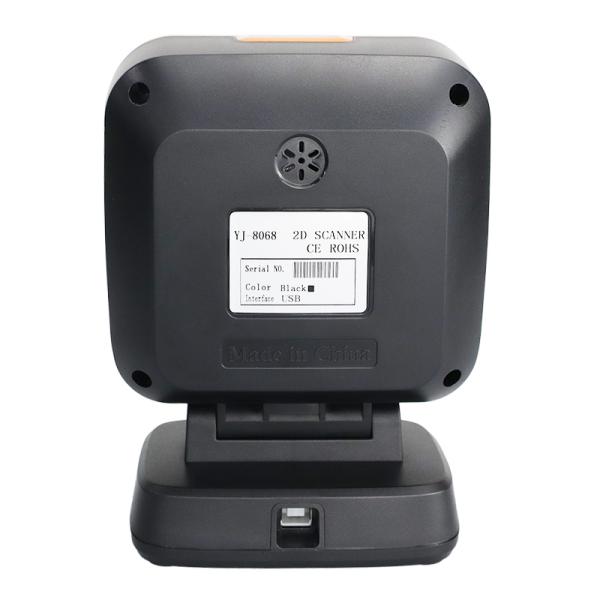

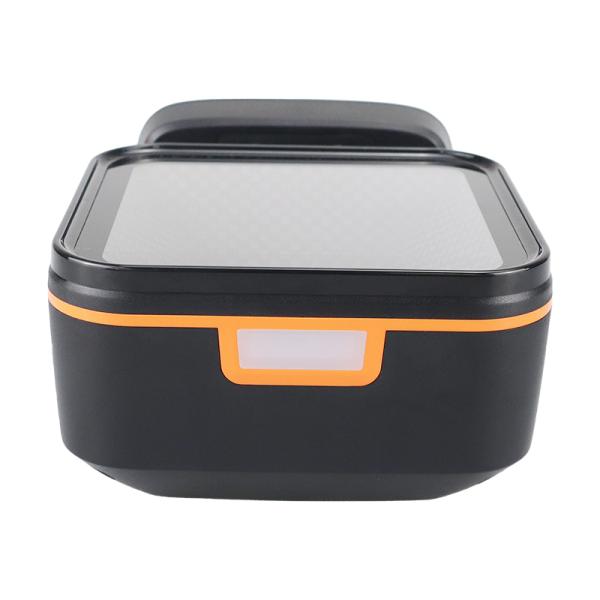

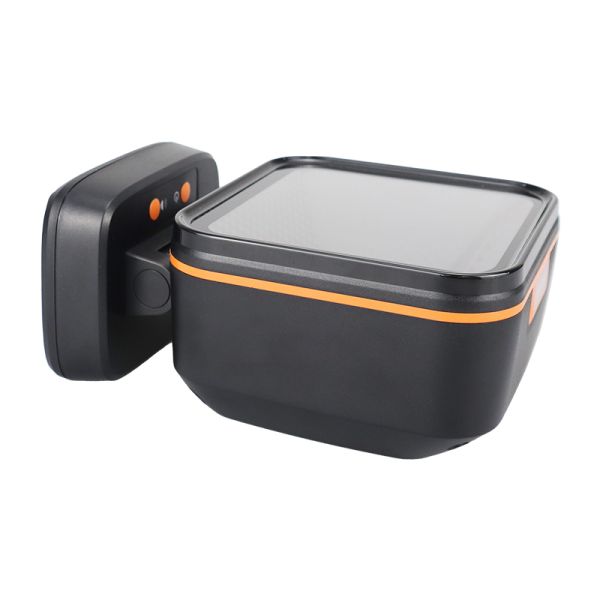

Good Quality Barcode Reader 2d Scan Platform High Speed Acquisition and Decoding Desktop Barcode Scanner

with USB Interface

Scanning Technology:

Omni-Directional Scanning: Most modern desktop scanners use 2D Imager Technology. This employs

a digital camera and sophisticated software to capture an image of the code and decode it. Key advantages:

Reads both 1D and 2D barcodes from any orientation (omnidirectional).

Reads codes displayed on screens (e.g., mobile tickets, coupons).

Can read damaged, poorly printed, or low-contrast codes more reliably than lasers.

Generally more durable (no moving laser parts).

Laser Scanning: Less common in new models, but some exist. Primarily reads 1D barcodes very quickly. Requires

precise orientation of the barcode lines relative to the laser beam.

CCD (Linear Imager): An older alternative to laser, reading 1D codes by projecting a line of light. Also requires

specific orientation.

Key Features & Capabilities:

Hands-Free Operation: The primary advantage. Frees up the user's hands to handle items efficiently.

High Speed & Accuracy: Engineered for rapid scanning with very low error rates, significantly faster than manual entry.

Ease of Use: Simple "present and scan" operation requires minimal training.

Multi-Scan Capability: Can rapidly scan multiple items in succession.

Illumination: Built-in LED lights illuminate the scan area for reliable reading in various lighting conditions.

Audible & Visual Feedback: Usually includes a beep and an LED light (e.g., green for success, red for error) to confirm

a successful scan.

Programmability: Often configurable via software or scanning special configuration barcodes (e.g., to set prefixes/suffixes,

enable/disable certain symbologies, adjust beep volume).

Wide Symbology Support: Reads a vast range of common 1D and 2D barcode types.
