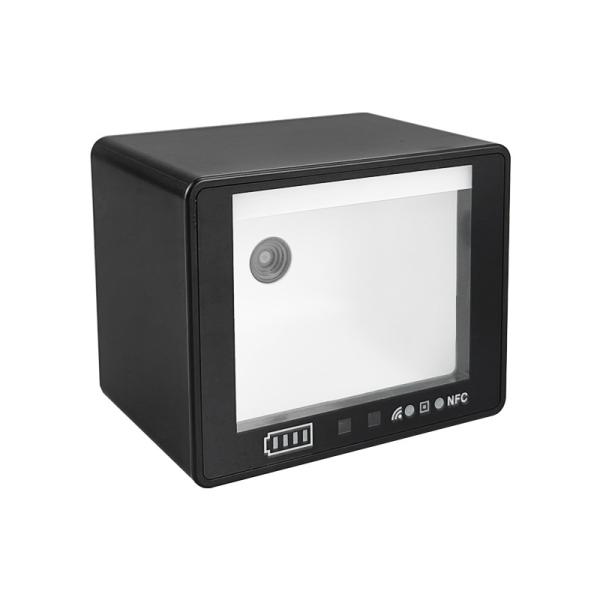

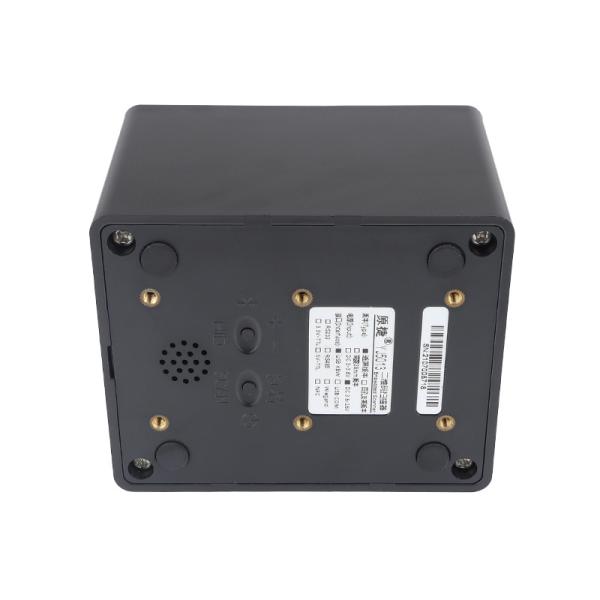

Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-5013N
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
1 - 100 pieces $49 100 -500 pieces $48 500 -1000 pieces $47
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
RFID NFC Scanner
type :
Barcode Scanner
scan element type :
CMOS
place of origin :
Guangdong, China
warranty(year) :
1-Year
after-sales service :
Return and Replacement, Others, Repair
Description

YJFIRST ISO14443 Access Control RFID NFC Scanner QR Code Card Reader RS232 Barcode Scanner for

Integrated Embedding


Features:
1. Capable of scanning both one-dimensional and two-dimensional codes
2. Bluetooth and 2.4G dual-mode wireless transmission (optional)
3. NFC card swiping (optional)
4. OCR reading (optional)
5. Voice broadcasting
6. 3.9mil paper and phone code scanning can be pasted on glass for scanning
7. Wired support for RS232 and USB, with optional RS485, Vezel, and TTL levels


Parameter

Ability to read
Identification accuracy
2 D≥ 5 mil, 1 D ≥4 mil


Scan depth of field
test condition
depth of field
Code 128 10mil 18bytes Paper copy code
0~90mm
Code 128 18bytes Mobile phone code
0~120mm
QR 10mil 160bytes Paper copy code
0~55mm
DM 15mil 100bytes Paper copy code
0~90mm
QR 18bytes Mobile phone code
0~255mm
Print contrast
Minimum 20% of the reflection difference
Customer interface
Trigger way
Infrared single induction (default), infrared continuous
Prompting mode
Buzzer, code reading, NFC, wireless LED indicator, power indicator, horn (custom *)
Wired communication interface
USB Type C
Data wire
USB Type C 1.2, m-straight line
Supply electricity
Cell
Capacity 2000mAh, available with mobile phone charger 5V 2A, charging time 2h
Operate time
10 seconds auto-sensing code scanning once, BT transmission to the host computer, working time of not less than 24 hours
Dormancy
Wake-up time less than 0.1 sec, BT recovery less than 0.1 sec
Shut down
Shutdown current approx. 500uA
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
