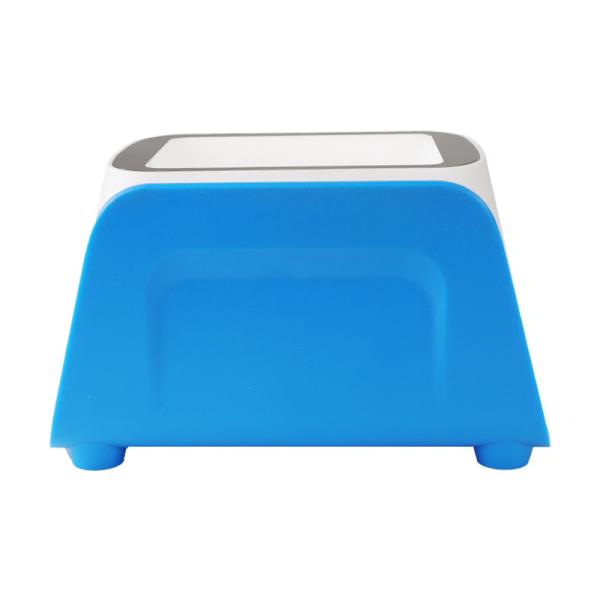

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Specifications
Brand Name :
YJFIRST
Model Number :
YJ5012
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
China
MOQ :
1 Pcs
Price :
1 - 100 pieces $18 100 -500 pieces $17 500 -1000 pieces $16
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
10000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Desktop Barcode Scanner
Application :
commercial,industry
Interface type :
USB
Decode Capabilities :
2D Code and barcode
Scan type :
Paper and screen
Description

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning


Description:


The YJ5012 is a fixed scanning device specifically designed for commercial environments, used to quickly and accurately

read various types of barcodes and QR codes. It is typically placed at fixed locations such as checkout counters or service

desks and connects to POS systems or other business systems via wired or wireless methods.Works with various code types,

including UPC, EAN, Code 128, Data Matrix, PDF417, and more.


Features:


☆Support connection to desktop computers, laptops, desktop cash registers and other devices to use Compact and sturdy

construction.


☆Enabling customer-operated scanning for self-checkout, vending machines, or information booths.


☆Processing QR-based transactions (Alipay, WeChat Pay) in cashless payment systems.


☆Plug-and-play, supporting multiple interfaces such as USB,compatible with Windows, Android, Linux mainstream systems;

☆Compact size and light weight , can be placed directly in the corner of the checkout counter, saving 80% of counter space;

Application Scenarios for Desktop Scanning Platforms

1. Retail Scenarios: Places with limited counter space such as convenience stores, community supermarkets, and snack

specialty stores. It can be placed in the corner of the checkout counter without occupying the area for commodity display or operation.


2. Catering Scenarios: Checkout counters of fast-food restaurants and milk tea shops. It can be used with POS machines

to save space for ordering and checkout, meeting the demand of peak customer flow.


3. Service Windows: Self-service areas of banks and service desks of telecommunications business halls. It can be embedded

next to business handling equipment to assist customers in scanning codes for identity verification or payment.


4. Small-Scale Offices: Front desks of start-ups and reception areas of co-working spaces. It is used for visitor registration (via

code scanning) or document scanning, without occupying the core area of the office desktop.


Products Description

Ability to read
Identification accuracy
≥5mil
Read the way
Close to, close to the reading
Scan depth of field
Test condition
Depth of field
QR 10mil 45bytes Paper copy code
0~120mm
QR 18bytes Mobile phone code
0~320mm
Code 128 10mil 9bytes Paper copy code
0~80mm
Code 128 18bytes Mobile phone code
0~150mm
Scan the Angle
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system
In line with the international and domestic general QR code standards:
QR Code, PDF417, DataMatrix), etc
In line with the international and domestic general one-dimensional code standards:
EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast
Minlowest 25% reflection difference
Interface
Standard USB
Scan pattern
Induction mode / command mode
Read success tips
LED, buzzer or speech
Data wire
1.5 m USB straight line
Enviromental parameter
Working temperature
-20℃ ~ 60℃
Storage temperature
-20℃ ~ 70℃
Humidity
Relative humidity: 5% ~ 95% (no condensation)
Ambient light
Max.100,000 Lux
Electrical parameters
Input voltage
5V (customizable 3.3V)
Working current
130mA (with no voice broadcast) / 380 mA (with voice broadcast)
Standby current
85m A


Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
