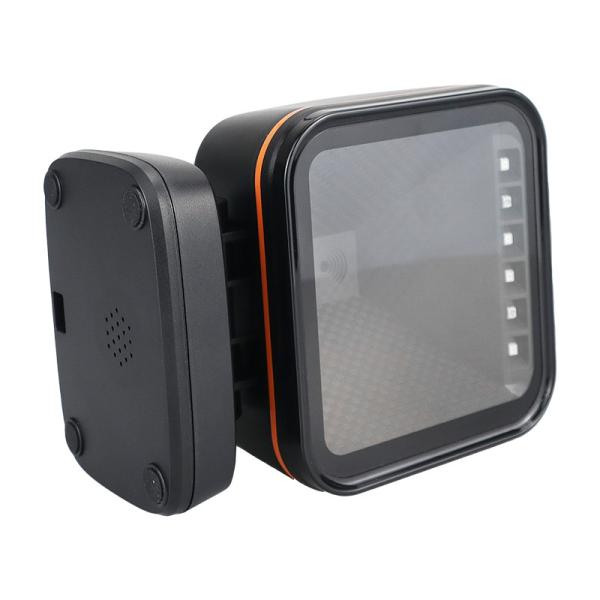

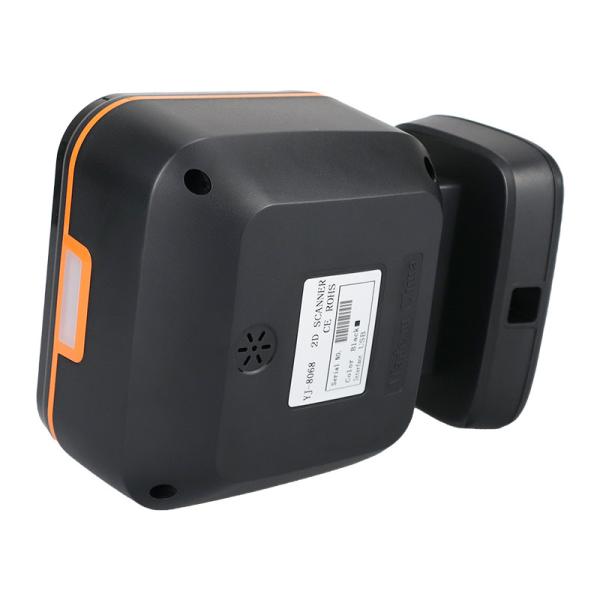

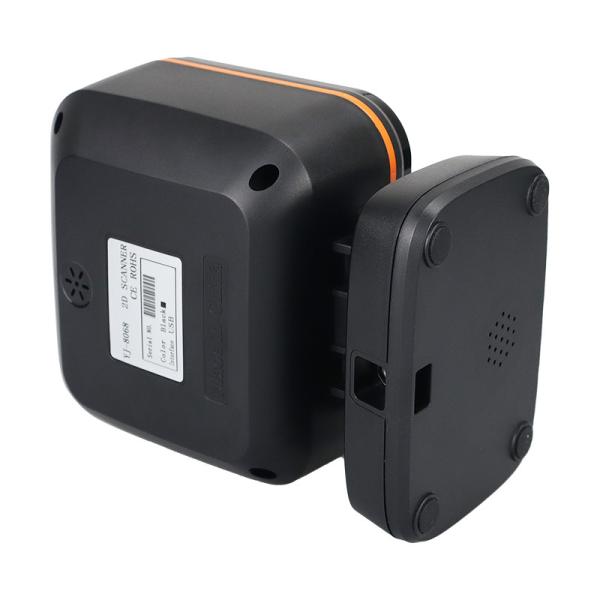

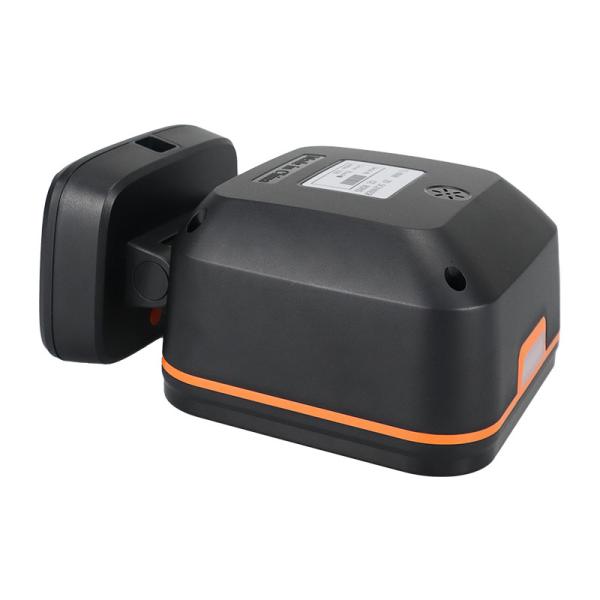

Omnidirectional 2D Barcode Desktop Scanner USB Wired Supermarket Barcode Scanner
Advantages:
High Throughput: Ideal for environments with a continuous flow of items to scan.

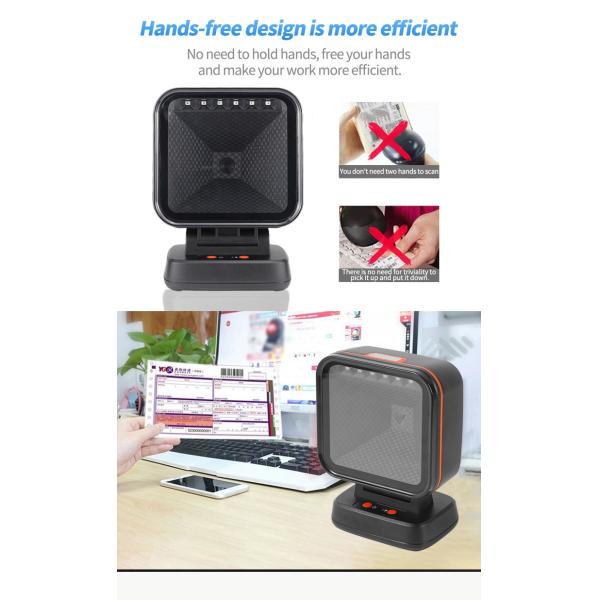

Reduced User Fatigue: Eliminates the need to repeatedly pick up and aim a handheld scanner.
Improved Ergonomics: Minimizes repetitive motions associated with handheld scanning.
Consistent Scanning: Positioned optimally for reliable reads.
Durability: Less prone to physical damage from drops compared to handhelds.
Space Efficiency: Compact design fits easily on counters.
Typical Applications:
Retail Point-of-Sale (POS): Scanning products at checkout counters.
Libraries: Checking books/media in and out.
Warehouse/Inventory Management: Processing items at receiving/shipping stations, cycle counts.
Healthcare: Patient ID wristbands, specimen tracking, medication administration at nursing stations.
Event/Attendance Tracking: Scanning tickets or badges at entry points or registration desks.
Office/Administration: Document tracking, asset management.
Loyalty Programs/Couponing: Scanning membership cards or digital coupons from phones.
Low Procurement and Maintenance Costs: Compared with traditional POS machines, many scanner boxes are more
affordable. The costs of purchase, maintenance, etc., are controllable, suitable for small and medium - sized enterprises
and individual business owners, and help reduce operating cost pressures.
Strong Compatibility: With connection methods like USB , it is compatible with cash registers, personal computers, mobile
phones and other devices. It can also be compatible with systems such as Android and Windows. Just like the “Sunmi Scanner
Box”, it is not prone to stuttering or restarting even with high - frequency use, expanding application scenarios, and no additional
investment is required for device adaptation.
Product Paramenters
2D omni directional desk barcode scanner reader wired
|
|
Read code mode
|
CMOS (Global burst)
|
|
pixel
|
640*480
|
|
Decoding speed
|
300times/s
|
|
Warranty
|
One year
|
|
Scan angle
|
adjustable
|
|
Button function
|
power switch and speaker switch
|
|
illuminant
|
617nm Red Light LED
|
|
scan pattern
|
All directional induction trigger scan / continuous
|
|
minimum resolution
|
0.127mm(5mil) @Code 39, PCS=90%
|
|
storage temperature
|
-20℃~+70℃
|
|
Storage humidity
|
5% -95% No condensation free
|
|
ambient illumination
|
0~8,600Lux (fluorescence) 0~100,000Lux (daylight)
|
|
input voltage
|
5VDC±10%
|
|
working current
|
175 The mA is typical
|
|
Depth of view Angle
|
30° V x 48° H (Vertical Horizontal)
|
|
Field of view Angle
|
48° (H) x 30° (V)
|
|
Interface support
|
USB, U SB-COM, RS-232 (optional)
|
|
carton size
|
535mm 355mm 485mm (length * width * height)
|
|
Box size
|
175mm 130mm 115mm (length * width * height)
|
|
Product weight
|
Approximately 300g (excluding packaging and accessories)
|
|
rough weight
|
Approximately 450g (including packing wire and accessories)
|
|
Cable standard
|
Direct line: 1.8m
|
|
pigment
|
Black / white
|
|
material quality
|
ABS+PC
|
|
Sealing grade
|
IP54
|
|
Fall height
|
1.5m
|
|
Decoding ability
|
EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS
|
|
QR, Data Matrix (DM), PDF417, support for mobile phone screen reading
|




FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
