White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
White Embedded Barcode Scanner 5V 3.3V QR Code Card Reader For Integrated Embedding
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES902
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$17
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Embedded Barcode Scanner
Read the success message :
LED and buzzer
Data cable (optional) :
4PIN straight line
External expansion interface :
suona ，LED
input voltage :
5V or 3.3V
Color :
White
Description

Access Control RFID NFC QR Code Card Reader RS232 Card Reader for Integrated Embedding

Product introduction

YJ-ES902 is a 2D mini high speed desktop scanner with advanced CMOS image recognition technology.

It can easily read paper, goods, screen and other media 1D 2D barcodes.

Widely used in kiosk, turnstiles, vending machines, ticket checking machines.

Features

> Mini size, wide-angle design, suitable for all kinds of mobile phone code scanning.

> Good reading performance with soft light fill light.

> Support online upgrade, customized development and secondary development.

Parameter

Collection capacity

Method of collection

Imaging, CMOS sensor

picking rate

1 / 60 second

Field of view Angle

Horizontal 62°, vertical 48.5°

Reading ability

Recognition accuracy

≥5mil

Reading methods

Close, close reading

Scan the depth of field

test condition

depth of field

Code 128 10mil 18bytes paper code

35~200mm

Code 128 18bytes mobile code

35~230mm

QR code 10mil 160bytes paper code

30~120mm

DM 15mil 100bytes paper code

35~180mm

QR 18bytes mobile code

30~380mm

Code 128 10mil 18bytes paper code

35~200mm

The Angle of view

The corner Angle is 360°, the elevation Angle is ± 55°, and the deviation Angle is ± 55°

Supported coding system

Comply with international and domestic universal QR code standards:

QR Code, PDF417, DataMatrix (ECC200), etc

Complies with international and domestic universal one-dimensional code standards:

EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, limited RSS, extended RSS, etc

Print contrast

Minimum 25% reflection difference

LED

fill-in light

white

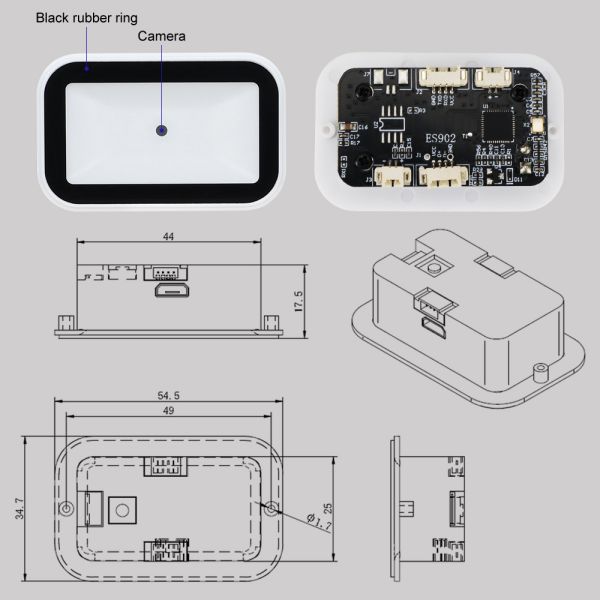

Physical parameters

size

(L x W x H)

54.5mm×34.7mm×17.5mm

weight

Less than 30g

joggle

jack

Micro USB cable socket

Typical Use Cases:

Self-checkout machines | - Assembly line tracking

Smart lockers & vending | - Medical inventory management

Key Advantage: Combines "invisible" scanning with industrial reliability for automated workflows.
