Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES228
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
YJ-ES228(USB KBW) $24 YJ-ES228(RS232) $24 YJ-ES228(TTL-5V) $24 YJ-ES228(Virtual USB serial port) $24 YJ-ES228(TTL-3.3V) $24 YJ-ES228(HID POS) $24 YJ-ES228(RS485) $35 YJ-ES228(Wiegand) $35
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Certification :
CE, ROHS, FCC, IEC, FDA
Product name :
Embedded Barcode Scanner
products status :
Stock
interface type :
USB/TTL-UART /RS232/RS485
optical resolution :
5mil
scan speed :
300 times/sec
Application :
Logistics Industry,door lock,warehouse,hospital
Description

1d/2d Barcode Reader Wiegand Usb Ticket Vending Machine With Barcode Scanner Barcode Scanner Module for

Vending Machines


Features of embedded barcode scanners


Boasting powerful barcode scanning performance and high-precision digital image acquisition capabilities, ES228 delivers

consistent and fast recognition of barcodes across all quality ranges—from standard printed barcodes to high-resolution QR

codes on mobile device screens. Its industry-standard form factor ensures broad compatibility with existing terminal device designs,

while its specialized light-resistant technology enables reliable operation in harsh intense light environments, such as outdoor kiosks,

sunlit retail spaces, and transportation hubs, making it a versatile solution for the IoT industry.


Advantages of Embedded Barcode Scanners


Seamless Integration: It can be embedded into various devices or systems, achieving a sleek and space - efficient setup

without protruding or causing interference.


High - speed Scanning: Capable of quickly reading barcodes and QR codes, improving the efficiency of data collection

and processing in busy environments.


Accuracy: Offers high - precision scanning, reducing the error rate in code recognition and ensuring reliable data acquisition.


Durability: Built with robust materials, it can withstand harsh working conditions, providing long - term stable performance.


Versatility: Compatible with a wide range of code types, making it suitable for different applications in retail, logistics, and

other industries.

Technical Specifications of Embedded Barcode Scanner

Acquisition Performance
Sensor
Image Type,CMOS Sensor, 640*480 Pixel
Acquisition Speed
1/120 fps
FOV
Diagonal 84°,Level 72°,Vertical 54°
LED
Illumination
White LED
Physical Parameter
(L×W×H)
61mm×58mm×25.2mm
Weight
about 50g

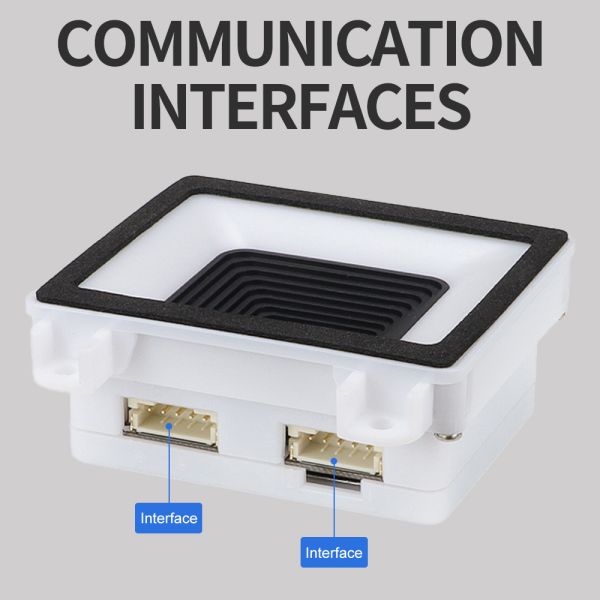

Interface

Socket
Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
12pin 0.5mm Pitch FPC socket, up and down compatible.

Interface
RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL
5 PIN: USB serial port or USB KBW (3.3V or 4-16V power)
5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power)
12 PIN: UART/USB(3.3V)
Scanning Mode
Command Mode/Sense Mode/Auto Reading Mode
Notification
Green LED, Beeper
Electrical Parameter

Input Voltage
Input with 5-pin or 12-pin FPC:
the voltage 3-3.6V or 3.6-16V (optional)
Operating Current
<200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input)
Standby Current
<5mA(3.3v Input)

1D / 2D Embedded Barcode Scanner USB Wiegand Barcode Scanner For Vending Machines

1D / 2D Embedded Barcode Scanner USB Wiegand Barcode Scanner For Vending Machines

1D / 2D Embedded Barcode Scanner USB Wiegand Barcode Scanner For Vending Machines

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express
agents you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
