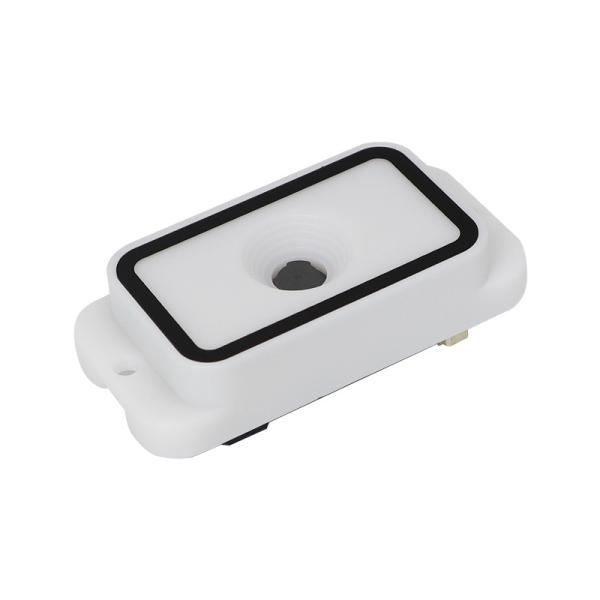

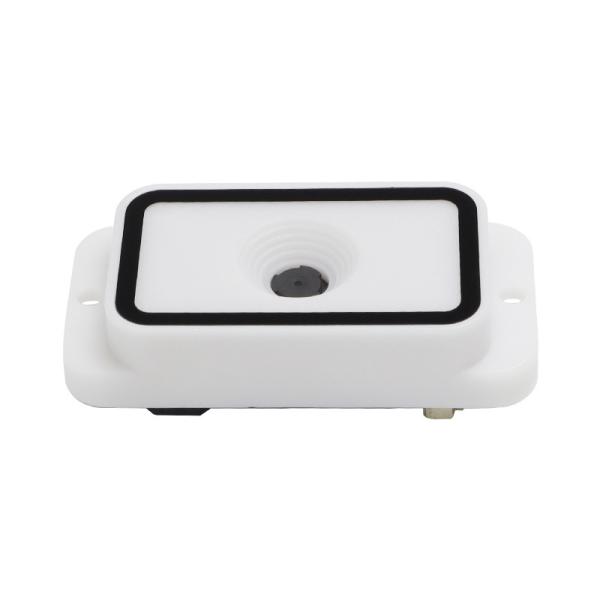

Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Embedded Mini Bar Code Scanner LED 2D USB Barcode Scanner For Payment Kiosk
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES906
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$17
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Mini Bar Code Scanner
private mold :
Yes
products status :
Stock
interface type :
usb
optical resolution :
5mil
scan speed :
300 times/sec
Description

Embedded Mini Bar Code Scanner Qr Code Scanner Barcode 2d Usb Barcode Scanner Module for Payment Kiosk Unmanned Supermarket

Parameter

Capability
Collection method
Image type, CMOS Sensor
Picking rate
1 / 60 Seconds
Field of view Angle
Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy
≥5mil
Read the way
Close to, close to the reading
Scan depth of field
test condition
depth of field
Code 128 10mil 18bytes Paper copy code
35~200mm
Code 128 18bytes Mobile phone code
35~230mm
QR 10mil 160bytes Paper copy code
30~120mm
DM 15mil 100bytes Paper copy code
35~180mm
QR 18bytes Mobile phone code
30~330mm
Code 128 10mil 18bytes Paper copy code
35~200mm
Scan the Angle
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system
In line with the international and domestic general QR code standards:
QR Code, PDF417, DataMatrix (ECC200), etc
In line with the international and domestic general one-dimensional code standards:
EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast
Minimum 25% of the reflection difference
LED
Fill-in light
White
Physical parameters
Size
5*2.4*1.6cm (Long, width and height)
Weight
About 9g
Joggle
Joggle
4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 (5V or 3.3V)
Scan pattern
Command mode / induction mode / trigger mode
Read success tips
The LED and the buzzer
Data line (optional)
4PIN straight line
Enviromental parameter
Working temperature
-20℃ ~ 60℃
Storage temperature
-20℃ ~ 70℃
Humidity
Relative humidity: 5% ~ 95% (no condensation)
Ambient light
Max.100,000 Lux
Electrical parameters
Input voltage
5V or 3.3V
Working current
130mA
Standby current
87m A
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion by email or call in time.
