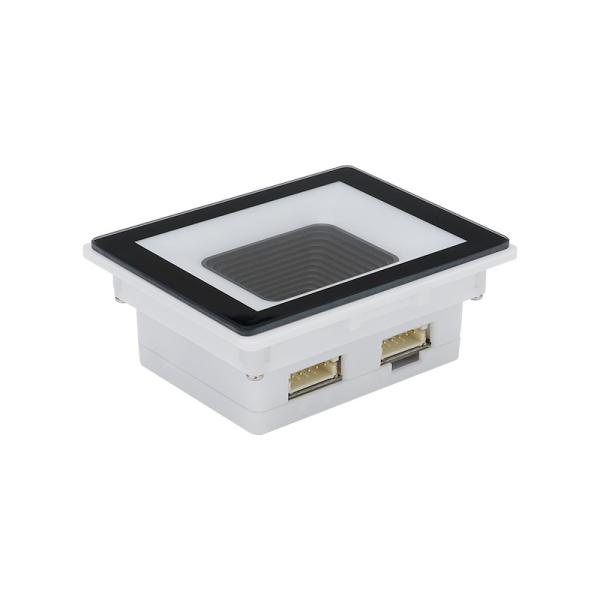

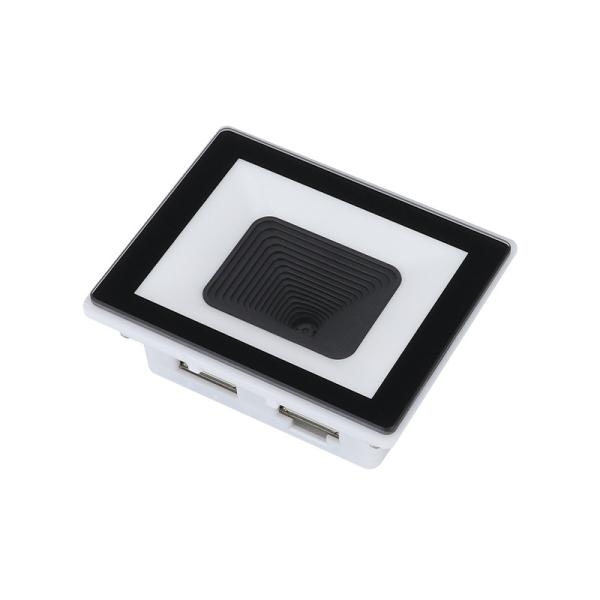

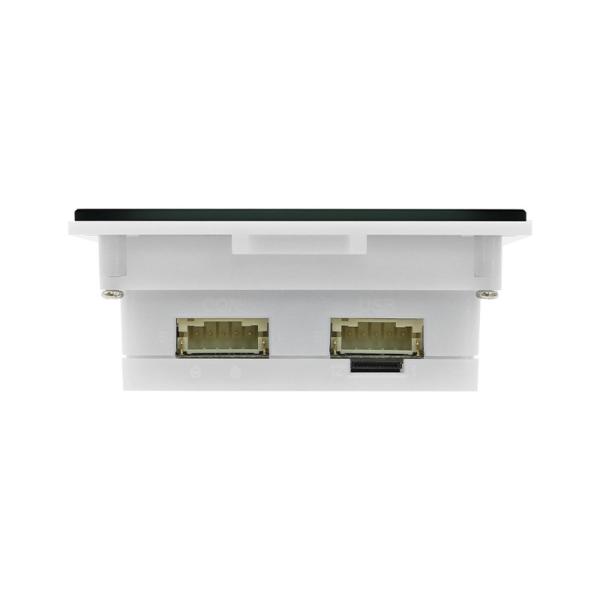

White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES220
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$30
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Barcode Access Control Reader
type :
Barcode Scanner
scan element type :
CMOS
place of origin :
Guangdong, China
warranty(year) :
1-Year
after-sales service :
Return and Replacement, Others, Repair
private mold :
Yes
interface type :
usb
Description

YJFIRST ISO14443 Access Control RFID NFC QR Code Card Reader RS232 RS485 Card Reader for Integrated Embedding

Product introduction

An embedded scanning module is a compact, integrated hardware component designed to capture and decode barcode

or QR code data. It is typically embedded into host devices (e.g., POS systems, kiosks, industrial equipment) to enable

automated scanning functionality.

Features

  • Auto-triggering (motion sensor, command-based) & multi-code batch scanning.

  • Onboard data parsing (outputs text/JSON) with optional cloud synchronization.

  • Energy-efficient designs (<1W) for battery-powered devices (handheld terminals, IoT edge devices).

  • Tailored housings, scan ranges, or add-ons (RFID, OCR, headset compatibility).

  • Industry-specific compliance (FDA for healthcare, IEC for industrial use).

Parameter

Capability
Collection method
Image type, CMOS Sensor
Picking rate
1 / 60 Seconds
Field of view Angle
Diagonal 84°, 72° horizontal, and 54° vertical
Ability to read
Identification accuracy
2 D ≥7.5 mil, 1 D ≥5 mil
Read the way
Close and close to reading, 0-30cm (according to different bar codes)
Scan depth of field
test condition
depth of field
Code 128 10mil 18bytes Paper copy code
40~150mm
Code 128 18bytes Mobile phone code
40~160mm
QR 10mil 160bytes Paper copy code
30~100mm
DM 15mil 100bytes Paper copy code
30~120mm
QR 18bytes Mobile phone code
30~200mm
Scan the Angle
Turning angle: 360°, elevation angle ± 55°, bias angle ± 55°




Support code system
In line with the international and domestic general QR code standards:
QRCode, Data Matrix, PDF417, Hanxin code, etc., comply with the international and domestic general one-dimensional code standards:
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,
ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,
Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI / MSI PLESSEY, GS1 DataBar, et al
Print contrast
Minimum 25% of the reflection difference
LED
Fill-in light
white
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient,
expliantion by email or call in time.
