Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES103
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$8
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
1D 2D Barcode Scanner
type :
Barcode Scanner
scan element type :
CMOS
place of origin :
Guangdong, China
warranty(year) :
1-Year
after-sales service :
Return and Replacement, Others, Repair
Description

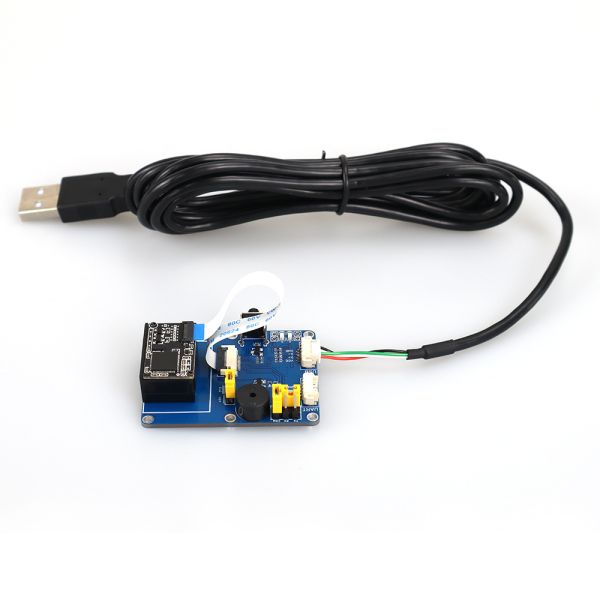

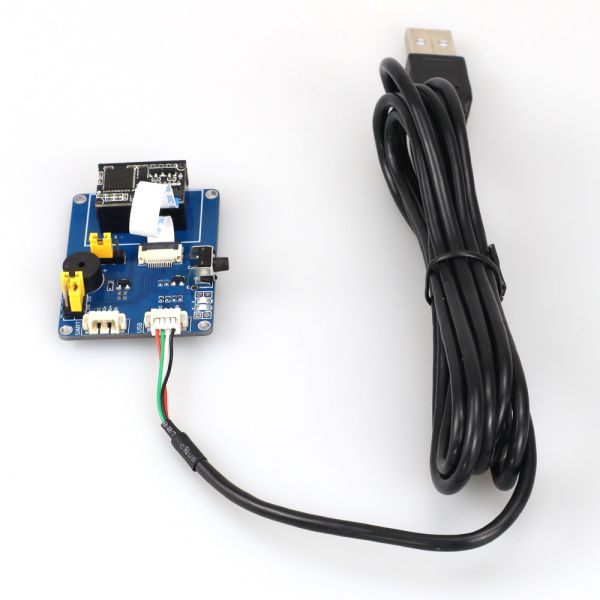

YJFIRST 1D 2D Barcode Scanner Mini Scan Engine Module for PDA Micro QR Code Reader Engine

Product Description
YJ-ES103 is a practical embedded barcode scanner module with leading CMOS image recognition technology and
intelligent image recognition system. It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read
the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable,
fixed and barcode collector, etc.
ES103 Module Specification Sheet
Scan
performance		 sensor 640×480 CMOS
lighting white light LED
focusing glow LED
Readable codes: 2D QR code, Data Matrix, PDF417 Readable codes: 2D QR code, Data Matrix,
PDF417 Readable codes: 2D QR code, Data Matrix, PDF417
Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,
1D ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar
Reading accuracy is greater than or equal to 5mil Reading accuracy is greater than or equal
to 5mil
Readable depth of field EAN-13 45mm-269mm (13mil 13 bytes)
EAN-13 45mm-269mm (13mil 13 bytes)
EAN-13 45mm-269mm (13mil 13 bytes)		 Readable depth of field
Readable depth of field
Code39 35mm-119mm (5mil 7 bytes)
7 bytes)		 Code39 35mm-119mm (5mil
Code128 43mm-310mm (13mil10 bytes)
(13mil10 bytes)		 Code128 43mm-310mm
QR code 19mm-185mm (15mil 30 bytes)
(15mil 30 bytes)		 QR code 19mm-185mm
Data Marix 45mm-116mm (10 mils, 30 bytes)
(10 mils, 30 bytes)		 Data Marix 45mm-116mm
PDF 417 40mm-105mm (6.67mil 30 bytes) PDF 417 40mm-105mm (6.67mil 30 bytes)
Contrast ratio is greater than or equal to 20% Contrast ratio is greater than or equal to 20%
The Angle of
view		 The corner Angle is 360°, the elevation Angle is ± 55°, and the
deviation Angle is ± 55°
angle of field Horizontal 36°, vertical 27°
Mechanical/ele
ctrical
components
count		 communicati
on interface		 TTL-232, USB (HID-KBW, virtual serial port)
Outer
dimensions		 21.5mm*14.5mm*10mm
working
voltage		 / Current /
power
consumption		 DC 5.0V/150mA/750mW
Wait for the
electromotive
force		 70mA
enviromental
parameter		 working
temperature		 -20℃~+60℃
storage
temperature		 -40℃~+80℃
Features
1.Mini size, widely used in wireless machine, self-service terminal.
2.Read all mainstream 1D 2D barcodes in the market easily. (4mil)
3.Support USB barcode information transmission. ( languages customization)
4.High brightness, dark environment scanning, low power consumption.

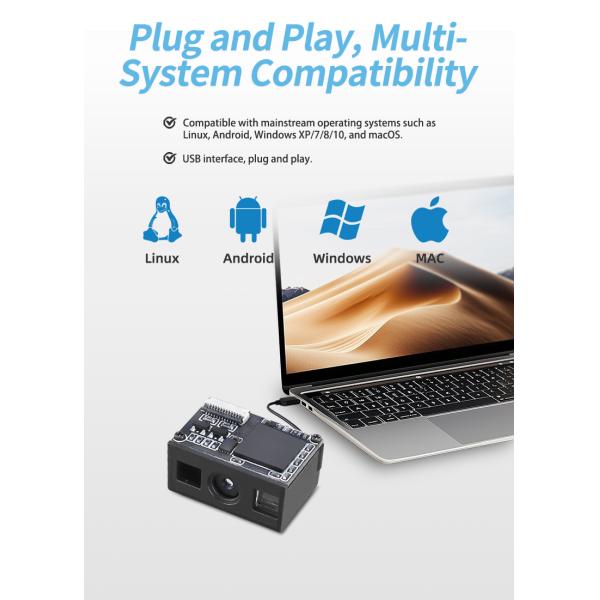

5.Support multiple systems and languages, secondary development, customization.

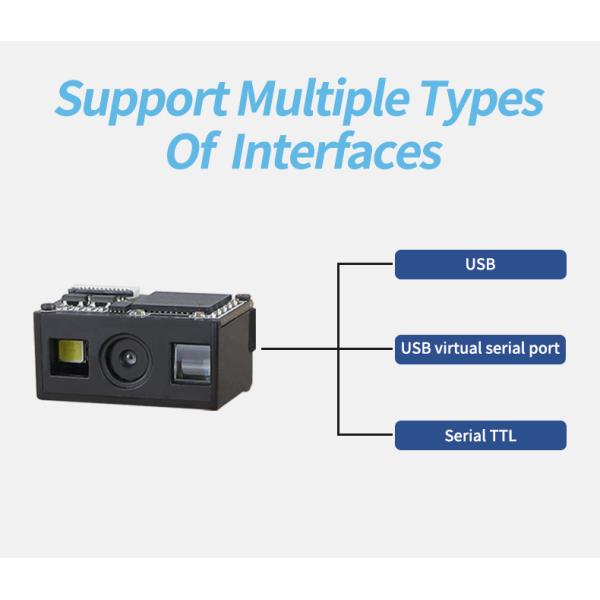

6.Interface: USB, TTL.
7.Support multiple systems and languages, secondary development.

FAQ

Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion by email or call in time.
