Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES132
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$16
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
1D 2D Barcode Scanner
communication interface :
TTL-232 、USB

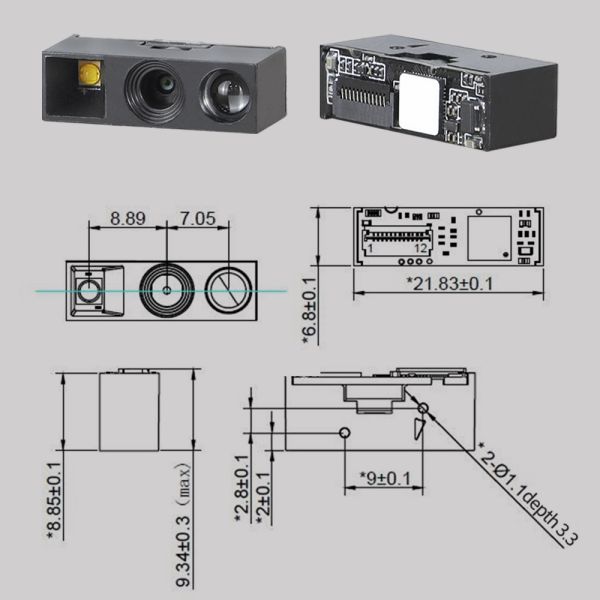

Outer dimension (mm) :
21.8(W )×6.8(D)×9.3(H)
prompting mode :
Beep, LED indicator, vibrate (custom version)
working voltage :
3.3V±5%
weight :
2g (typical value)
Description

Embedded Micro Scan Engine High Resolution Reader Long Range Barcode Reading Performance Scan Module​

Product Description

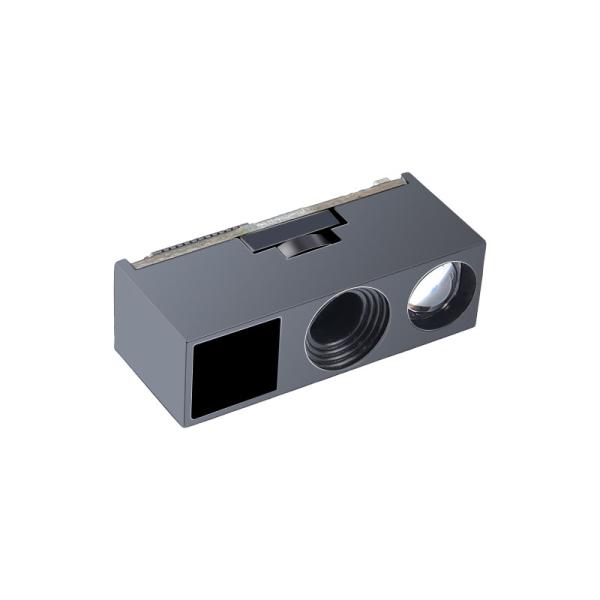

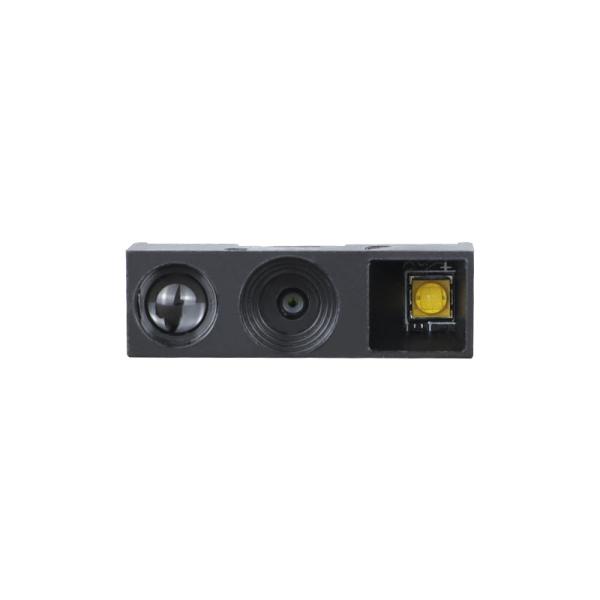

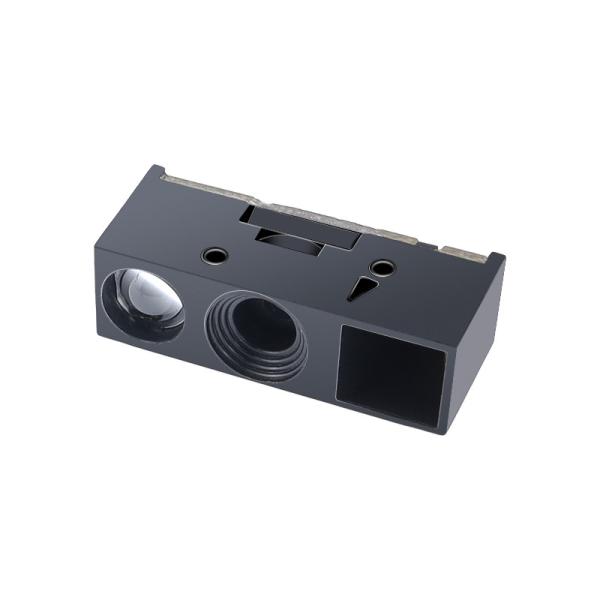

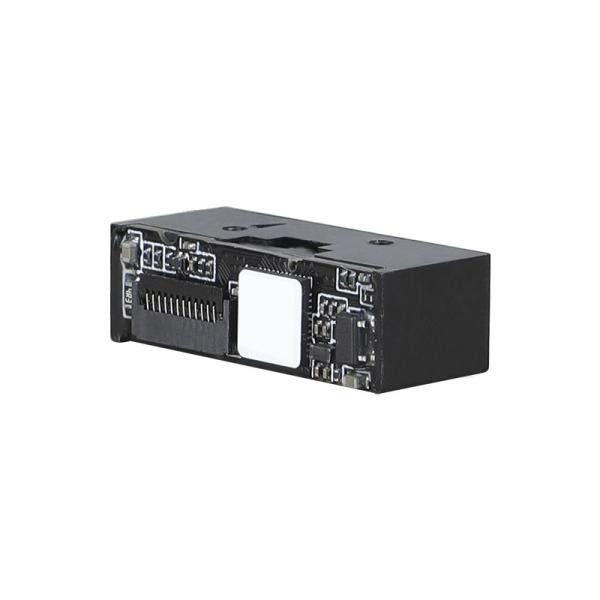

YJ-ES132 is a highly integrated 2D scan engine module with excellent performance, and as a global

scan engine module with excellent performance, it can easily read high-precision 1D codes and 2D codes.

Feature
1. High-precision small code reading
2. High-speed scanning and reading
3. High contrast scanning code reading
4. High motion tolerance performance
5. Excellent long barcode reading performance
6. Flicker-free aiming light system

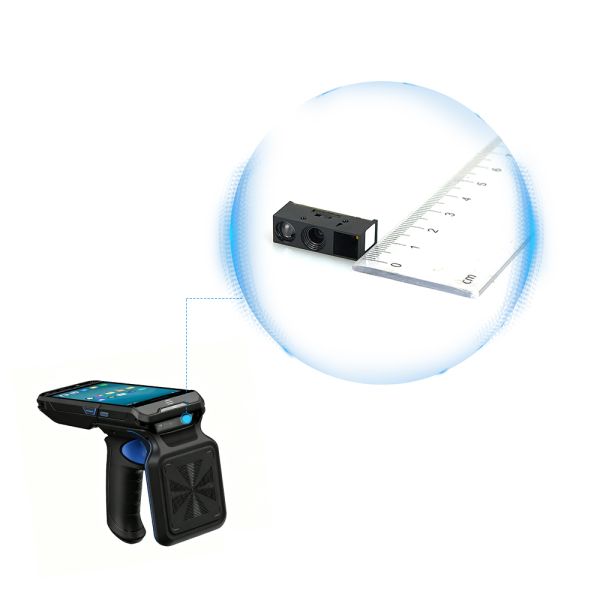

7.Mini size, can be embedded in various wireless machines, self-service terminals, etc., widely used in
various industries
Parameter

parameter

function

imaging sensor

CMOS

pixel

640*480

lighting

White light (3000K)

focusing

Green light (527 nm)

Read code system

2D

QR Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec, Maxi Code***, Hanxin***, etc

1D

EAN- 13 ,EAN-8 ,UPC-A ,UPC-E ,ISSN ,ISBN ,CodaBar, Code 128 ,Code93 ,ITF- 14 ,ITF-6 ,Interleaved 2 of 5 , Industrial 2 of 5 ,Matrix 2 of 5 ,GS1 Databar(RSS) ,Code 39 ,Code 11 ,MSI-Plessey ,etc

Reading accuracy *

One-dimensional codes 3MIL (Code39, CODE128, EAN13), QR codes 5MIL (QR, DM, PDF417)

Field of view Angle

Horizontal 42°, vertical 32°

Contrast of symbols*

≥ 15%

Typical reading depth of field *

QR (15mil)

30~210 mm

QR code (mobile phone code)

80~550mm

Data Matrix (10mil)

30- 140mm

PDF 417 (6.7mil)

50- 120mm

EAN- 13 (13mil)

50~280mm

Code 39 (8mil)

30- 190mm

Code 128 (15mil)

80~320 mm

Barcode sensitivity**

Pitch (tilt)

±60 °

revolve (tilt)

360 °

deflection (skew)

±60 °
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing
sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please
contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other
express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life
testing, shock resistance testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient,
expliantion by email or call in time.
