Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES131
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$15
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
2D Barcode Scan Engine
communication interface :
TTL-232、USB

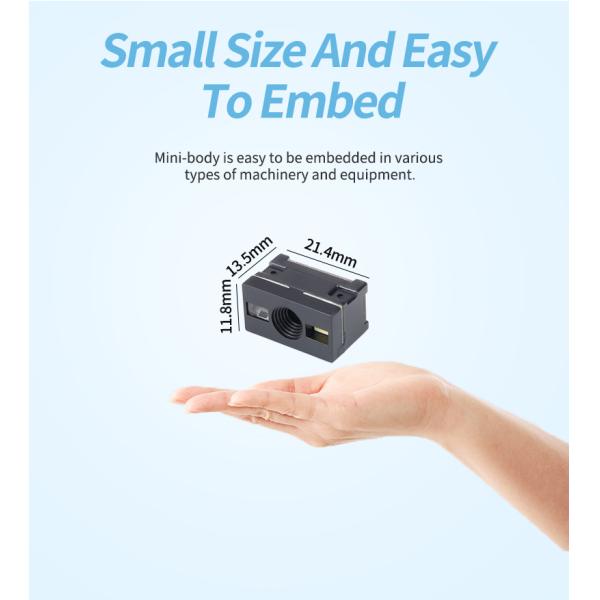

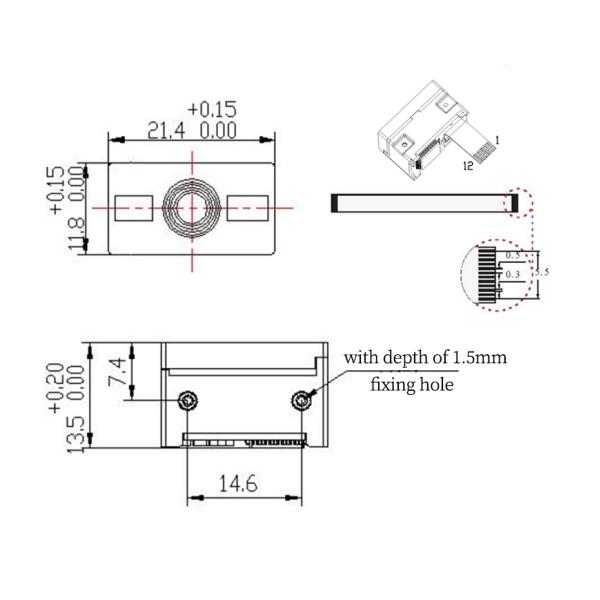

External dimensions (mm) :
21.4(W)×13.5(D)×11.8(H)
weight :
3g (typical value)
prompting mode :
Beep, LED indicator
working voltage :
3.3±5%
Description

High Quality USB UART 1D 2D Raspberry Pi Barcode Scanner Module Reader

Product Description
A barcode scanning engine (also called a barcode scanner module or scan head) is a specialized optical device designed
for rapid recognition and decoding of 1D barcodes (e.g., UPC, EAN) and 2D codes (e.g., QR Code, Data Matrix). It is typically
integrated as a modular component into self-service terminals, POS systems, industrial equipment, or mobile devices to enable
automated data capture and processing.
parameter

parameter

function

imaging sensor

CMOS

pixel

640*480

lighting

white light

focusing

Fine red light

Read code system

2D

QR code, Data Matrix, PDF417, Micro PDF417, Micro QR, Maxi Code, Hanxin, etc

1D

EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar, Code 128,Code93 ,ITF-14 ,Interleaved 2 of 5 ,Industrial 2 of 5,Standard 2 of 5,Matrix 2 of 5,GS1 Databar,Code 39 ,Code 11,MSI-Plessey,Plessey,etc

Reading accuracy*

Code39—4mil,QR—7mil,DM —5mil

Field of view Angle

Horizontal 36°, vertical 27°

Contrast of symbols*

≥20%

Typical reading depth of field *

EAN-13(13mil)

50~300mm

Code 39(5mil)

50~ 120mm

Code 39(8mil)

50~250cm

Code 128(15mil)

40~340mm

PDF 417(6.7mil)

40~ 100mm

Data Matrix(10mil)

25~ 100mm

QR Code (15mil)

25~200mm

Barcode sensitivity**

Pitch (tilt)

±65 °

revolve (tilt)

360 °

deflection (skew)

±65 °
Customization options
Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
Company Profile
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner manufacturers
in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience in the barcode
scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD barcode scanners,
wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning platforms, and more.
All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics, supermarket, retail, medical,
postal communication, office automation, manufacturing and other fields.
We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality products
at competitive prices.
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
Exhibition
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
Applications
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
Transportation
UART 1D 2D Barcode Scan Engine Customized Raspberry Pi Barcode Scanner Module
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing).
CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
