Specifications
Brand Name :
YJFIRST
Model Number :
YJ-6606
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
1 - 100 pieces $34 100 -500 pieces $33 500 -1000 pieces $32
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Belt Clip/Backclip Wearable Scanner
interface type :
Usb, Wireless, BT Wireless, Wired
scan element type :
CMOS
colour depth :
32 Bit
color :
Black
Dimension :
70*30*145mm
Description

Omnidirectional USB-C Barcode Scanner Belt Clip/Backclip Wearable Scanner for Warehouse & Trolley Use

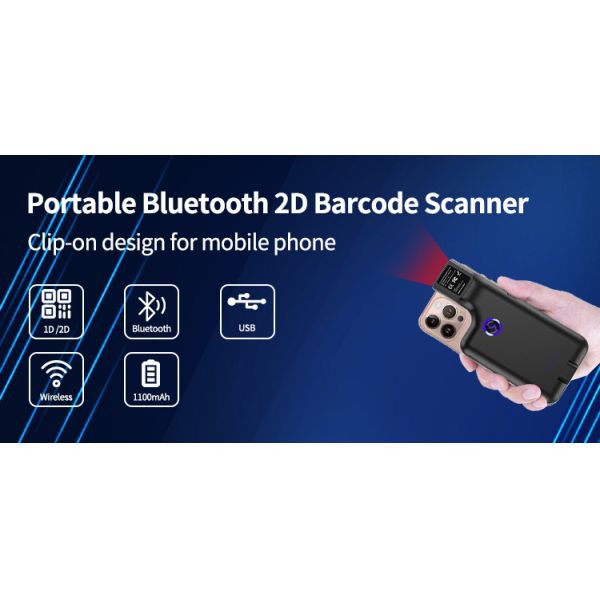

Features of the Belt-Mounted Clip-On Scanner


YJ-6606 is a high-performance phone clip-on barcode scanner equipped with a superior decoding core, enabling

efficient and accurate recognition of various 1D/2D barcodes. It supports dual-mode communication of 2.4G wireless

transmission and Bluetooth 4.0, ensuring stable long-distance data transfer. In warehouse mode, it can store up to 50,000

EAN13 product codes, significantly reducing inventory workload. Compatible with multiple phone models, the clip-on design

is convenient and easy to use, adapting to different operating habits for efficient and hassle-free barcode scanning.


Advantages of the Belt-Mounted Clip-On Scanner


1.Decoding Technology: Adopts independently developed core decoding algorithms to quickly read barcodes of various

qualities, featuring ultra-low power consumption and compatibility with multiple systems. Bluetooth transmission distance

reaches up to 30 meters indoors, ensuring stable and reliable long-distance data transfer.


2.Product Traits: Supports free switching between wired, wireless, and Bluetooth dual modes, adapting to multiple scenarios.

Built-in large-capacity secure memory can store over 50,000 barcodes during offline scanning. Exclusive intelligent power

management enables ultra-long standby time. It covers mainstream barcode types with a slim, fashionable design for easy

portability without restrictions.


3.Rich Protocols: Supports 2.4G wireless transmission and is compatible with multiple Bluetooth protocols (HID, SPP, BLE),

enabling flexible connection to various terminal devices with strong adaptability.


Application Scenarios for Waist-Mounted Clip-On Barcode Scanners


Widely applicable to supermarket/convenience store checkout, customer service desk barcode verification, warehousing

and logistics inventory management, manufacturing process tracing, O2O on-site redemption, and other scenarios, providing

strong support for mobile and efficient operations.

Technical Specifications for Waist-Mounted Clip-On Barcode Scanner


Model
YJ-6606
Illumination
625nm LED
Scan principle
Imaging CMOS
Trigger mode
Manual mode/sensing mode/continuous mode
Scan angle
Roll 360°, Pitch 65°, Skew 60°
Accuracy*
≥4.5mil
Interface
2.4G, Bluetooth, USB
Battery capacity
1100mAh
Battery charging time
4.5 hours
Continuous operating time
>10 hours (6 seconds/time)

Transmission distance

Bluetooth: 30 meters in the open air without obstacles

Wireless: 100 meters in the open space without obstacles
Dimension
70mm(L)*30mm(W)*145mm(H)
Weight
100g
Voltage
DC 5V ± 5%
Operating current
220mA
Material
ABS+TPU
Cable length
1 meter
Operating Temp.
-20 °C to 55°C
Storage Temp.
-20 ℃ to 60 ℃
Humidity
5%-95% (non-condensing)
Anti-seismic capacity
Passed 1.5m rolling drop test
Omnidirectional USB-C Barcode Scanner Belt Clip/Backclip Wearable Scanner for Warehouse & Trolley Use
Omnidirectional USB-C Barcode Scanner Belt Clip/Backclip Wearable Scanner for Warehouse & Trolley Use
Omnidirectional USB-C Barcode Scanner Belt Clip/Backclip Wearable Scanner for Warehouse & Trolley Use

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
