RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
Specifications
Brand Name :
RAKINDA
Model Number :
RD005
Certification :
CE, RoHS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Resolution Ratio :
640x480
Read Card Distance :
0~5cm
Voltage :
5~24V
Weight :
260 g
Water proof and Dust Proof Rating :
IP65
Description

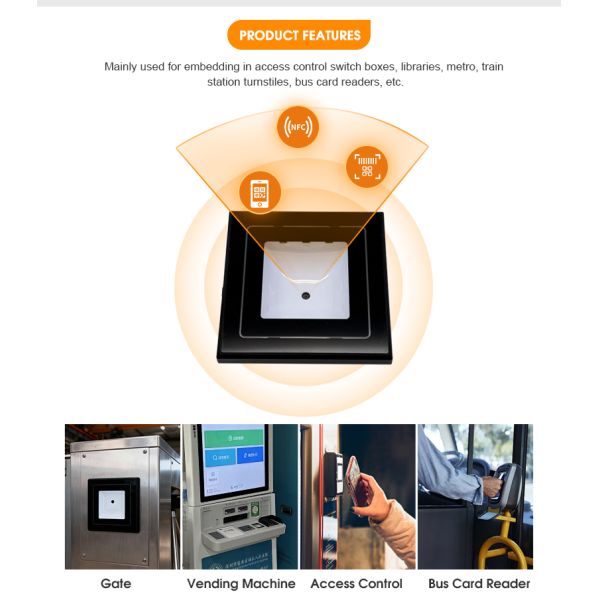

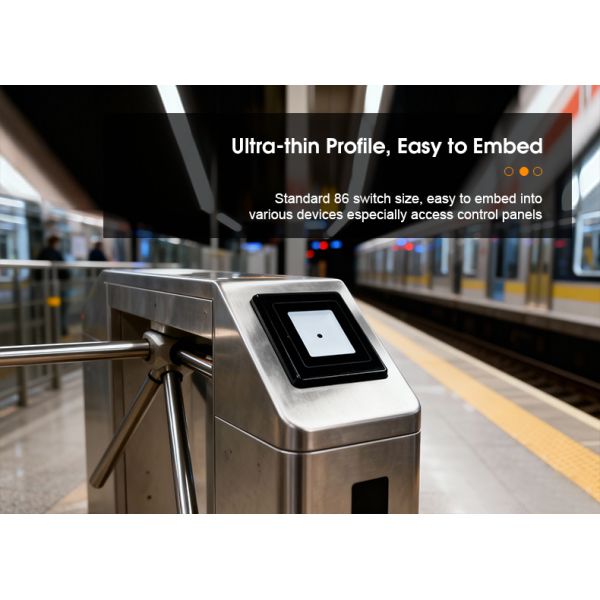

The RD005 is a high-performance 1D/2D barcode scanner module designed for demanding industrial environments. Equipped with advanced CMOS imaging and intelligent recognition algorithms, it delivers fast and accurate scanning of QR codes, Data Matrix, PDF417, and more—even from mobile screens. With IP65 dustproof and waterproof protection, the RD005 ensures long-term reliability in harsh conditions. It also integrates a powerful NFC reader supporting Mi fare, ISO/IEC 14443A/B cards, Apple Pay, and Samsung Pay. Ideal for access control systems, turnstiles, ticketing gates, and smart kiosks, the RD005 offers seamless compatibility with Windows, Linux, Android, and iOS.

Parameters

Identifying Parameters
Reading Mode CMOS
Resolution Ratio 640x480

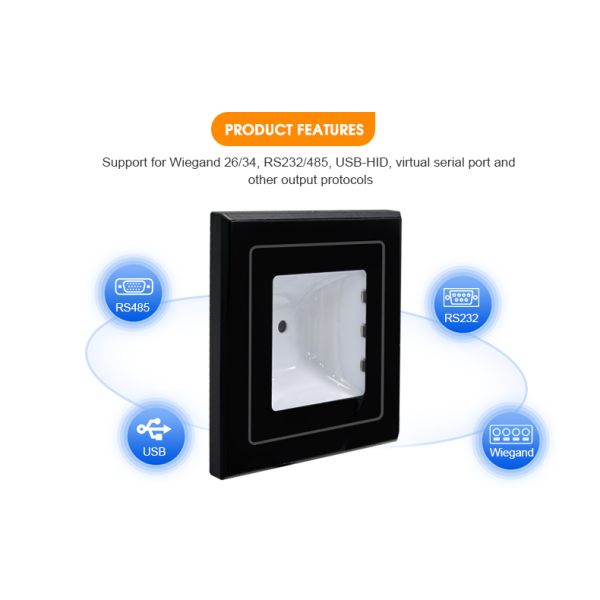

Interface Type USB / Wiegand /Option: TTL /RS232 / RS485

Code

Reading

System

 2D QR Code,Micro QR,PDF417,Micro PDF 417,Data Matrix(ECC 200),Grid Matrix ,Aztec
1D Code11 ,Code39 ,Code93 ,Code 128,EAN-13,EAN-8, UPC-A, UPC-E ,Codebar ,Standard 2of 5, Matrix 2 of 5,Interleaved 2 of 5,MSI ,GS1,Plessey,Telepen
Literacy and Lliteracy Rates ≥ 7mil
Know the Depth of Field 10mm~100mm
Print Contrast ≥ 30%
Barcode Rotation Sensitivity 360° @ 0° Pitch and 0 ° Skew
Barcode Tilt Sensitivity 60° @ 0° Roll and 0 ° Pitch
Barcode Deflection 40° @ 0° Roll and 0 °Skew
Sensitivity
Ambient Light 0 ~ 100,000 LUX
NFC
Frequency 13.56MHz
Protocol Type ISO/IEC 14443 TypeA/B
ISO/IEC 18092 P2P passive initiator mode
Type of Card Read

Support for mobile payment apps such as Apple Pay and Samsung Pay

Supports Mi fare series compatible cards,ISO/IEC 14443 A/B standard card NFC mobile phone, second generation ID card
Read Card Distance 0~5cm
Electrical Character
Read Card Distance 0~5cm
Electrical Character
Maximum Power Dissipation 1.25W
Voltage 5~24V
Current Maximum current 250 mA
Working current 200 mA
Weight 260 g
Work Environment
Working Temperature -20℃~ +60℃
Storage Temperature -40℃~ +80℃
Humidity at Work 5% -95% (no condensation)
Water proof and Dust Proof Rating IP65

RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution

RD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control SolutionRD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control SolutionRD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control SolutionRD005 QR Code Scanner & NFC Card Reader – Industrial IP65 Access Control Solution
