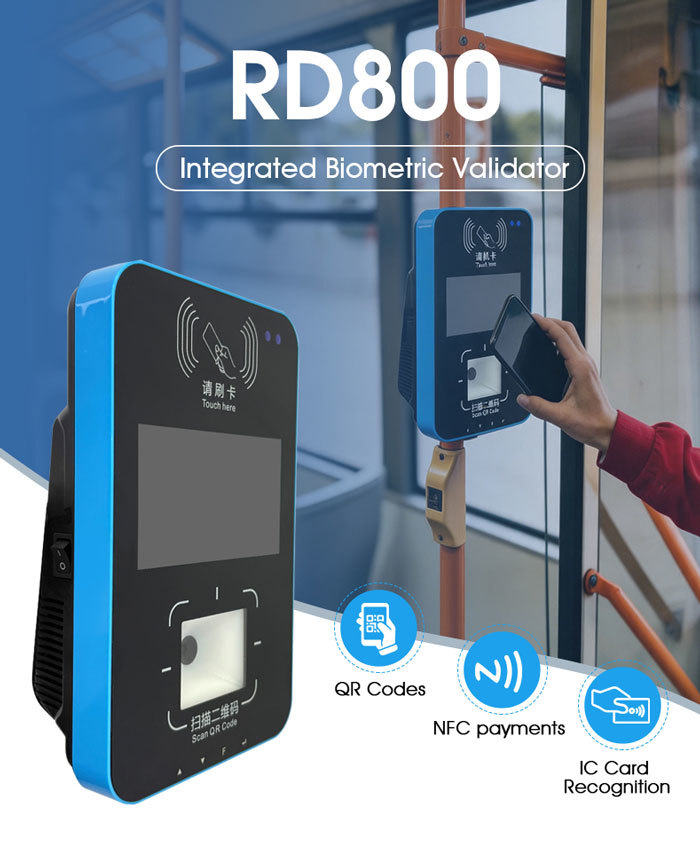

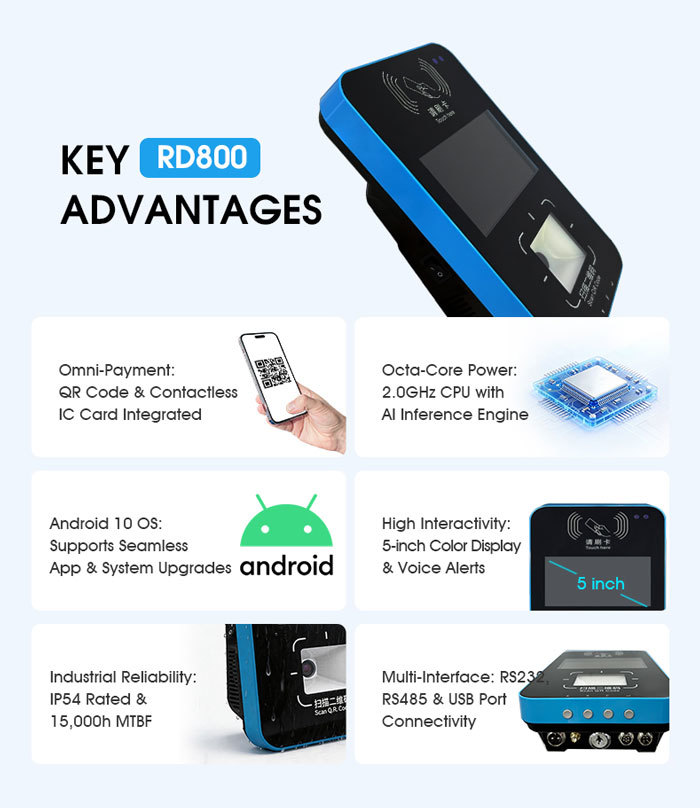

RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
RD800 Transit Validator
Specifications
Brand Name :
Rakinda
Model Number :
RD800
Certification :
CE,FCC, ROHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Normal craft paper and foam
Description

Search top-rated IP54 rugged transit POS — Rakinda RD800 onboard ticketing machine engineered to withstand harsh vehicle operation environments for long-term public transport deployment. This heavy-duty bus card reader features an IP54 dustproof & waterproof shell with 9–36V wide DC voltage protection, operating reliably in extreme temperatures ranging from -20°C to +70°C while resisting continuous road vibration and heat buildup. Built with ultra-high industrial reliability: over 1 million card read-write cycles and 100,000 durable button presses eliminate frequent maintenance costs for transit fleets. The compact, lightweight design (only 1000g) supports fast wall/mount bracket installation with minimal wiring work, ideal for retrofitting old bus fare collection systems. Integrated RTC backup battery, dual status indicators, built-in speaker and buzzer complete the human-machine interaction system, while industrial-grade serial communication ports ensure seamless data linkage with backend transit management platforms.

Parameters of Integrated Biometric Validator

Basic module
Processor Eight-core processor (4 Cortex-A53 2.0GHz cores + 4 Cortex-A53 1.5GHz cores)
Memory RAM: 2GB / ROM: 32GB (non-volatile memory ≥ 8KB)
Operating System
Communication network Supports 4G LTE Full Network Support
WIFI/ PDA IEEE 802.11 b/g/n 2.4G, supports Bluetooth 4.0
Positioning Supports GPS/Beidou dual-mode positioning
Display screen 5-inch color LCD screen with a resolution of 720*1280
Slot extension Supports 4*PSAM cards and 1*SIM card
Payment module Card reader: Supports ISO 14443 TYPE A/B, 2.4G RF-SIM (optional),and ID card (optional)
Scan the QR code (QR 1/2, Micro) with 360-degree rotation and ±40° tilt recognition
Interfaces
Serial interface 1* RS232 (Ŏ12mm) small keyboard, 1* RS232 (Ŏ16mm), 1* RS485/232 (Ŏ12mm)
USB 1xUSBport(on the side)
Human-computer interaction 4 function keys (Up, Down, Back, Confirm), 2 status indicators, 1 three-digit display
Audio output 1* Speaker (4Ω 3W), 1* Buzzer
Power supply specifications
Power input DC 9-36V (Ŏ12mm aviation connector)
Clock battery RTC battery capacity:≥210mAh
Installation and Environment
Size 235 (L) * 145 (W) * 77 (H) mm(without bracket)
235 (L) * 145 (W) * 118.7 (H) mm (with fixed bracket)
Weight Approximately 1000 grams
Work environment Temperature: -20°C to +70°C; Humidity: 15% to 95% RH (no condensation)
Product Property
Reliability IP54; ≥1 million read/writeoperations; over 100,000 button presses
