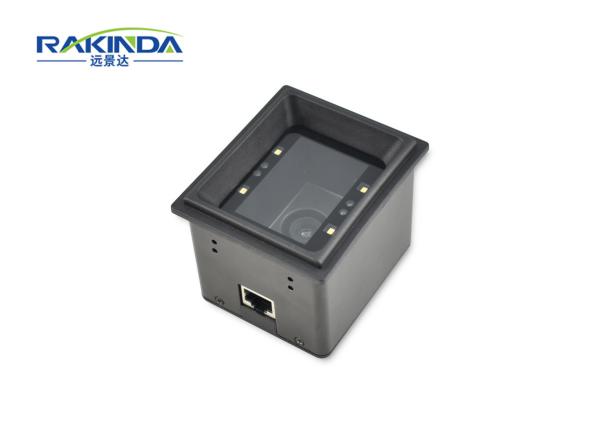

RD4600 1D / 2D QR Fixed Mount Barcode Scanner , USB RS232 Barcode Scanner
RD4600 1D / 2D QR Fixed Mount Barcode Scanner , USB RS232 Barcode Scanner
RD4600 1D / 2D QR Fixed Mount Barcode Scanner , USB RS232 Barcode Scanner
RD4600 1D / 2D QR Fixed Mount Barcode Scanner , USB RS232 Barcode Scanner
Specifications
Brand Name :
RAKINDA
Model Number :
RD4600
Certification :
CE, RoHS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 PCS/ week
Delivery Time :
within 5 working days after receiving the balance
Packaging Details :
barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Item name :
Fixed Mount 2D Barcode Scanner
Reading Precision :
≥ 10mil
Cable :
USB, RS232
Features :
Big scanning window with white light
Color :
All black
Operating Voltage :
3.3±10% VDC
Weight :
280g
Size :
78.6 x 67.3 x 55.3mm
Description

RD4600 1D/ 2D QR Barcode scanner USB RS232 Scanner from Rakinda

Features

1. Digital Barcode Data Capture

Capable of scanning 1D and 2D (PDF417, QR Code and Data Matrix) bar codes from screen of the mobile phones, tablet in poor light.

2. Swift Decoding

Delivers easy, accurate scanning of bar codes on kinds of LCD screens mobile phone, tablet and so on with different contrast ratios, colors and reflectance.

3. Easy to Use

Simple configuration by scanning the programming barcodes that will be provided in the user guide.

4. Dustproof and waterproof

The RD4600 barcode scanner module is dustproof and waterproof because it has a cover lid with industrial encapsulatesand.

Technical Specifications of RD4600 Fixed Mount 2D Barcode Scanner

RD4600 1D / 2D QR Fixed Mount Barcode Scanner , USB RS232 Barcode Scanner

Performance Image Sensor 752*480 CMOS
Illumination White LED
Symbologies 2D PDF417, Data Matrix, QR Code, Chinese Sensible Code.
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey.
Resolution* ≥ 5 mil
Scan Mode Sense mode, Continuous mode
Scan Angle** Pitch: ±40°, Roll: 360°, Skew: ±40°
Scan Window 31.5mm×46.5mm
Symbol Contrast ≥25%
Interface RS-232, USB
FOV Horizontal: 75°, Vertical: 50°
Physical/Electric Dimensions (LxWxH) 78.7(W)×67.7(D)×53(H)mm (max.)
Weight 173 g
Notification Beep
Power consumption 534mW (typical)
Operating Voltage 5VDC±5%
Current@5VDC Operating Current: 108mA (typical), 114mA (max.)
Environmental Operating Temperature -20℃~60℃
Storage Temperature -40℃~70℃
Humidity 5%~95% (non-condensing)
ESD ±8 KV (air discharge); ±4 KV (direct discharge)
Certification FCC Part15 Class B, CE EMC Class B
Accessories Cable USB Used to connect the scanner to a host device.
RS-232 Used to connect the scanner to a host device.

RD4600 1D / 2D QR Fixed Mount Barcode Scanner , USB RS232 Barcode Scanner

About Rakinda


RAKINDA is a company committed to the development up to bar code technology at the core of the automatic identification system integration organizations, enjoyed several years of industry experience and excellent reputation, in Shenzhen and Hong Kong branches, and has a very skillful, experienced, innovative R & D and after-sales technical support service team.
Rakinda Group, the manufacturer of barcode scanner module, was established in 2000. We have offices in Guangzhou, Shenzhen, Hongkong, Xiamen, Suzhou and Beijing. And we have been supplying the barcode scanner module for Walmart, Carrefour and Foxconn etc.
