Specifications
private mold :
Yes
products status :
Stock
type :
Barcode Scanner
scan element type :
CMOS
colour depth :
32 Bit
interface type :
usb
max paper size :
A4 size
Brand Name :
WCMI
Place of Origin :
Tianjin, China
warranty(year) :
15 months
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Black
Image (Pixels) Senso :
640x480CMOS@100fps
View Angle :
Horizontal 32°, Vertical 24°
Precisions :
1d ≥4mil / 2d ≥10mil
Dimensions :
138.18mm x 101.51mm x 63mm
Prompt Mode :
LED prompt,Vibration motor and buzzer
Light source :
Red LED
Scan Angle :
Rotation: 360°, Pitch: 60°, Deflection: 60°
Symbol Contrast :
≥15%
Line Length :
1.8m
Language Supported :
English/Customized
Description
Product Description

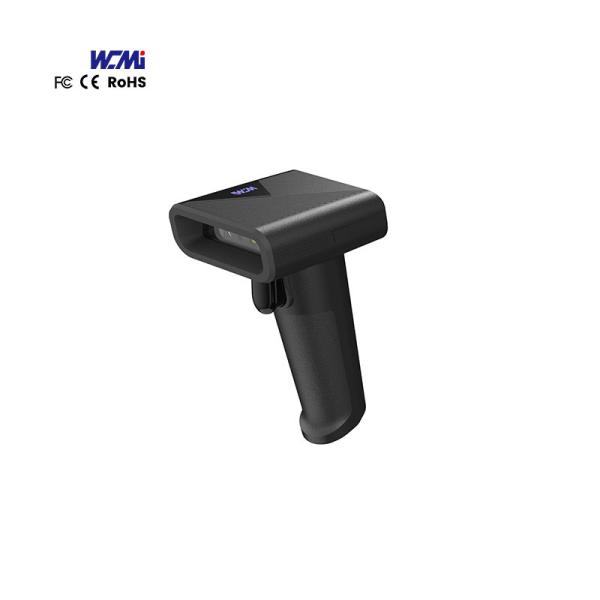

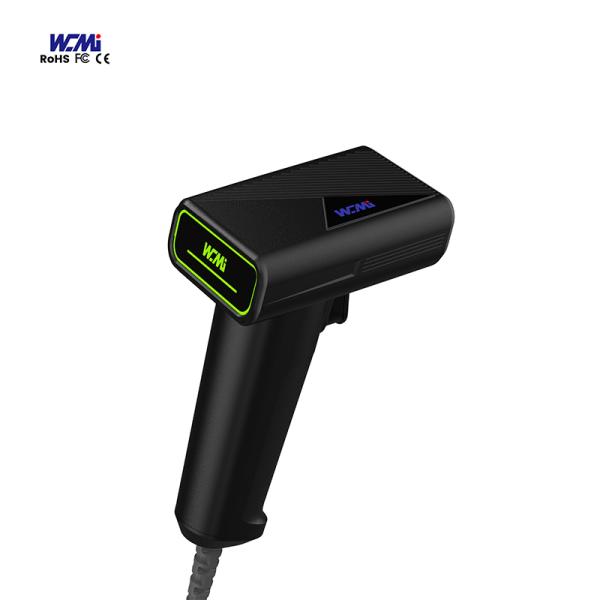

SD5130 is a wired handheld barcode scanner with a minimum 4mil identification density. The product has excellent paper and screen barcode scanning performance. The lighting of SD5130 can be customized according to requirements,it supports scan code buzzer feedback and vibration feedback. It can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, SD5130 can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments). With a high-speed camera optical technology, SD5130 is suitable for smart scenarios such as restaurant, supermarket, hotel, governments and so on.
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
A SD5130 Quickly WCMI Desktop Barcode Scanner Engine Supermarket 2d Handheld Barcode Scanner
Specification
Product Parameters




General
Type
Handheld Barcode Scanner
Product Model
SD5130
Brand Name
WCMI
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
15 months
After-sales Service
Return and Replacement; Free spare parts
Certification
CE、RoHS、FCC
Language Supported
English/Customized





Scan Code Performance
Image (Pixels) Sensor
640 X 480 CMOS @ 30fps
Light Source
Fill Light: White 6500K LED / Aiming Light: Red LED
View Angle
Horizontal 32°, Vertical 24°


Decoding Capability
2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、
Code128、Code39、Code93、CodaBar 、Interleaved 2
of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI
Plessey 、RSS-14、RSS-Expand、RSS-Limited、
Standard 2 of 5、Code 16K、Plessey、ChinaPost


Depth of Field
Code39: 40~105mm （5mil）
EAN13: 40~280 mm （13mil）
CODE128: 45~370 mm （15mil）
QR:20-210mm(15mil)
Scan Angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°

Scan Mode
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
Precisions
1d ≥4mil / 2d ≥10mil
Symbol Contrast
≥15%


Physical Parameters
Weight
<200g
Dimensions
138.18mm x 101.51mm x 63mm
Interface
USB
Prompt Mode
LED prompt，Vibration motor and buzzer
Voltage
DC+5V ±5%
Line Length
1.8m
Current
320mA

Environmental Parameters
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
