Specifications
Brand Name :
Taiye
Model Number :
TZ79
Certification :
ISO9000
Place of Origin :
China
MOQ :
10 Rolls
Price :
To be negotiated
Payment Terms :
D/A, L/C, T/T, Western Union
Supply Ability :
50 Tons per week
Delivery Time :
Within 15 days or as your need
Packaging Details :
Waterproof Paper inside and woven bags outside
Product name :
Cbt-60 Concertina Razor Barbed Tape Wire Usded On Chain Link Fence Razor Fence
Wire diameter :
2.5mm
Type :
CBT-60
Sheet Thickness :
0.45mm
Razor Lengt :
60mm
Packing :
8kg/roll
Description

Cbt-60 Concertina Razor Barbed Tape Wire Usded On Chain Link Fence Razor Fence

Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.

Material for Razor Barbed Wire Fencing: Galvanized blade, stainless steel blade.

Features: Compact and rational structure, high safety factor, for the protection of prison and key project.

Technical note: Razor barbed wire fencing can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.

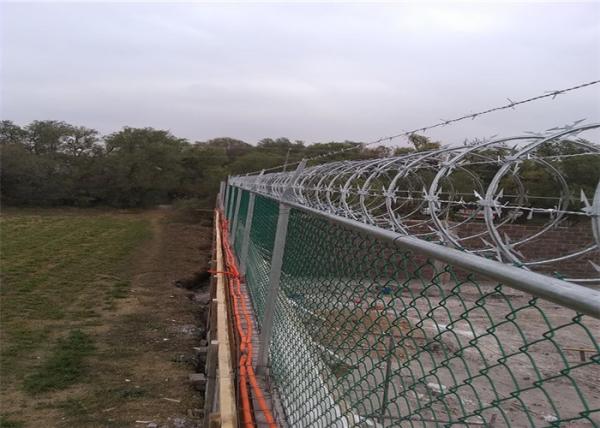

In order to install a razor concertina fencing needs razor barbed wire and other items. There is a fencing example:

  • Concertina barbed wire: 750 mm Dia.

  • Barbed wire.

  • Fabric: 3.76/4.88 mm, 3 m high, mesh 50 mm × 50 mm coated.

  • Brace rail pipe; 89.9 mm, 4 m high length coated epoxy green.

  • Line post: hollow section 100 × 100 × 4 × 3000 mm with base plate and top cover (post cap) coated.

  • Double arm 50 × 50 × 5 mm each 500 mm long with 6 notches (epoxy angle plated).

  • Tie wire: 2.5 mm / 3.76 PVC coated.

  • Base plate 300 × 300 × 6 mm with epoxy paint finish.

  • Slats.

Cbt -60 Concertina Razor Barbed Tape Wire On Chain Link Fence Razor Fence

Specification

Blade

specification

Blade

thickness

Cor.

Wire diameter

Blade

length

Blade

width

Blade

space

CBT-60

0.6±0.05

2.5±0.1

60±2

21±1

100±2

EX. dia

loops

Standard covering length

Production

model

remarks

450mm

33

8m

CBT-65

Single coil

500mm

41

10m

CBT-65

Single coil

700mm

41

10m

CBT-65

Single coil

960mm

53

13m

CBT-65

Single coil
Cbt -60 Concertina Razor Barbed Tape Wire On Chain Link Fence Razor Fence
