0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24
0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24
Specifications
Brand Name :
BSC
Model Number :
DRV24
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-10 days
Packaging Details :
Carton
Surface :
Power Coating
Color :
7047
Speed :
24 m³/h
Ultimate vacuum :
0.5 Pa
Noise level :
63 dB(A)
Motor Power :
0.75 kW
Voltage :
220V/single phase and 380V/3 phase are both aviliable
Description

DRV24 Double Stage Oil-lubricated Rotary Vane Vacuum Pump with 6L/s

The rotary vane technology enables a technically simple structure of the vacuum pumps. The consistently high vacuum level in continuous operation is guaranteed through circulating oil lubrication, perfectly coordinated materials and state-of-the-art and precise manufacturing. The standard oil separator ensures clean and oil-free exhaust thanks to its sophisticated extractor system with integrated oil return. When fitted with an optional gas ballast valve, even large amounts of vapour can be processed. A non-return valve in the inlet flange prevents air from flowing back into the vacuum chamber when the vacuum pump is switched off.

​Technical Data

Units DRV24
Pumping Rate 50 Hz m³h-1 / Lmin-1 24/336
60 Hz 28/403
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 4/4×10-2
Inlet KF25
Outlet KF25
Oil Needs liter 1.7
Noise Level dB 63

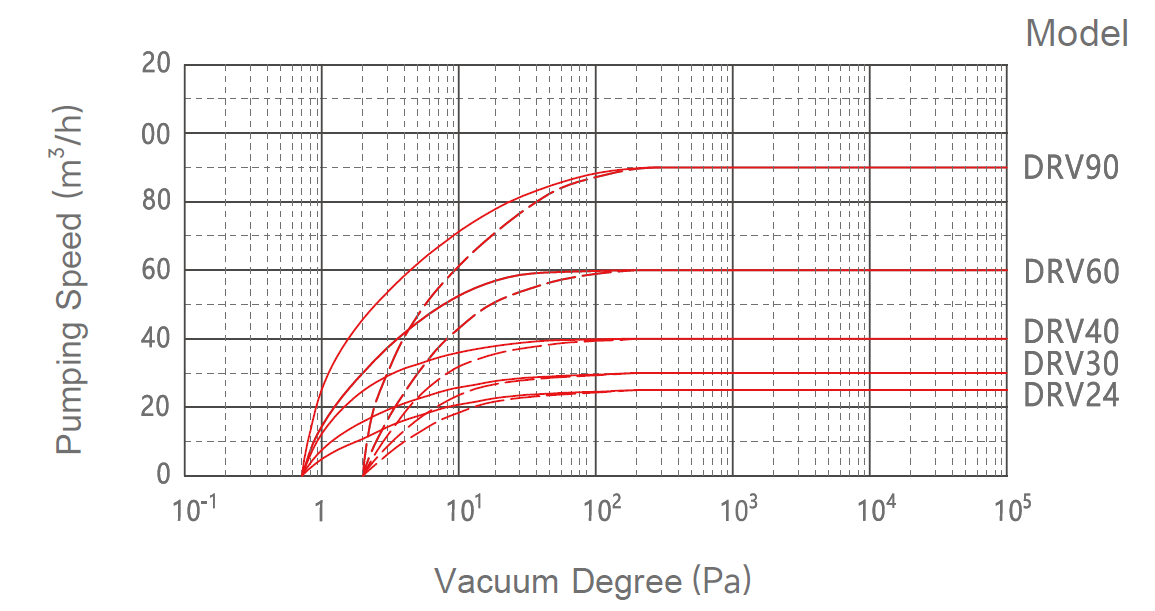

Performance Curve

0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24

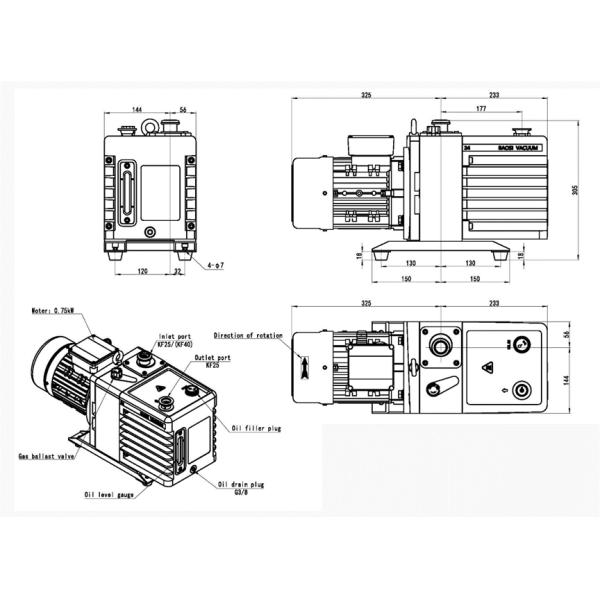

Dimensions

DRV24

0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24

Application

Vacuum metallurgy

Thin-film coating

Freeze drying

Lab

... ...
