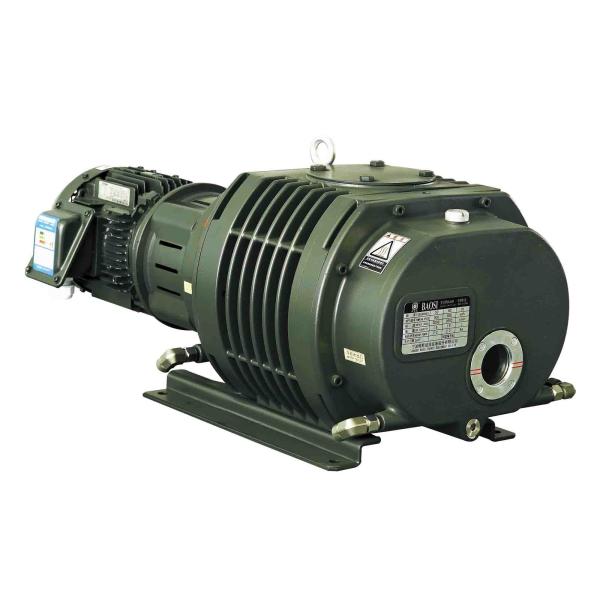

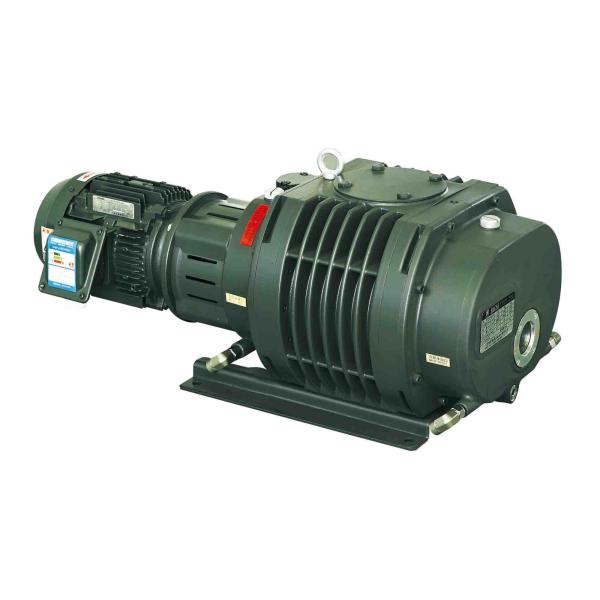

Aluminium Alloy Roots Blower Pump Painting Surface CE Certification
Aluminium Alloy Roots Blower Pump Painting Surface CE Certification
Aluminium Alloy Roots Blower Pump Painting Surface CE Certification
Aluminium Alloy Roots Blower Pump Painting Surface CE Certification
Specifications
Brand Name :
BSC
Model Number :
BSJ150L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 2730 per set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
Army Green
Pumping Rate :
600 m3/h(1000L/min)
Material :
Aluminium alloy
Features :
Corrosion resistance
G.W. :
95kgs
N.W. :
82kgs
Meas. :
102*50*50cm
Description

Army Green , 500m³/h Mechanical Booster Pump,Roots Pump BSJ150L

Description :

Roots vacuum pumps, which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the high clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ150L
Pumping Rate 50 Hz m³h-1 / Lmin-1 500/8330
60 Hz 600/10000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103

Ultimate Vacuum

 Pa/ mbar

0.04/4×10-4
Motor Power kW(hp) 2.2(3.0)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 1.6
Ambient Temp. ℃ 5~40
Weight -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

Aluminium Alloy Roots Blower Pump Painting Surface CE Certification

Dimensions:

Aluminium Alloy Roots Blower Pump Painting Surface CE Certification

Aluminium Alloy Roots Blower Pump Painting Surface CE Certification

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses

We provide you with individual support,we train you and we offer 24/7 service worldwide.
