IDSP36 Dry Scroll Vacuum Pump 56kg 36m³/h oil free pump
IDSP36 Dry Scroll Vacuum Pump 56kg 36m³/h oil free pump
Specifications
Brand Name :
BSC
Model Number :
IDSP36
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Ultimate Vacuum :
0.01mbar
Color :
blue grey
Speed :
10.5L/s
Material :
Al Alloy
Operating Temp. :
5~40℃
Dimensions :
574*335*368mm
Surface :
Painting
Weight :
56kgs
Description

36 m³/h 1800 rpm Vacuum Pump, Oil Free Dry Scroll Pump IDSP36

Description

The scroll pump is a new type of oil-free mechanical pump featuring simple construction, good sealing, and high vacuum capabilities. As a high-technology product, it has highly technical requirements in the design and manufacture. With the benefits of low consumption, long working-life, high reliability, and low noise, it has an incomparable advantage in the application of clean process and has popular use in the market. To meet the requirements of domestic and overseas customers, Baosi Vacuum developed the GVD and GSP series dry scroll pumps with excellent performance and high cost efficiency.

​Technical Data

Model IDSP36
Nominal rotational speed rpm 1800
Displacement m³h-1 36
Motor power W 1100
Voltage input V 1-ph, 100-120/200-240
Noise level dB (A) 56
Inlet flange - KF40
Exhaust flange - KF25
Max water vapour pumping rate gh-1 200
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 56
Cooling Method - Air cooled

Performance Curve

IDSP36 Dry Scroll Vacuum Pump 56kg 36m³/h oil free pump

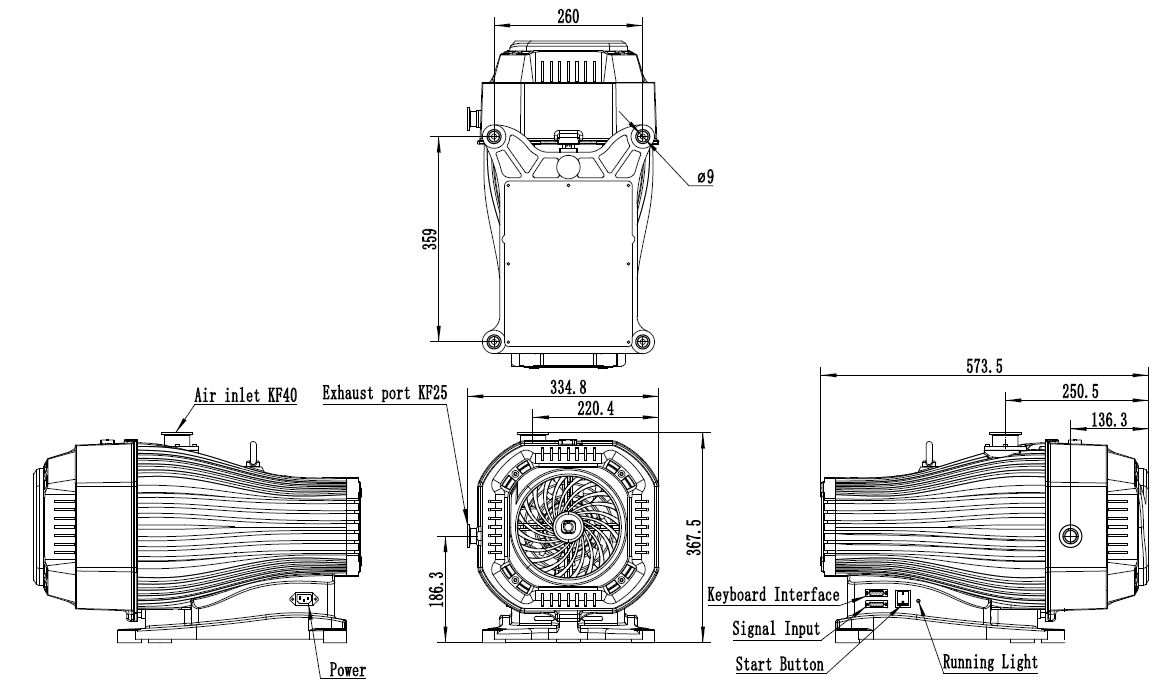

Dimensions

IDSP36 Dry Scroll Vacuum Pump 56kg 36m³/h oil free pump

Application

  • High-energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)
  • Electron microscope
  • Laboratory
