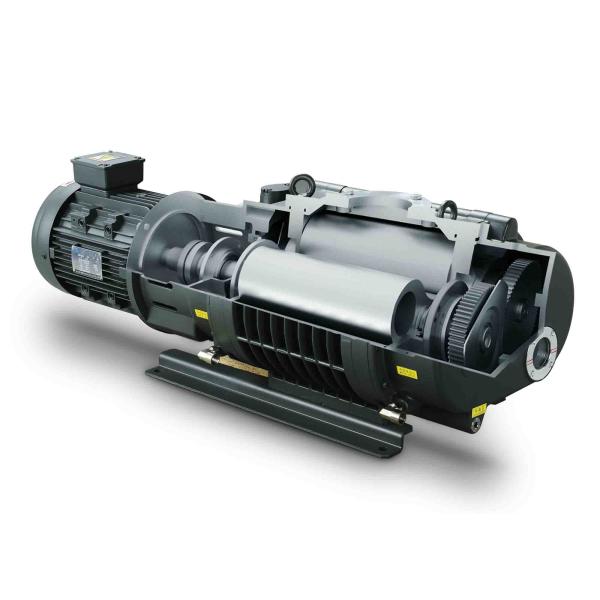

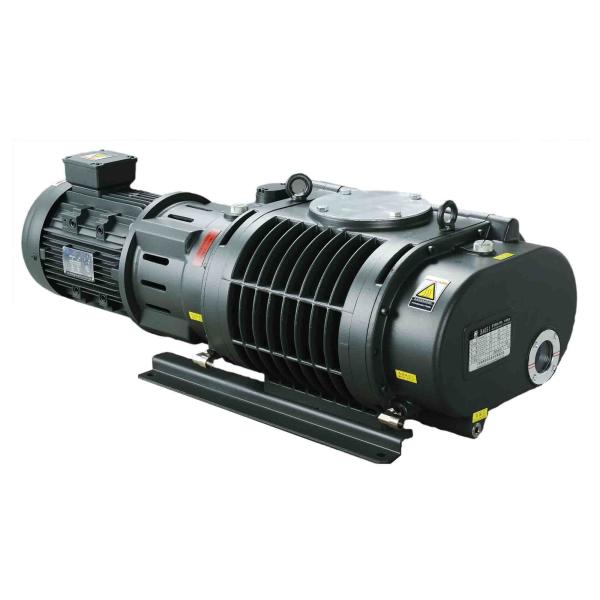

Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency
Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency
Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency
Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency
Specifications
Brand Name :
BSC
Model Number :
BSJ300L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD3420 per set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
Army Green
Pumping Rate :
1000 m³/h(16667L/min)
Material :
Aluminium alloy
Features :
Corrosion resistance
G.W. :
128kgs
N.W. :
115kgs
Meas. :
102*50*50cm
Description

1200 m³/h Army Green, 3.7kW Mechanical Booster Pump, Roots Pump BSJ300L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ300L
Pumping Rate 50 Hz m³h-1 / Lmin-1 1000/16667
60 Hz 1200/20000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103

Ultimate Vacuum

 Pa/ mbar

4×10-2
Motor Power kW(hp) 3.7 (5.0)
Inlet -- VG100
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 2.0
Ambient Temp. ℃ 5~40
Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency

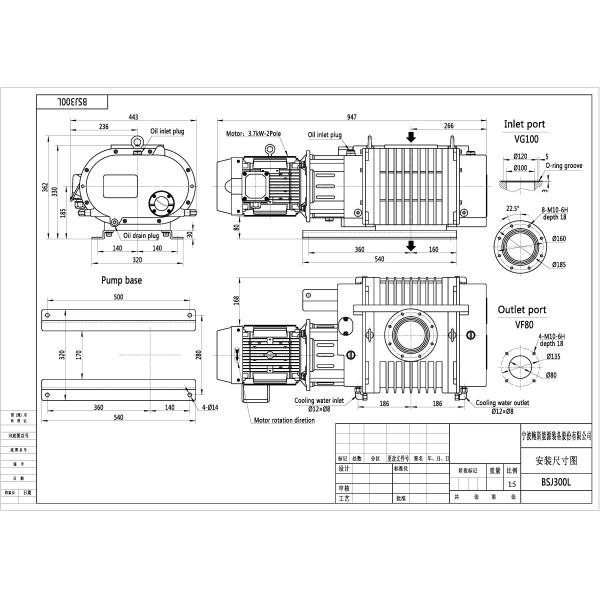

Dimensions:

Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency

Oilless Roots Vacuum Booster Pump Fast Corrosion Resistance Energy Efficiency

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses

We provide you with individual support, we train you and we offer 24/7 service worldwide.
